Fully Automatic Gelatin Soft Gel Encapsulation Machine PLC Control

Fully Automatic Gelatin Soft Gel Encapsulation Machine PLC Control

Gelatin Soft Gel Encapsulation Machine

Automatic Soft Gel Encapsulation Machine

PLC Soft Gel Encapsulation Machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

LTRJ-110

Contact Us

Request A Quote
Product Details
Rotary Speed Of Die Roll:
0-7rpm
Difference Among Filling Volume:
±2%
Power For Whole Machine:
2.3KW
Pillar Quantity:
8
Main Body Sizes:
1680×1100×1820 Mm
Weight Of Whole Machine:
600Kg
Application:
Capsule,softgel Manufacturing
Type:
Softgel Encapsulation
Product Description

LTRJ-Series automatic soft gelatine encapsulation machine is a soft capsule production equipment developed by our company on the basis of the combination of our company's soft capsule technology experiences for many years. This equipment is of advanced technology, simple and beautiful appearance, as well as stable technological performance.This product has passed provincial-level appraise of new product and the certification of EU, adopted two items of patent technology in manufacturing with exquisite workmanship.Softgel encapsulation machine can quantificationally inject the oil, mixing suspenion and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the softgel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favoured by more and more manufacturers and used in the fields of medicine, health products, cosmetic and paintball and so on.

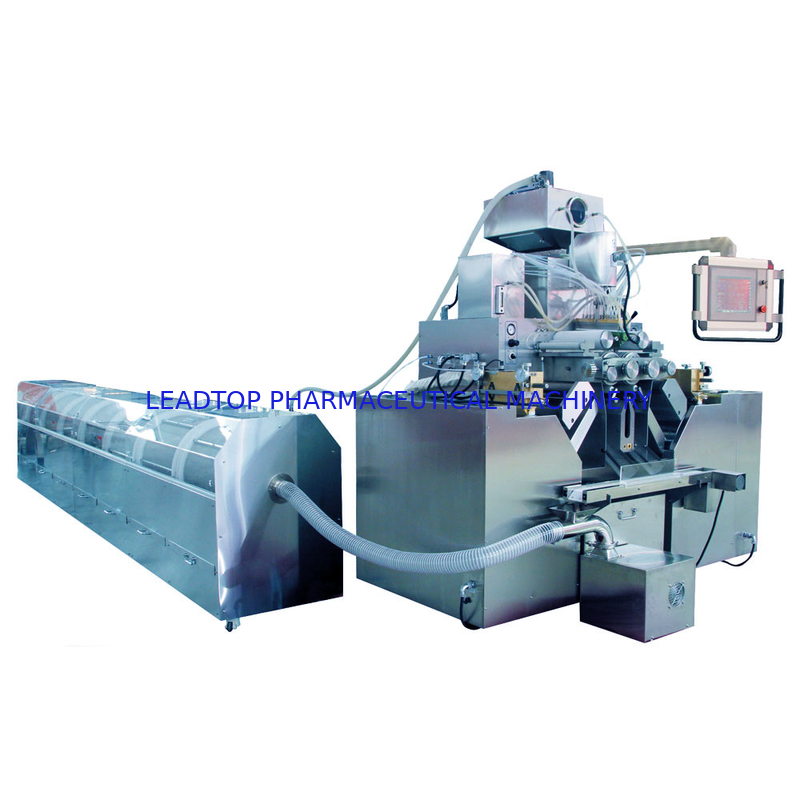

Fully Automatic Gelatin Soft Gel Encapsulation Machine PLC Control 0

Feature

1. The main shaft left and right holes are machined by using the boring mill imported from Switzerland, so that the runout and parallelism of the left and right main shafts are up to the international advanced level.

2. The conveyer belt mode is used for the outlet port, (not heat with heating tubes). so that the soft capsules will not be piled up at the outlet port.

3. Micro-quantity lubrication technology is adopted for gelatine skin lubrication, realizing that the soft capsules are free from cleaning.

4. The compulsory cold air is designed at two sides of soft capsule outlet areas, as a result, the net gelatine is not easy to wind around the pill dropping unit.

5. PLC control is adopted for the adjustment of loading quantity; the customer can realize the adjustment of medicine loading quantity by regulating the specific weight of the feeding materials, and to make it simpler to adjust the loading quantity

6. The pill- pressing operation process is simple and reliable because the use of pneumatic clamping system.

7. Electric-driven lifting spray unit,it can stop at any position according to needs, so as to reduce the worker's labor intensity

8. The rotating speeds of each gelatin skin roller and the main shaft are synchronous, as a result, the operation is simple instead of complicated adjustment of synchronization during operation.

9. Optimized design of driving system reduces greatly the noise of whole equipment.

10. With the precision regulation of the gelatin box opening and digital display. it is more convenient, quickly and accurately to adjust the thickness of gelatin film.

11. The injector is heated by water-bathing, which makes the temperature of it more even and improves the capsule seam absolutely.

12. The hopper is designed to keep the temperature. Therefore, it is easier to press the soft capsules with mixed and suspension liquid and automatic technology is adopted tor feeding.

13. Cylindrical spout design makes the forming of suspension liquid soft capsule more beautiful.

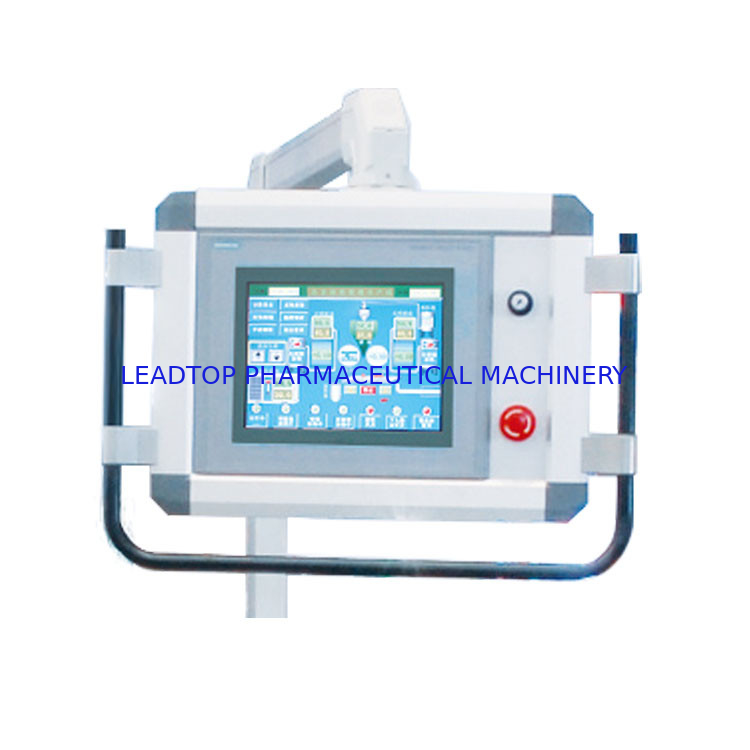

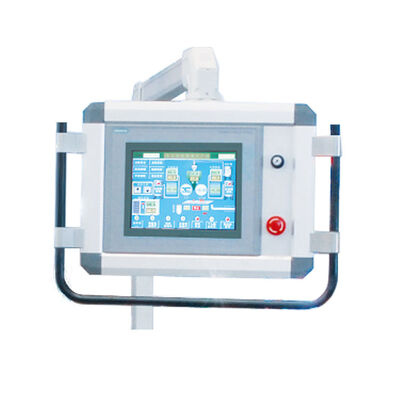

14. The PLC and touch screen from the German Siemens Company is adopted for the electronic control system. The PLC and touch screen from the German Siemens Company is adopted for the electronic control system. All frequency converters from German Siemens are used; all relays from French Schneider are used; all plug socket components from German Weidmuller are used. Therefore the electronic control system is more stable and durable.

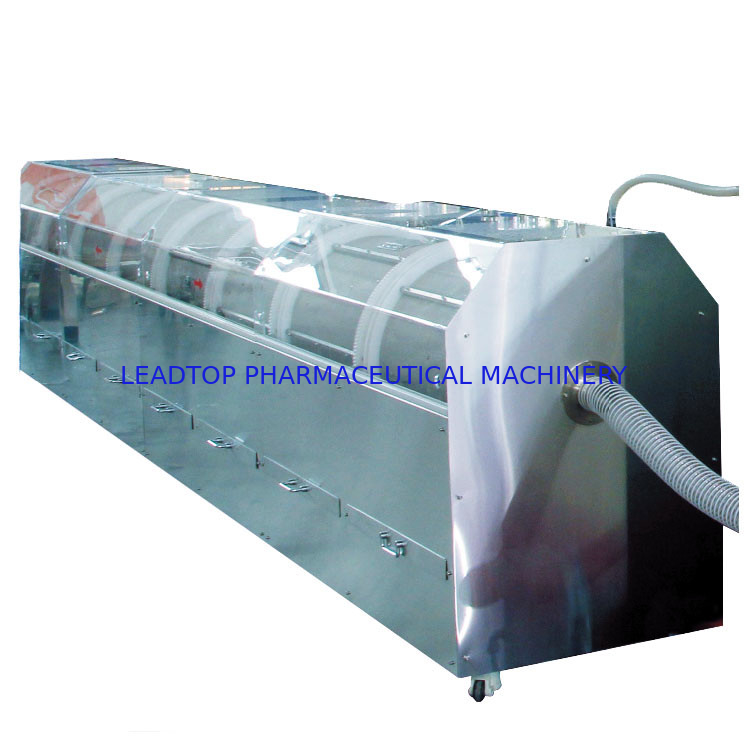

Fully Automatic Gelatin Soft Gel Encapsulation Machine PLC Control 1



Technical Parameters


ITEM/MODEL LTRJ-110
Rotary speed of die roll 0-7rpm
Supplying Volume for flow single-pillar pistol 0-1ml
Difference among filling volume ±2%
Power for whole machine 2.3KW
Pillar quantity 8
Main Body sizes 1250×900×1820
Weight of whole machine 600Kg

Work Process
The working principles: put the oil, gelatin-insoluble liquid, paste, plaster inject into between two gelatin skin quantificational, through the two roller dies and press and cutting into various shape soft capsules, The product is widely used in pharmaceutical, cosmetic, health food and pesticide etc.
Fully Automatic Gelatin Soft Gel Encapsulation Machine PLC Control 2

Product
Fully Automatic Gelatin Soft Gel Encapsulation Machine PLC Control 3
