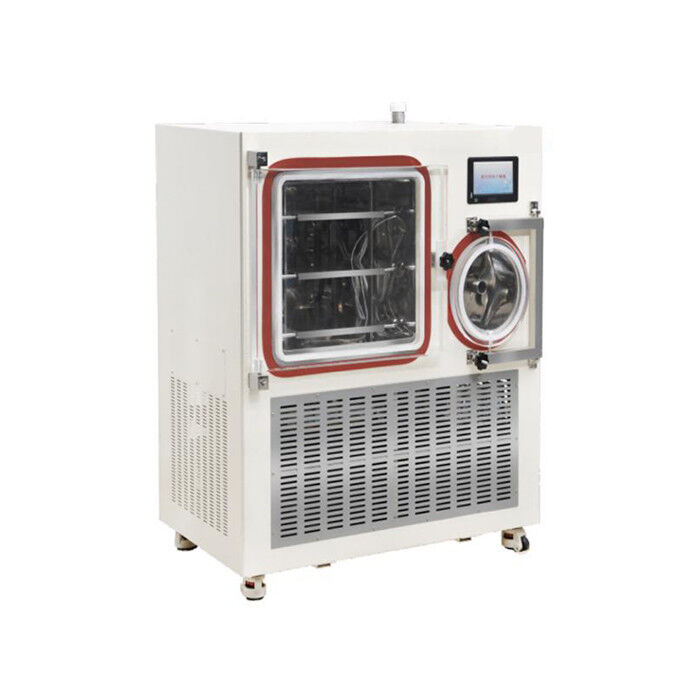

Pharmaceutical Freeze Lyophilization Machine Gland Type Pilot Freeze Dryer

Pharmaceutical Freeze Lyophilization Machine Gland Type Pilot Freeze Dryer

Pharmaceutical Freeze Lyophilization Machine

10L Load Freeze Lyophilization Machine

Programmable Freeze Lyophilization Machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE

Model Number:

LTDG-CX Series

Contact Us

Request A Quote
Product Details
Shelf Temp (℃):
-50 To 70
Final Condenser Temp (℃):
-80
Freeze Drying Area (m2):
0.24-2
Vacuum Degree (Pa):
<10
Condenser Capacity (Kg/24h):
6.5-30
Qty Of Shelf:
2+1 To 6+1
Distance Between Shelves(mm):
90-145
Liquid Material Loading Capacity (L):
4.5-40
Product Description

Easy Operate Lyophilization Machine From China Pharmaceutical Freeze Dryer Machine



Pilot freeze dryer is a small in-situ freeze-drying equipment. It is applied not only in pharmaceutical pilot workshop and small batch production but also in food or medicinal freeze-dry-ing process. Situ freeze-drying technology is one of advanced international constructer design which avoid the contamination during materials transfer and realize the dry sublimation automatically.Pilot freeze dryer is with rack heating programmable function and memory freeze-drying curve which convenient users to get the freeze-drying production technology. lt is divided into standard type and gland type.

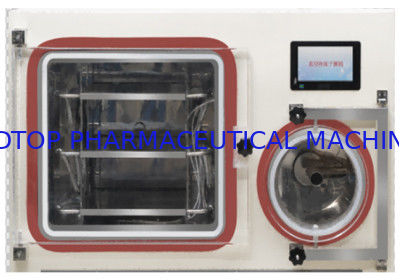

Pharmaceutical Freeze Lyophilization Machine Gland Type Pilot Freeze Dryer 0



Technical Parameters



Model
LTDG-20S
LTDG-30T
LTDG-50S
LTDG-50T
Type
Standard
Top-press
Standard
Top-press
Shelf temp (℃)
-50 to 70
Final condenser temp (℃)
-80
Vacuum Degree (Pa)
<10
Freeze drying area (m2)
0.24
0.3
0.5
Condenser capacity (Kg/24h)
6.5
10
Shelf specification (L*W*H mm)
300*400*20
300*450*20
Qty of shelf
2+1
3+1
4+1
Distance between shelves(mm)
145
90
Liquid material loading capacity (L)
4.5
7
10
Temperature uniformity (℃)
±1
Cooling mode
Air cooling
Electric heater defrost
Y
Cap seal method
N
Hydraulic pressure
N
Hydraulic pressure
Penicillin bottle Φ22
468
702
1040
Penicillin bottle Φ16
864
1296
1944
Penicillin bottle Φ12
1584
2376
3456
Power supply (V/Hz)
220V/50Hz,60Hz
220V/50Hz,60Hz
220V/50Hz,60Hz,
380V/50Hz,60Hz
Exterior dimension (WxDxH mm)
1200*750*1250/1600
1200*850*1500/1850

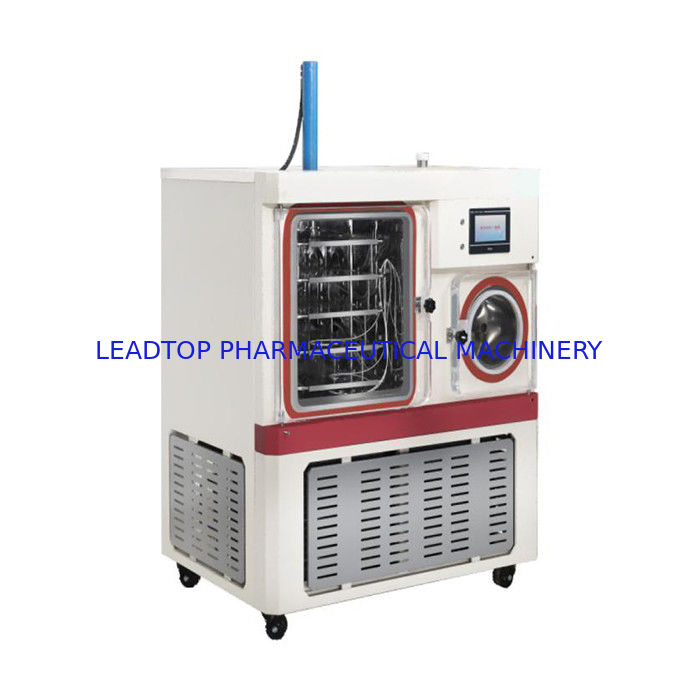

Pharmaceutical Freeze Lyophilization Machine Gland Type Pilot Freeze Dryer 1
Model
LTDG-100S
LTDG-100T
LTDG-200S
LTDG-200T
Type
Standard
Top-press
Standard
Top-press
Shelf temp (℃)
-50 to 70
Final condenser temp (℃)
-80
Vacuum Degree (Pa)
<10
Freeze drying area (m2)
1
2
Condenser capacity (Kg/24h)
15
30
Shelf specification (L*W*H mm)
550*480*20
600*600*20
Qty of shelf
4+1
4+1
6+1
4+1
Distance between shelves(mm)
90
100
Liquid material loading capacity (L)
20
40
Temperature uniformity (℃)
±1
Cooling mode
Air cooling
Electric heater defrost
Y
Cap seal method
N
Hydraulic pressure
N
Hydraulic pressure
Penicillin bottle Φ22
2016
4100
Penicillin bottle Φ16
3944
7800
Penicillin bottle Φ12
7020
14400
Power supply (V/Hz)
380V/50Hz,60Hz
380V/50Hz,60Hz
Exterior dimension (WxDxH mm)
1500*850*1600/1950
1500*850*1600/1950

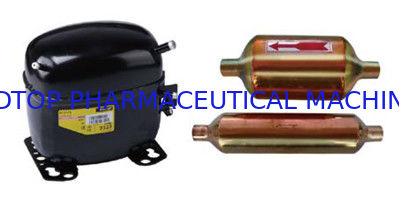

Pharmaceutical Freeze Lyophilization Machine Gland Type Pilot Freeze Dryer 2

If you have other models that need to be consulted, you can send an inquiry to us!
