Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE
Model Number:
LTDG-CX Series
Contact Us

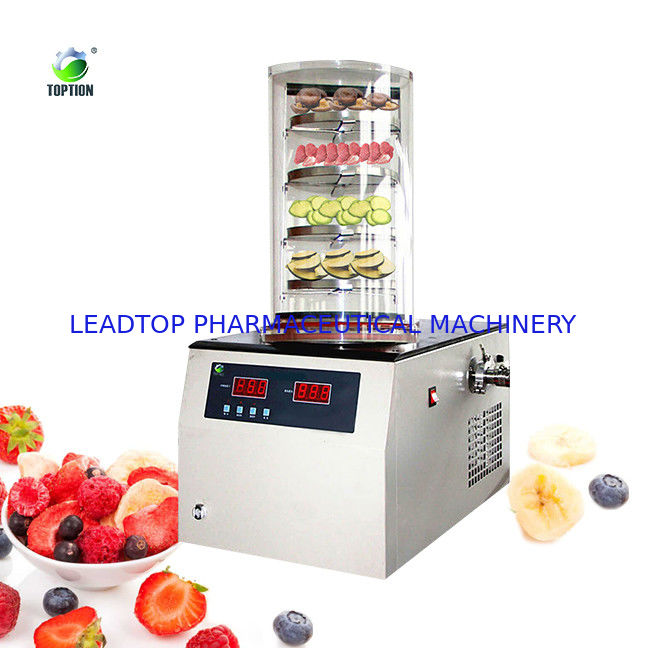

Vacuum Freeze Dryer Manufacturers Pharmaceutical Powder Freeze Dry Machine For Sale
freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc. Goods are easier for long-term preservaction after freezing-drying processing, they can be restored to the original state and maintain its chemical and biological characteristics after being watered.
Technical Parameters
| Model | LTDG-10S | LTDG-10T | LTDG-10P | LTDG-10PT |
| Type | Standard chamber |
Stoppering chamber |
Standard chamber with 8 port manifold |
Standard stoppering |
| chamber with 8 port manifold |
||||
| Final condenser temp (℃) | -55 | |||
| Vacuum Degree (Pa) | <10 | |||
| Condenser volume (L) | 9 | |||
| Freeze drying area (m2) | 0.12 | 0.09 | 0.12 | 0.09 |
| Ice condenser capacity (Kg/24h) | 3 | |||
| Qty of shelf | 4 | 3 | 4 | 3 |
| Material loading capacity/shelf (ml) | 300 | 300 | 300 | 300 |
| Material loading capacity (ml) | 1200 | 900 | 1200 | 900 |
| Freeze drying time (h) | 24 | 24 | 24 | 24 |
| Manifold | / | / | 8 pieces | 8 pieces |
| USB Interface | Y | Y | Y | Y |
| Drying Chamber(standard) | Transparent acrylic | |||
| Vacuum Pump | Speed: 2L/S | |||
| Control System | Microprocessor, touch screen | |||
| Power supply (V/Hz) | 220V/50Hz,60Hz | |||
| Exterior dimension (WxDxH mm) | 582*541*374/684 | |||
| Penicillin bottle Φ22 | 260 | 195 | ||
| Penicillin bottle Φ16 | 480 | 360 | ||
| Penicillin bottle Φ12 | 920 | 690 | ||
Product details
1. Imported compressor, high capability of water-capture, low noise.
2. Match the green environmental protection of international standard.
3. Big openings of cold trap, without coil pipe inside, have pre-freeze function.
4. Liquid crystal display, English(Chinese) interface, display drying curve.
5. Small volume, convenient operation.
6. Transparent bell-cap drying room is safe and visual.
7. The pre-cooling shelf can be used as draft tube, so it can accelerate the speed of drying.
8. International standard vacuum pump interface may connect varied vacuum pump.
9. Cold trap and operation panel are all stainless steel, corrosion-resistant and bright.
10. Communication interface is optional.
11. Valve with nitrogen is optional.
12. Dual-machine cascade refrigeration is optional, technology is mature and temperature is low(apply -80℃ device).
