Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE
Model Number: LTRG-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 15Set/Month
Get Best Price Contact Now

Detail Information

Automatic Grade: Automatic Voltage: 220/380V,customized
Usage: Toothpaste,facial Cleanser,foam,cream Filling Speed: 40-60 Pcs/min
Motor: 1.5kw Control System: PLC Control
Weight: 1000KG Tube Diameter: Dia.5mm-60mm
High Light:

Dia 60mm Tube Filler Sealer

,

Automatic Positioning Tube Filler Sealer

,

250ml/Piece Tube Filling Sealing Machine

Product Description

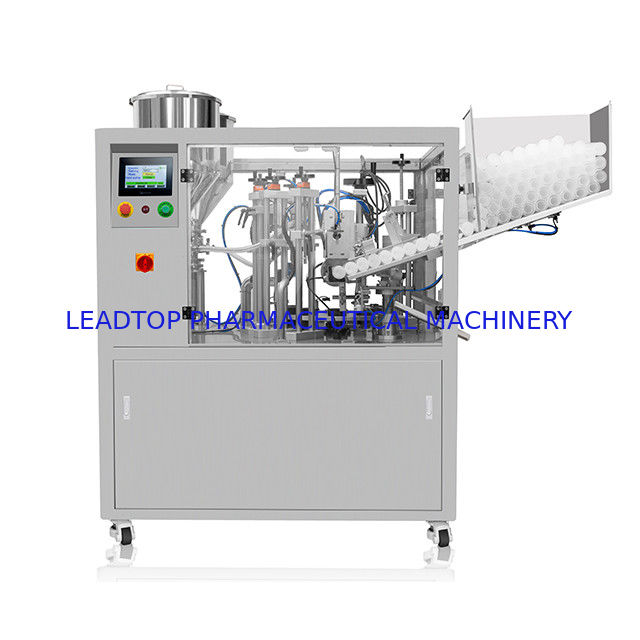

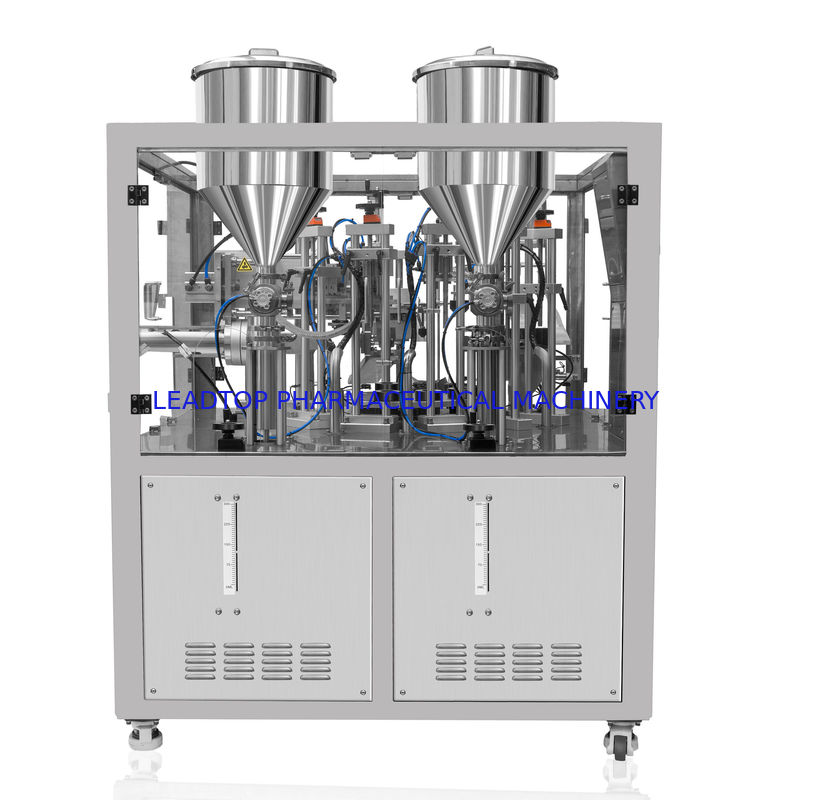

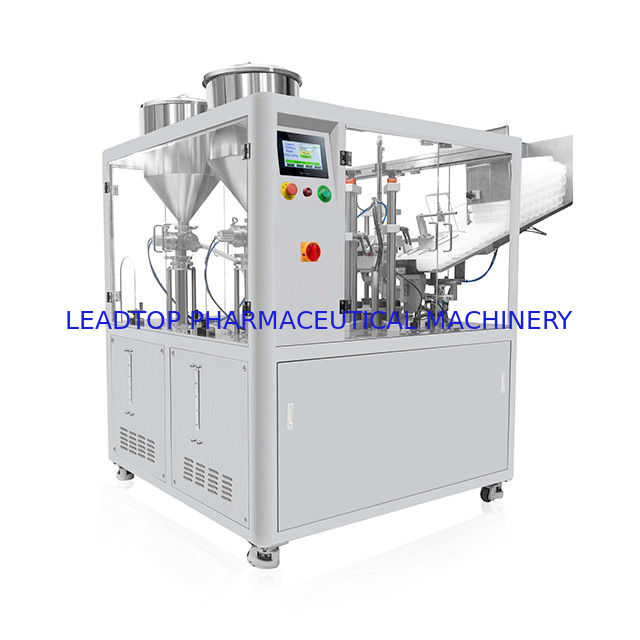

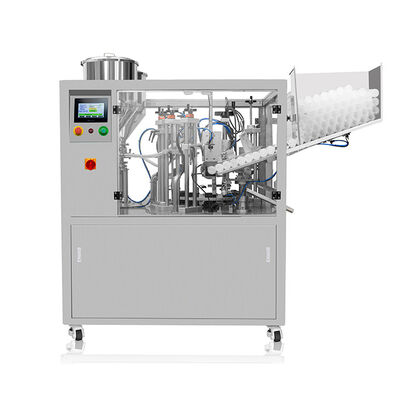

Dia 60mm Automatic Tube Filling And Sealing Machine For Foam Cream

Cosmetic Cream Toothpaste Soft Tube Filling Sealing Machine



Automatic Tube Filling & Sealing Machine are smoothness of operation, easy cleaning, easy size change over and simple maintenance procedures. The process of tube sealing machine eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic sealing with the proper time setting and pressure is the fastest most reliable method for a variety of tube material sealing.



Feature

1. Easy to operate and maintain.
2. Automatic positioning, filling, welding, cutting and trimming, printing code in one time.
3. Stainless steel machine body, strong and beautiful looks,
4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
5. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
6. Ultrasonic frequency can meet international standard, no harmful to human being or environment
7. Can be work in time, not need wait the heat time .







Technical Parameter

Tube Material
Plastic tube, laminated tube
Tube Diameter
Φ5mm-Φ60mm
Tube Length
50-300mm (customizable)
Filling Volume
5-250ml/piece (Adjustable)
Filling Accuracy
≤±1%
Product Capacity (Pcs/min)
30-50 0.1m3/min
Air Supply
0.55-0.65Mpa
Motor Power
1.2kw (380V/220V 50Hz)
Heat Sealing Power
5kw

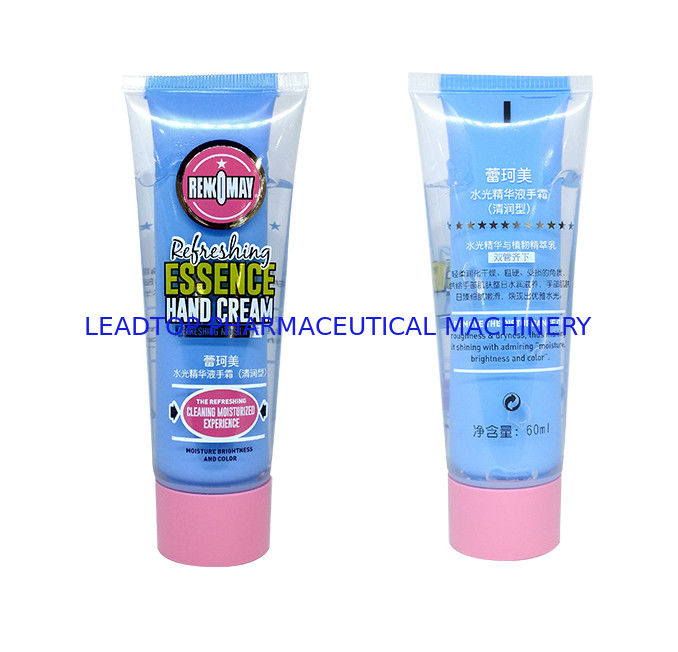

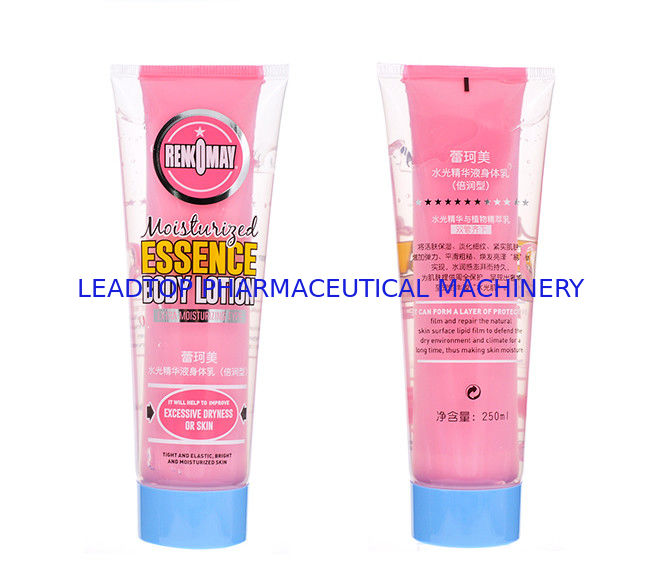

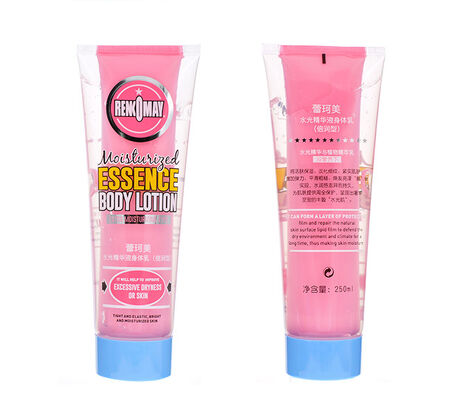

Product Application

Dia 60mm Automatic Tube Filling And Sealing Machine For Foam Cream 0



Machine details

Dia 60mm Automatic Tube Filling And Sealing Machine For Foam Cream 1

Name: Mark Sensor
Brand: Pannasonic
Original: Japan
Tube Orientation
(R · G · B) LED in high-precision mode, high resolution of R / G · B ratio of reflected light through high-resolution by using built-in 12bitA / D converter can achieve high resolution of 1 / 4,000 Accuracy judgment, determine the color of the color. But also can effectively detect the color around those with patterns and patterns such as film.



Dia 60mm Automatic Tube Filling And Sealing Machine For Foam Cream 2

two way sealing stations ,can make the end of tubes sealing result are good and beautiful

Name: Sealing Horn
Brand: HX
Made of aerospace aluminum
High precision
Sealing and Printing at the same time
Can be Filled date code ( Arabic numerals or English letter)

Free to change date code

Dia 60mm Automatic Tube Filling And Sealing Machine For Foam Cream 3
Name: dividing rule

Assist to adjusting height of each working station

according to tube size


Dia 60mm Automatic Tube Filling And Sealing Machine For Foam Cream 4

Name: Working Station

Qty: 10 working stations



Tube Holder Made by POM,more durable for using and changing







Dia 60mm Automatic Tube Filling And Sealing Machine For Foam Cream 5

Name: Two-way cutter
For tube end trimming
Made by 304 stainless steel
No burrs after trimming





Dia 60mm Automatic Tube Filling And Sealing Machine For Foam Cream 6

Name :intenlligent digtal ultrasonic generator

Brand :HENGXING



It can tracking the ultrasonic frequency automatic accoridng to the differnt material tube material ,do not need adjust by manual
