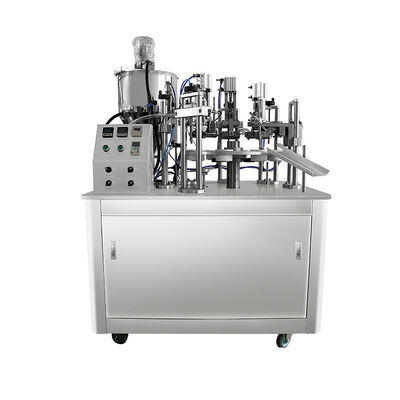

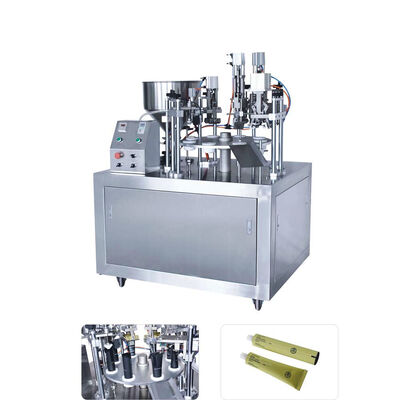

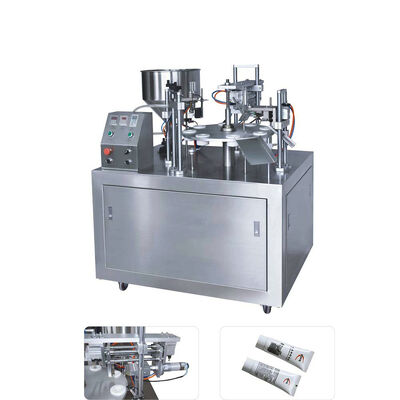

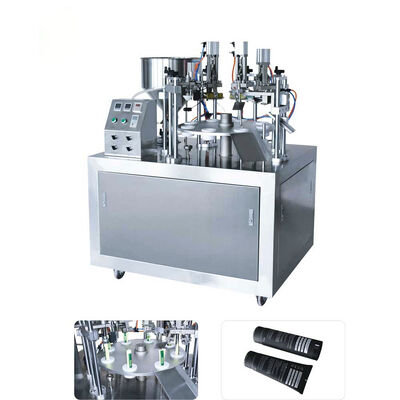

Plastic Toothpaste Tube Filler And Sealer 600pcs/H AC220V

Plastic Toothpaste Tube Filler And Sealer 600pcs/H AC220V

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE
Model Number: LTRG-SA Series

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 15Set/Month
Get Best Price Contact Now

Detail Information

Automatic Grade: Semi-automatic Voltage: AC 220V,single Phrase 50/60HZ
Usage: Toothpaste,facial Cleanser,foam,cream Machinery Capacity: 600-1100 Pcs/hour
Packaging Material: Plastic Filling Accuracy: ±1ml
Weight: 150kgs Warranty: 5 Years
High Light:

Toothpaste Tube Filler And Sealer

,

Plastic Toothpaste Tube Filler And Sealer

,

Tube Filler And Sealer 600pcs/H

Product Description

Plastic Toothpaste Tube Filler And Sealer 600pcs/H AC220V

Plastic Toothpaste Tube Filler And Sealer 600pcs/H



The product is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes and aluminum composite tubes. It is widely applied in daily chemical industry, medicine, food, etc.
Features: It has such features as firm sealing, high speed, no damage to the surface at the sealing place, beautiful and neat sealing shape. The machine can be equipped with filling heads of different specifications to meet the filling requirements of different viscosity. The organic glass dust cover is also provided.

Feature

This machine adopts piston mode to achieve precise filling and the measuring error is less than 1%. It has no liquid leak and its speed is adjustable. It also can be bidirectionally folded which is the most advanced horseshoe mechanism. It produces good sealed tails and its operation is simple. Its filling, sealing and printing are finished at one time. It thoroughly solves the problem of wiredrawing commonly existing in the producing process and the common fault of leaking at the tail after sealed. As for the special industry, it needs to be added with the gas protection device to prevent the solidification phenomenon occurring during transportation and storage process after the materials are sealed.



Work process
Insert the mental hose in the socket on the indexing aluminum plate by hand and use the indexing mechanism for the transmission and location and photoelectric detection and the metering pump for quantitative filling. The tail sealing and printing are finished at one time and the finished products are automatically pushed out.



Product Application

This machine is used for the products’ packing in the fields of medicine, daily chemical products, food and fine chemical industry, for example, the filling and tail-sealing for the ointment, hair dyes, pigments, toothpastes, shoe polishes, and adhesives.

Plastic Toothpaste Tube Filler And Sealer 600pcs/H AC220V 0







Technical Parameter



Data sheets
Details
Max filling speed
600~1100pcs/hour
Applicable tube diameter size
Φ10≤D≤Φ50mm
Applicable bottle height size
50≤H≤200mm
Filling accuracy
±1ml
Voltage
AC220V,single phrase, 50/60HZ
Power
2KW
Working pressure
0.6MP
Hopper volume
40L
Net Weight
150kgs
Machine size
860*680*1550mm
Ultrasonic frequency
20khz
Filling capacity
6-60,10-120,25-250ml
