Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE
Model Number: LTRG-SA Series

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 15Set/Month
Get Best Price Contact Now

Detail Information

Automatic Grade: Semi-automatic Voltage: AC 220V,single Phrase 50/60HZ
Usage: Toothpaste,facial Cleanser,foam,cream Machinery Capacity: 600-1100 Pcs/hour
Packaging Material: Plastic Filling Accuracy: ±1ml
Weight: 150kgs Warranty: 5 Years
High Light:

Ultrasonic Tube Filling Sealing Machine

,

Pharmaceuticals Tube Filler Sealer

,

1100pcs/h Tube Filling Sealing Machine

Product Description

Ultrasonic Automatic Tube Filling And Sealing Machine For Cosmetic Ointment

Semi automatic ultrasonic laminate tube filling sealing machine is widely applied for glue, shoe polish, ketchup tube, ointment, paint tube, tooth paste and so on.



Products Specifications
1. Tube feed by hand.
2. Suit for laminate tube, plastic composite tube and aluminum plastic composite tube sealing.
3. This machine uses the ultrasonic principle to weld and seal thetailof the tube. When welding, it does not add any adhesive, filler or solvent, and does not consume a lot of heat source.
4. It has the advantages of simple operation, fast welding speed, high welding strength and high production efficiency.
5. This machine is widely used in toothpaste, cosmetics, pharmaceuticals, food, industrial supplies and other types of tube sealing.

Feature

1. Easy to operate and maintain.
2. Automatic positioning, filling, welding, cutting and trimming, printing code in one time.
3. Stainless steel machine body, strong and beautiful looks,
4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
5. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
6. Ultrasonic frequency can meet international standard, no harmful to human being or environment
7. Can be work in time, not need wait the heat time .



Advantages
1.It adopts Ultrasonic sealing machine , good for difference products, Such as food, medical, cosmetic products. It will not hurting the products.
2. Overload protection, phase separation protection, power-fail protection.
3. Large Ultrasonic output power to ensure the sealing quality of various tube size and material.
4. With tube end trimming
5. Easy change working mold for difference tube diameter
6. Adjustable tube length
7. Machine include a gear pump filler( Good filling precision ±1)



Product Application

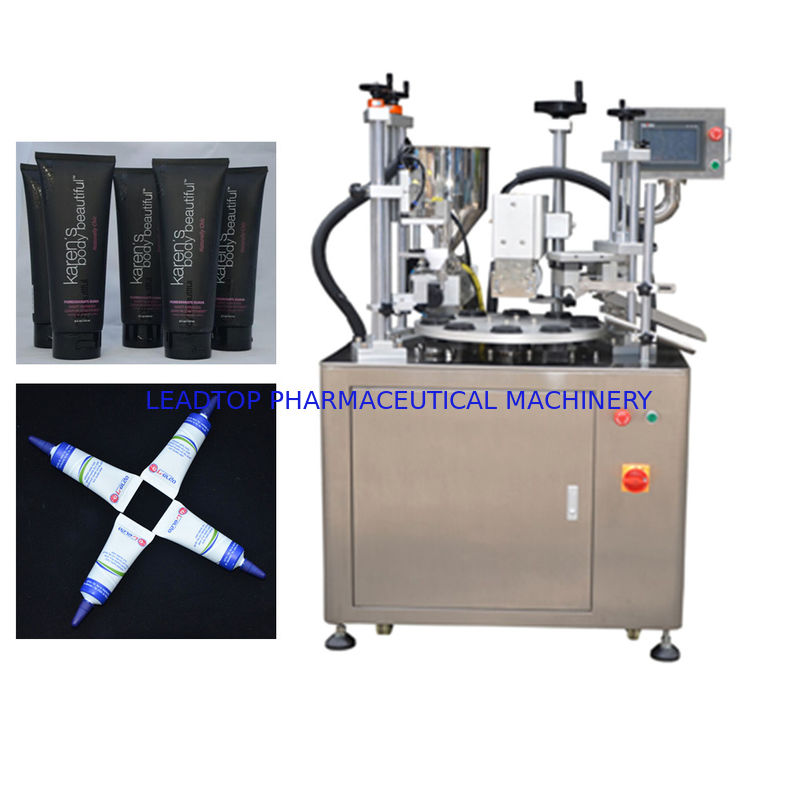

Ultrasonic Automatic Tube Filling And Sealing Machine For Cosmetic Ointment 0

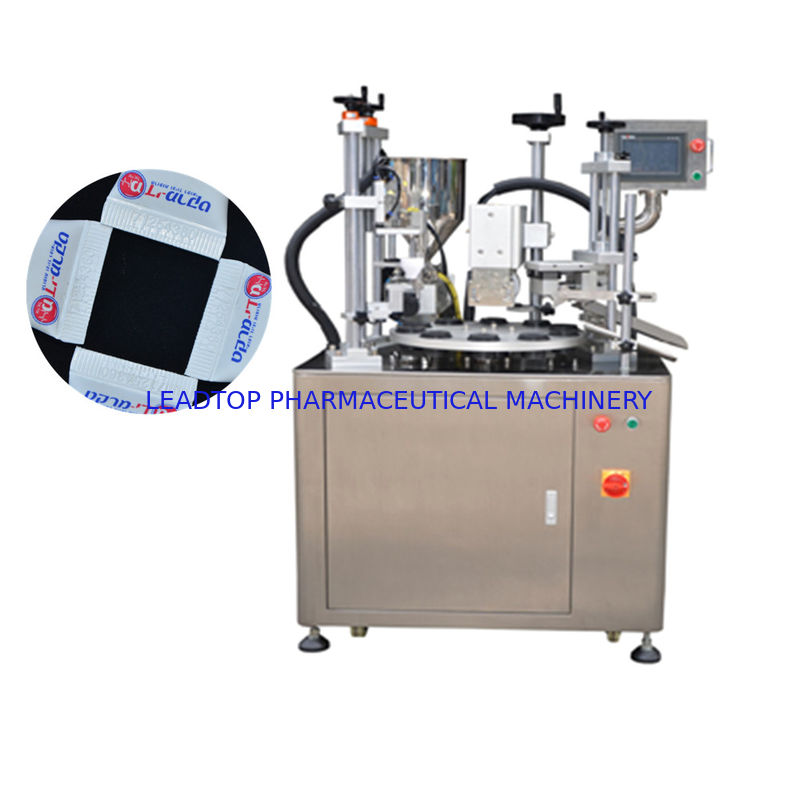

Ultrasonic Automatic Tube Filling And Sealing Machine For Cosmetic Ointment 1







Technical Parameter



Data sheets
Details
Max filling speed
600~1100pcs/hour
Applicable tube diameter size
Φ10≤D≤Φ50mm
Applicable bottle height size
50≤H≤200mm
Filling accuracy
±1ml
Voltage
AC220V,single phrase, 50/60HZ
Power
2KW
Working pressure
0.6MP
Hopper volume
40L
Net Weight
150kgs
Machine size
860*680*1550mm
Ultrasonic frequency
20khz
Filling capacity
6-60,10-120,25-250ml



Machine Details

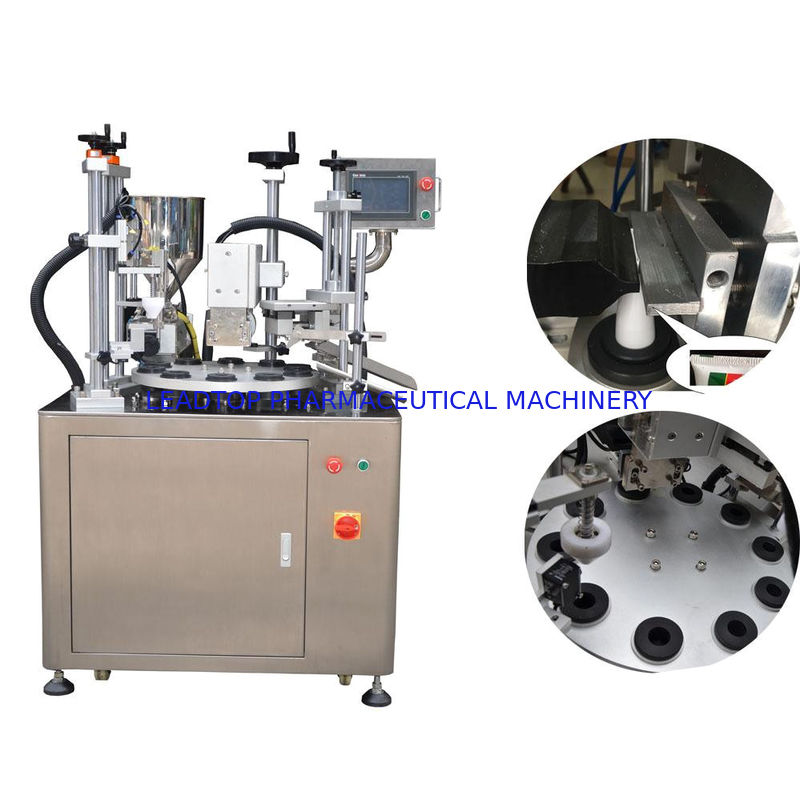

Ultrasonic Automatic Tube Filling And Sealing Machine For Cosmetic Ointment 2

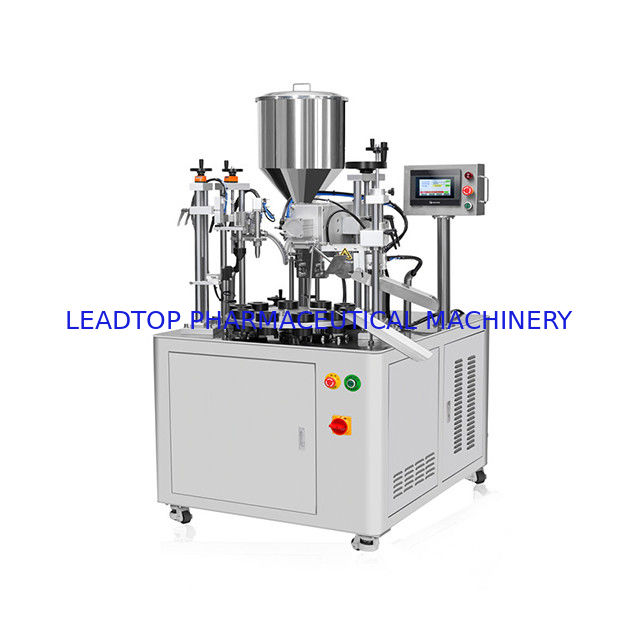

Ultrasonic Automatic Tube Filling And Sealing Machine For Cosmetic Ointment 3

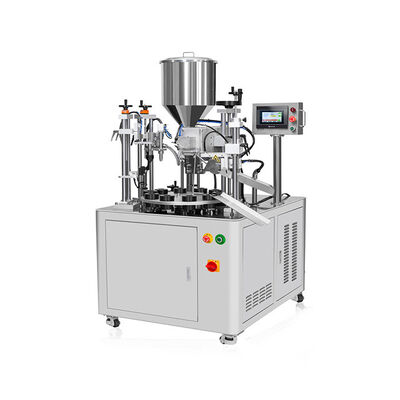

Ultrasonic Automatic Tube Filling And Sealing Machine For Cosmetic Ointment 4

Ultrasonic Automatic Tube Filling And Sealing Machine For Cosmetic Ointment 5
