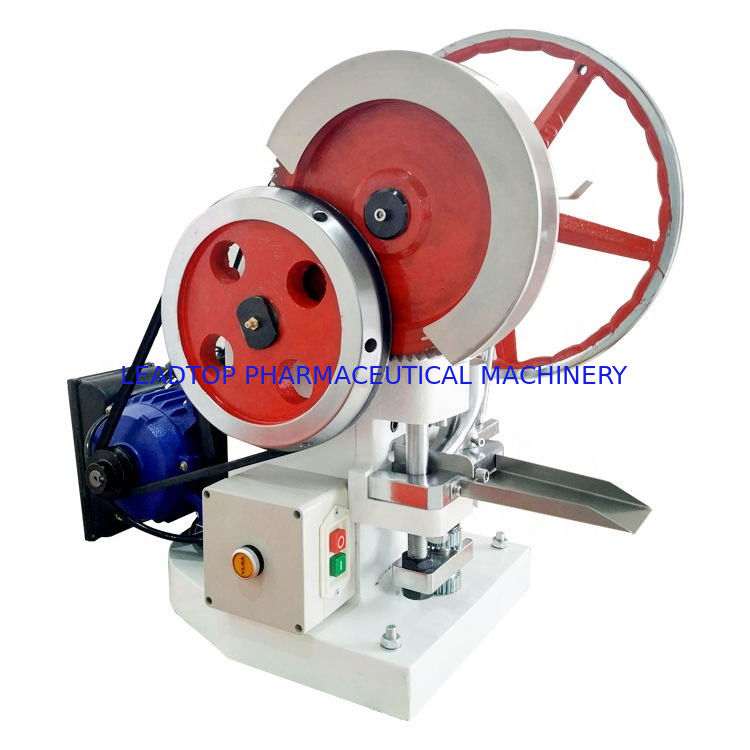

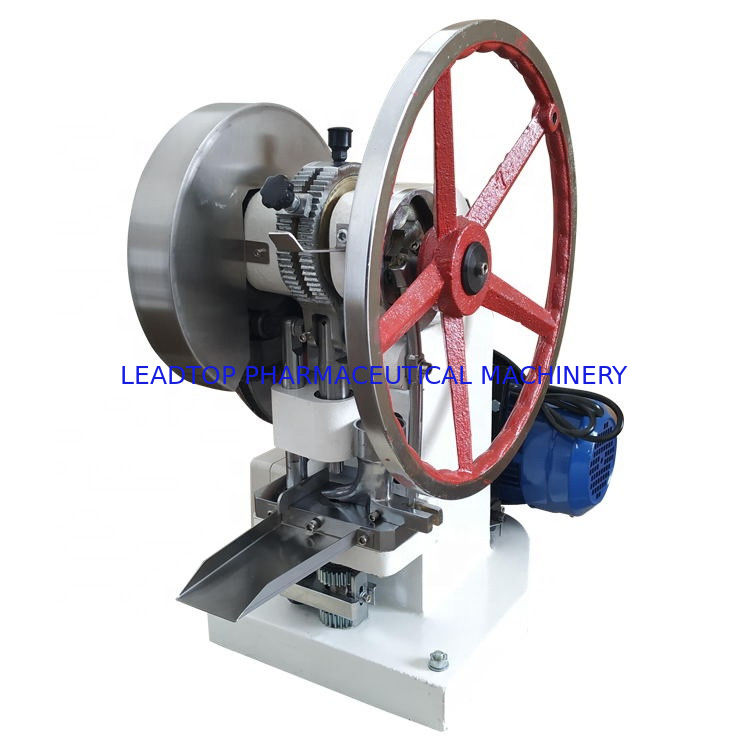

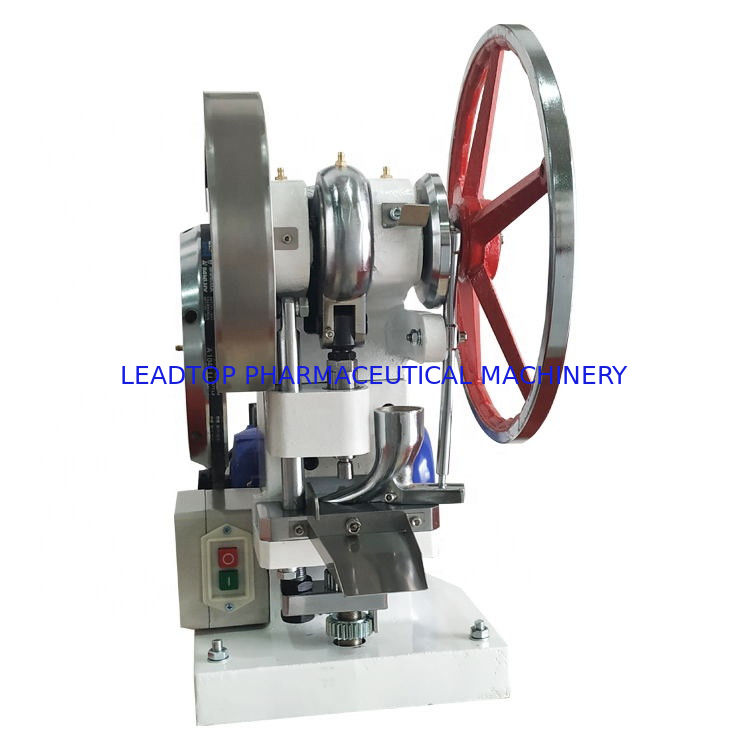

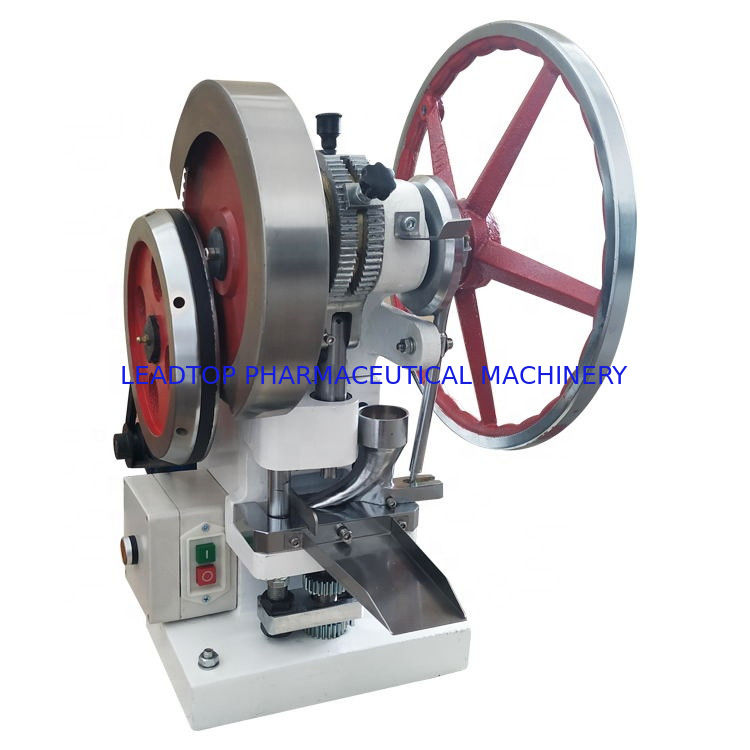

40KN Pharmaceutical Single Punch Tablet Press With Diameter 25mm

40KN Pharmaceutical Single Punch Tablet Press With Diameter 25mm

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE
Model Number: ZP-31D

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: In 25 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Capacity: 45,000-110,000tablets/hour Material Consist: Painted Matel
Max. Thickness: 6mm Max.Diameter: 12mm
Max.Pressure: 40KN Weight: 60KG
Power: 2.2Kw Warranty: 5 Years
High Light:

40KN Pharmaceutical Single Punch Tablet Press

,

Diameter 25mm Single Punch Tablet Press

,

2.2Kw Single Punch Tablet Press

Product Description

40KN Pharmaceutical Single Punch Tablet Press With Diameter 25mm

40KN Pharmaceutical Single Punch Tablet Press With Diameter 25mm



The machine is suitable for the industries of Chemical, Foodstuff, Electronic and etc. It is used of pressing medicinal tablets, catalysts, sugar tablets, Calcium tablets, Coffee tablets, Powder Metallurgical, Electronic elements and various tablets of pesticide and fertilizer. etc. in such small-batch production, laboratory and hospital fields. Meanwhile, that machine also can press various abnormity and normal tablet, and press the tablets in two sides with printing as well.

40KN Pharmaceutical Single Punch Tablet Press With Diameter 25mm 0



Main Technical Parameters

Model
TDP-1.5
TDP-5
TDP-6
Max. Pressure
1.5T
5T
6T
Max. Dia.
Round: Φ12
Round: Φ20
Round: Φ25
Max. Filling Depth
11mm
18mm
18mm
Max. Thickness
6mm
7.5mm
7.5mm
Capacity
5000pcs/hour
4500pcs/hour
3000pcs/hour
Motor Power
550W
750
800
Overall Dimension
580×450×625 mm
650×440×650mm
750×380×659mm
Weight
100kg
120kg
165kg





Machine Details

40KN Pharmaceutical Single Punch Tablet Press With Diameter 25mm 1

Feeding Port
Smooth, Clean, No Pollution To Raw Materials

40KN Pharmaceutical Single Punch Tablet Press With Diameter 25mm 2

Handwheel
It Can Be Used To Debug The Machine, Simple And Convenient.

40KN Pharmaceutical Single Punch Tablet Press With Diameter 25mm 3

Mould
If You Need To Compress Tablets Of Different Shapes And Specifications, The Mold Can Be Replaced.



40KN Pharmaceutical Single Punch Tablet Press With Diameter 25mm 4

Thickness Adjuster
The Thickness Of The Tablet Can Be Adjusted According To Actual Needs.

Machine Characteristics
40KN Pharmaceutical Single Punch Tablet Press With Diameter 25mm 5
