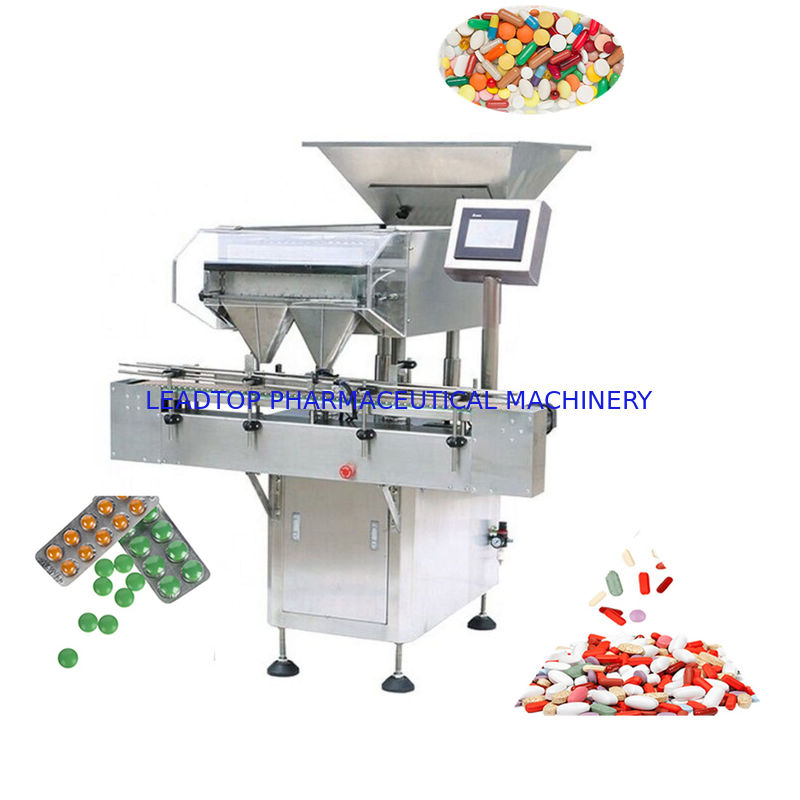

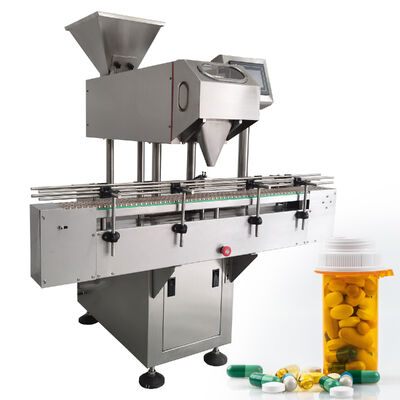

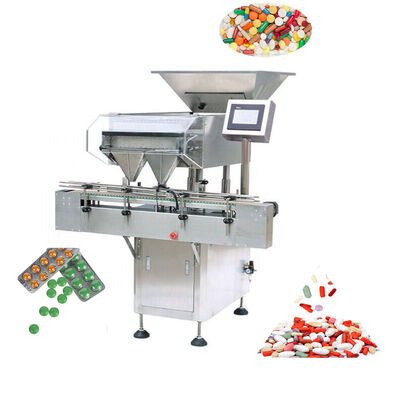

Automatic Capsule Pill Tablets Candy Soft Capsule Counting Counter Machine

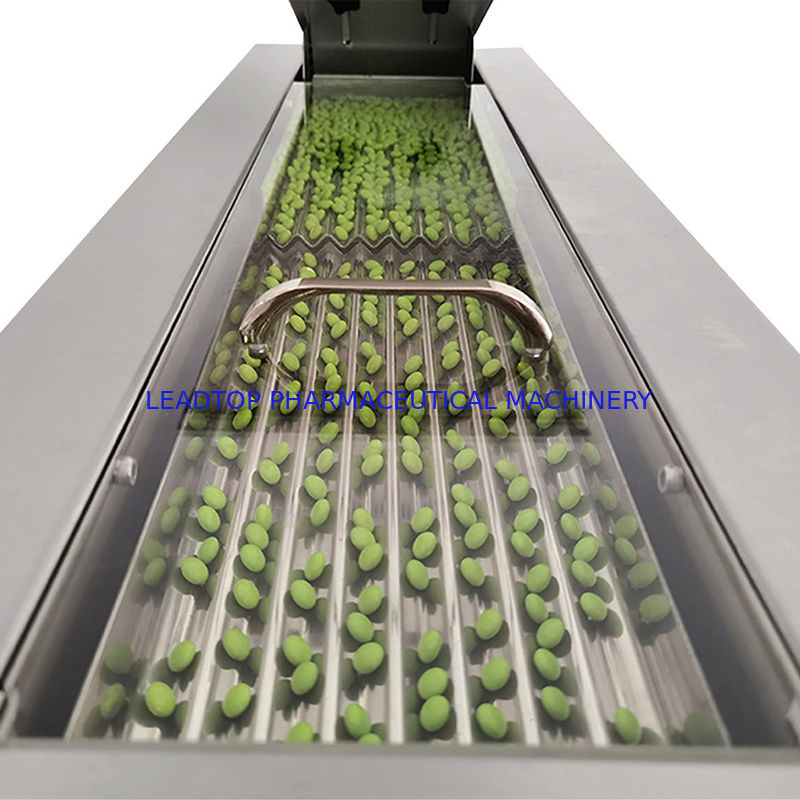

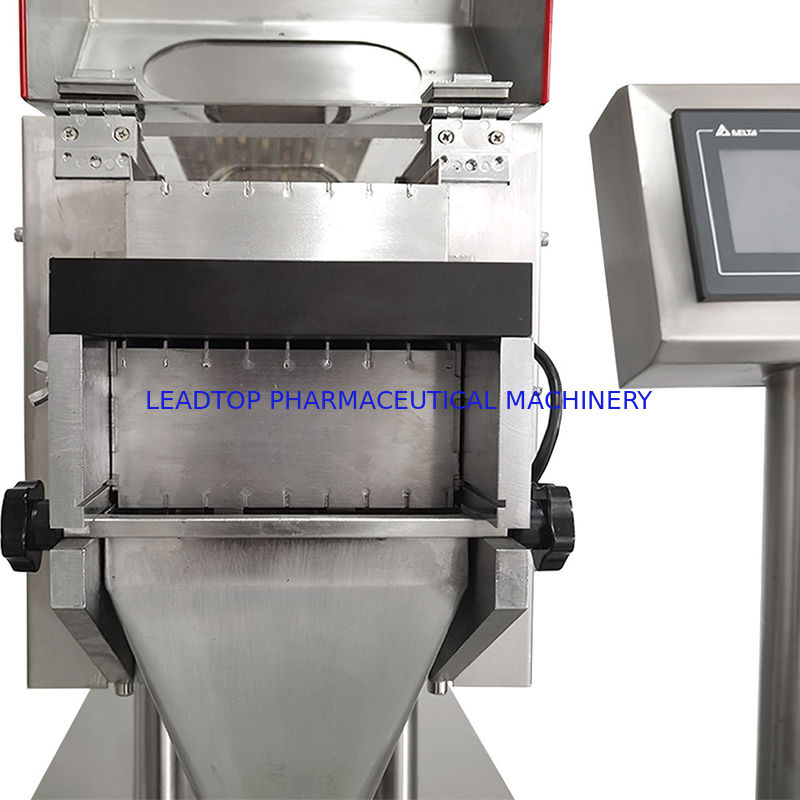

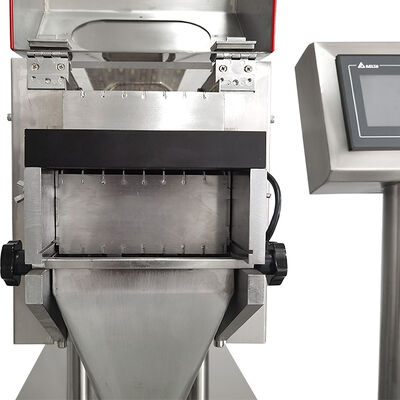

The device for intelligent high precision automatic capsule counting machine, new patented capsule grain number device can automatically any (even, odd, prime number accurate number grain filling bottle. The novel structure has the advantages of small volume, stable operation low noise, is the small and medium-sized pharmaceutical companies, health care products factory, hospital preparation room, the ideal automatic counting in bottle equipment. The block bottle device on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the bottling position,waiting to be filled in.The medicine goes into the medicine container in order by the vibration of the feeding corrugated plate.There’s a counting photoelectric sensor installed on the medicine container,after counting of the medicine in the medicine container by the counting photoelectric sensor, the medicine goes into the bottle in the bottling position.
Features:
1: Vertical track compensation type count (patented technology), the number of grain accuracy can be almost 100%, to avoid the traditional vibration or rotary type of the error of the number of large error.
2: Vertical track compensation technology (patent) count in the same types of capsule can achieve rapid setting any number of bottling capsule number, no need to replace the mold is very fast and convenient.
3: The host uses frequency conversion speed control can realize the soft start speed
adjustment is sensitive and reliable and can bear the big starting torque.
4: The bottle conveying belt type, for the customer after the connection of the connection can be fast connection Auxiliary equipment (machine, capping machine, etc.).
5: Control the use of touch screen man-machine interface PLC programmable controller technology can quickly set various parameters.
6: Light control technology automatic detection of bottle or bottle turning waste to reduce to the lowest point of the capsule automatic alarm.
7: The mold all use the cylinder pin position design to make the replacement mould only need 5 minutes to install in place convenient and quick.
8: Drug contact parts all adopt 304 stainless steel, accord with GMP standard.
Main Technical Data
| Model | LTEC-12 | LTEC-16 | LTEC-24 | LTEC-32 |
| Slide wheel | 12 Channels | 16 Channels | 24 Channels | 32 Channels |
| Size of Object | Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule | |||
| Size of bottles | 20-300ml | |||
| The diameter for bottles mouth | 20-80mm | |||
| Output | 4,000pcs/min | 6,000pcs/min | 8,000pcs/min | 10,000pcs/min |
| Capacity | 40bottles/min | 60bottles/min | 80bottle/min | 100bottles/min |
| Power | 0.9KW | 0.9KW | 1.35KW | 1.35KW |
| Power supply | 220V 60HZ | |||
| Air pressure | 6kgs/c | |||
| Overall dimensions(mm) | 1700×1700×1900 | 2000×1700×1900 | 2800×1700×1900 | 3200×1700×1900 |
Application
(1) Strong compatibility, high accuracy, wide application range, can count and bottle tablets (including shaped tablets),
capsules, soft capsules (transparent, opaque) pills
(2) It has strong applicability and adopts the company's original anti-high dust photoelectric sensor technology, which can work
stably under the condition of high dust.

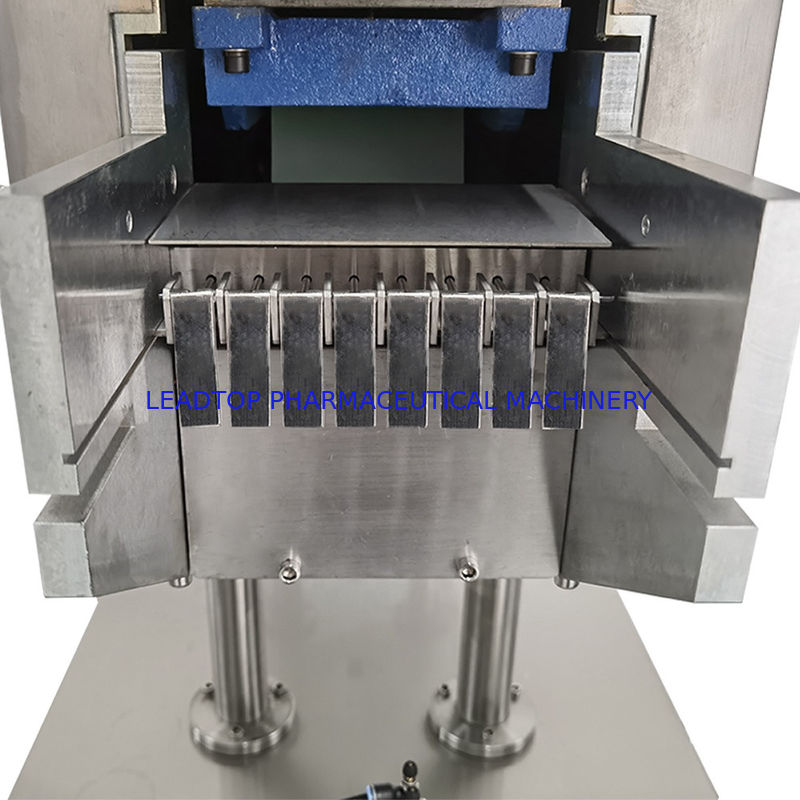

(3) Vibratory feeding, unique patent flap dispensing mechanism does not damage drugs
(4) High degree of intelligence, with multiple detection and alarm control functions such as no bottle count, fault self-test
