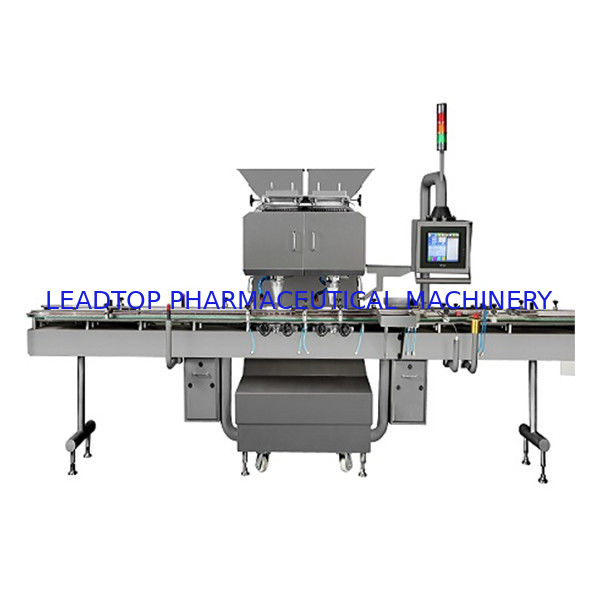

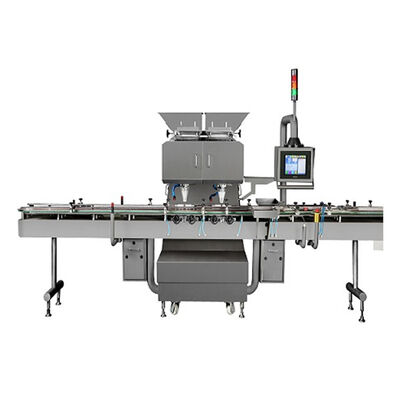

Multi-Channels Electronic Tablet Capsule Counting Machine
This machine is mainly used for pill,soft hard capsule,plain sheet,sugar and other shape material count of filling in medicine,food,chemical and other industries pakaging line tablet.
Features:
1. Granule counting completely correct .
2. With precounting function, it can continously count grain at the same time of filling,save time.

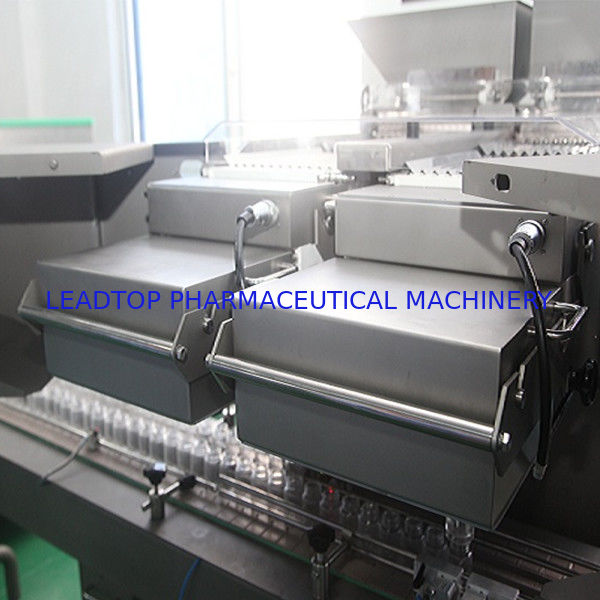

3. Special design of the 3 D counting electric eye,distinguish overlap medicine granule and the fragment.
4. The 3 level vibrator is made from German Binder original imports, vibration faster , stable performance
5. Easy to operate, touching screen can store 50 different drug parameters, when replacing the drug, the drug directly call the corresponding parameters.
6. The machine all adopt the stainless material, parts adopts 316 material machine main device for the overseas well-known brand
Main Technical Data
| Model | LTEC-12 | LTEC-16 | LTEC-24 | LTEC-32 |
| Slide wheel | 12 Channels | 16 Channels | 24 Channels | 32 Channels |
| Size of Object | Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule | |||
| Size of bottles | 20-300ml | |||
| The diameter for bottles mouth | 20-80mm | |||
| Output | 4,000pcs/min | 6,000pcs/min | 8,000pcs/min | 10,000pcs/min |
| Capacity | 40bottles/min | 60bottles/min | 80bottle/min | 100bottles/min |
| Power | 0.9KW | 0.9KW | 1.35KW | 1.35KW |
| Power supply | 220V 60HZ | |||
| Air pressure | 6kgs/c | |||
| Overall dimensions(mm) | 1700×1700×1900 | 2000×1700×1900 | 2800×1700×1900 | 3200×1700×1900 |
Advantage
1) Special design of the 3 D counting electric eye,distinguish overlap medicine granule and the fragment.100% counting accuracy guaranteed.
2) The 3 level vibrator is made from German Binder original imports, vibration faster , stable performance
3) Easy to operate, touching screen can store 50 different drug parameters, when replacing the drug, the drug directly call the corresponding parameters.
4) The machine all adopt the stainless material, parts adopts 316 material machine main device for the overseas well-known brand .such us touch screen, breaker and PLC from SIEMENS, 3 level vibrator from Germany Binder,intermediate rely from Japan OMROM,Governor and tranducer from Denmark Danfoss etc.
