Programmable Capsule Filling Machine Stepless Transduction

Programmable Capsule Filling Machine Stepless Transduction

Product Details:

Place of Origin: china
Brand Name: LTPM CHINA
Certification: CE
Model Number: JTJ-A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: In 25 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Model: JTJ-A Capsule Size: 00#,0#,1#,2#,3#,4#,5# Are Available
Vacuum Pump: XD-040(40m³/hour) Capacity Of Air Compressor: 0.1m³/min
Noise: Less Than 60dB (A) Overall Dimensions: 1200*700*1600mm
Packing Dimensions: 1800*800*1800mm Net Weight: 330Kg
High Light:

CE Programmable Capsule Filling Machine

,

Stepless Transduction Capsule Filling Machine

,

380V Pill Capsule Filling Machine

Product Description

Programmable Capsule Filling Machine Stepless Transduction

Low Noise Level Hot Sale Pill Semi Automatic Capsule Filling Machine Price

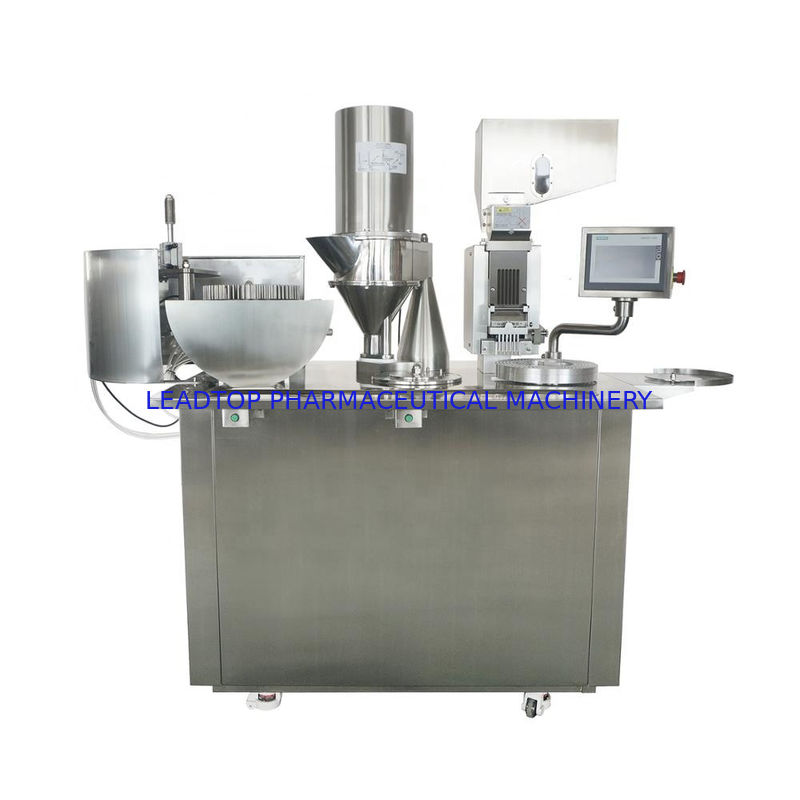

Semi-Automatic Capsule Filling Machine The product is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc. The machine adopted programmable control system, touch panel operation, stepless transduction speed-shift, and electronic automatic counter. And it automatically completes the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with powder and grain.

Programmable Capsule Filling Machine Stepless Transduction 0




Main Features:

1) It adopts Cycloid Motor for making machine in lowest sound running. There three Cycloid Motor in this machine.
2) JTJ-Series adopts Touch Button for operating. It will be hard for making powder into Controlling System.
3) Easy for Changing Mould from Size 00 to 5#.
4) The machine is whole Body stainless steel. Capsule Feeder is Copper, Capsule Disk is Aluminum Disk, Capsule Locking position Copper. (For Detailed please see following Mould List)
5)We call the Semi Automatic Capsule Filling Machine operating THREE STEPS, Operator is easy to know how to Separate Capsules, Filling Capsules, Locking Capsules means Output.



Main Technical Data:

Model: JTJ-Series
Capsule Size: #00-#5
Vacuum Pump: XD-040(40m³/hour)
Capacity Of air compressor: 0.1m³/min
Noise: Less than 60dB (A)
Overall Dimensions: 1200*700*1600mm
Packing Dimensions: 1800*800*1800mm
Net Weight: 330Kg
Gross Weight: 525Kg
Capacity: 12,000capsules/hour
Power Supply: 380V 50Hz 2.2Kw





Application
Applicable capsule:000#, 00L#, 00#, 0#, 1#, 2#, 3#, 4# mechanism standard capsule

Programmable Capsule Filling Machine Stepless Transduction 1





Machine Details​ Images

Programmable Capsule Filling Machine Stepless Transduction 2

√304 stainless steel material
√Automatic
√Fast speed
√High precision
√Safety protection device and emergency stop switch



Programmable Capsule Filling Machine Stepless Transduction 3

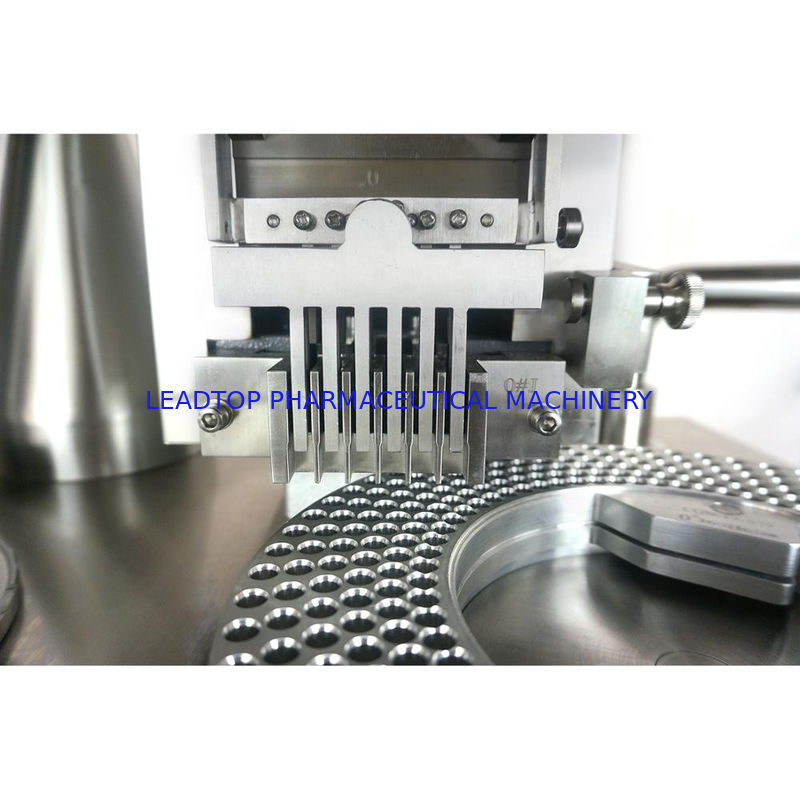

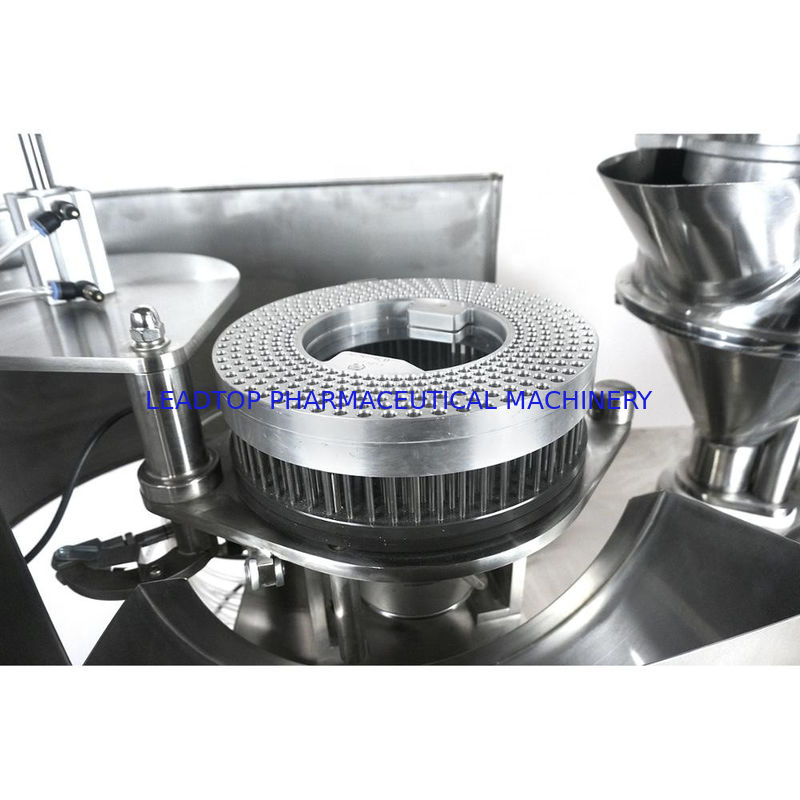

The surface of the capsule plate is polished, and the die hole is positioned with high precision.
Which improves the utilization rate. Strong, light weight, durable



Programmable Capsule Filling Machine Stepless Transduction 4

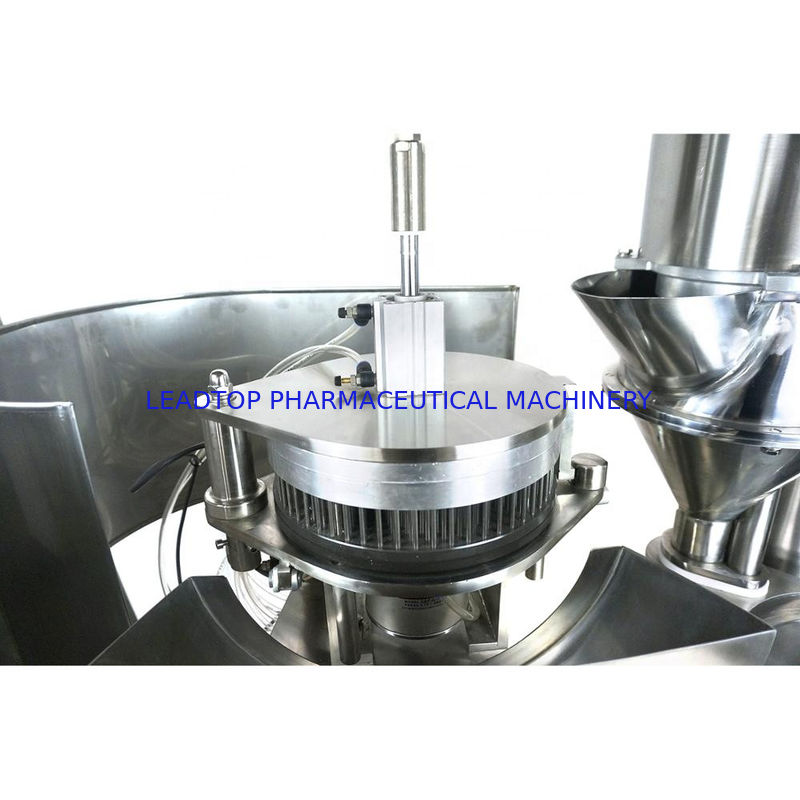

The capsule locking station adopts automatic horizontal locking.It uses the cylinder starting principle to lock, which saves human resources and reduces the process of locking the capsule.



Programmable Capsule Filling Machine Stepless Transduction 5

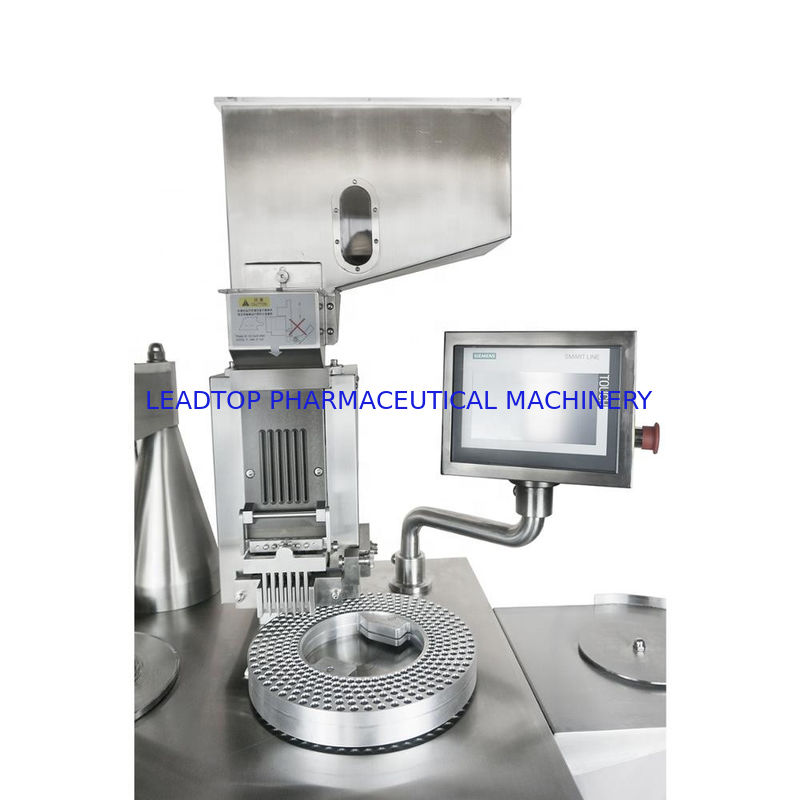

Well-known electrical appliance brand, neat wiring, convenient for inspection and maintenance.



Programmable Capsule Filling Machine Stepless Transduction 6

The suction type vacuum pump device has low noise and no pollution, and it is convenient for the capsule device to separate the capsule body and the cap.
