12000pcs/H Manual Capsule Filling Machine Powder Pellet Capsule Filler Machine

12000pcs/H Manual Capsule Filling Machine Powder Pellet Capsule Filler Machine

12000pcs/H Manual Capsule Filling Machine

2.2Kw Capsule Filler Machine

0.1m3/min Compressor Capsule Filler Machine

Place of Origin:

china

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

JTJ-A

Contact Us

Request A Quote
Product Details
Model:
JTJ-A
Capsule Size:
00#,0#,1#,2#,3#,4#,5# Are Available
Vacuum Pump:
XD-040(40m³/hour)
Capacity Of Air Compressor:
0.1m³/min
Noise:
Less Than 60dB (A)
Overall Dimensions:
1200*700*1600mm
Packing Dimensions:
1800*800*1800mm
Net Weight:
330Kg
Product Description

5 Years Warranty Manual Semi Automatic Capsule Filling Machine Capsule Filler Machine For Powder Pellet



The Capsule-Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance.
Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules.
In place of manual capsule-filling,it can reduce labor intensity and raise productivity. Its filling amounts are accurate and up to sanitary standards for pharmaceutics.
The machine consists of capsule-feeding, U-turning and separating mechanism, material medicine-filling mechanism,locking device, electronic speed varying and adjusting mechanism, electrical and pneumatic control system protection device as well as accessories such as vacuum pump and air pump.
China machine-made capsules or the imported are applicable to this machine, with which the finished product qualification rate can be above 97%.


Main Features:

1. Simple operation, convenient maintenance, low power consumption, high production efficiency, and one machine with multiple uses.
2. The key components, hoppers and countertops are made of stainless steel, and the overall stainless steel body conforms to GMP standards;
3. Simple structure, low power consumption, high production efficiency, easy maintenance and cleaning, and extremely low failure rate.
4. Suitable for 00#, 0#, 1#, 2#, 3#, 4#,5# capsules, suitable for various types of capsules for filling various powders and granules;
5. Easy to operate, you can learn to operate in ten minutes; it is convenient to change the model, and the template can be replaced in 20 minutes;
6. The capsule filling rate is high, and the qualified rate of the capsule can reach over 99%, and the capsule will not be damaged.



Main Technical Data:

Model: JTJ-A
Capsule Size: #00-#5
Vacuum Pump: XD-040(40m³/hour)
Capacity Of air compressor: 0.1m³/min
Noise: Less than 60dB (A)
Overall Dimensions: 1200*700*1600mm
Packing Dimensions: 1800*800*1800mm
Net Weight: 330Kg
Gross Weight: 525Kg
Capacity: 12,000capsules/hour
Power Supply: 380V 50Hz 2.2Kw





Application
Applicable capsule:000#, 00L#, 00#, 0#, 1#, 2#, 3#, 4# mechanism standard capsule

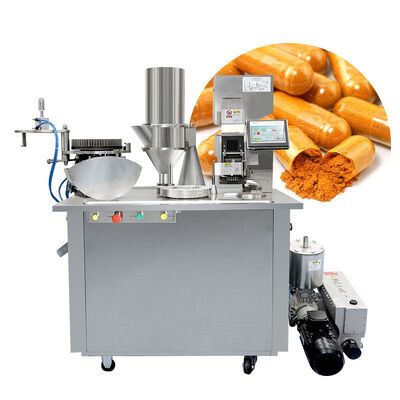

12000pcs/H Manual Capsule Filling Machine Powder Pellet Capsule Filler Machine 0

12000pcs/H Manual Capsule Filling Machine Powder Pellet Capsule Filler Machine 1



Machine Details​ Images

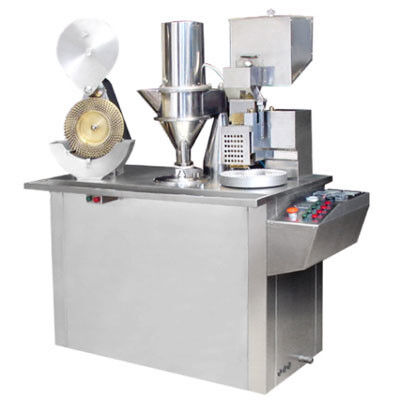

12000pcs/H Manual Capsule Filling Machine Powder Pellet Capsule Filler Machine 2



Mold Picture

12000pcs/H Manual Capsule Filling Machine Powder Pellet Capsule Filler Machine 3
