Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE, GMP
Model Number:
FL
Contact Us

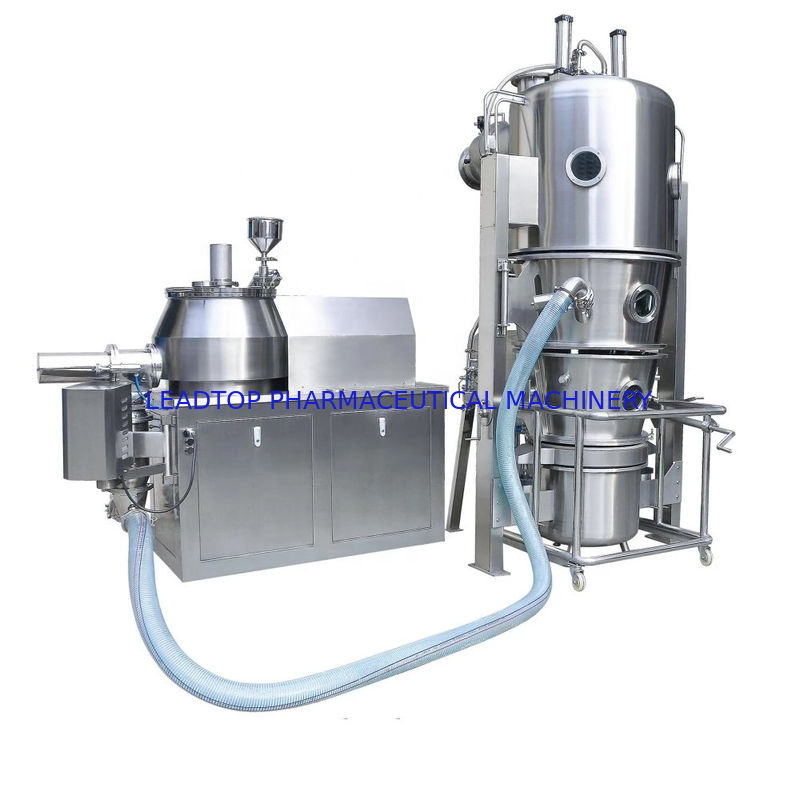

Cassava Strach Metal Component Spin Flash Dryer For South Africa Market Fluid Bed Dryer Granul
The advantage of FL Fluid Bed Granulator Dryer Machine technology rests with maintaining evenness and recurrence of product quality, which reflects an ideal balance between production efficiency and product quality. In the process of fluidization, the materials floats above the air, with surface in full contact with the heated air,and the materials therefore is evenly eated and reaches an ideal state for heat exchange thus to have a high efficiency. Configurated with proper spraying system and through further structural improvement, the fluid bed then becomes a multi-purpose processing facility in combined functions of drying, granulating, solution coating, and powder dressing.Final product usually instant solute granule.
The machine is including many superiority,such as reasonable design,compact stuction,widly utilization,grrat roductive capacity,good quality,high effect and save energy,Drying grinding and sieve are completed in one equipment in once time.It eliminate and the techinology is reached international advance level.
Application
The machine is a multifunctional fluid bed granulator integrating various functions such as top spray, bottom spray and side spray. It has various functions such as mixing, drying, granulating, coating and pelletizing. It is widely used in such industries as pharmaceutical, food, chemical industry, etc.
Specifications
| Model | 60 |
| Volume (L) | 220 |
| Amount to be treated (kg/per time) | 90 |
| Power of fan(kw) | 11 |
| Consume of steam 0.4MPa(kg/h) | 141 |
| Consume of compressed air (m3/min) | 1.0 |
| Noise,dB(A) | (fan is installed separately) ≤75 |
Work principle

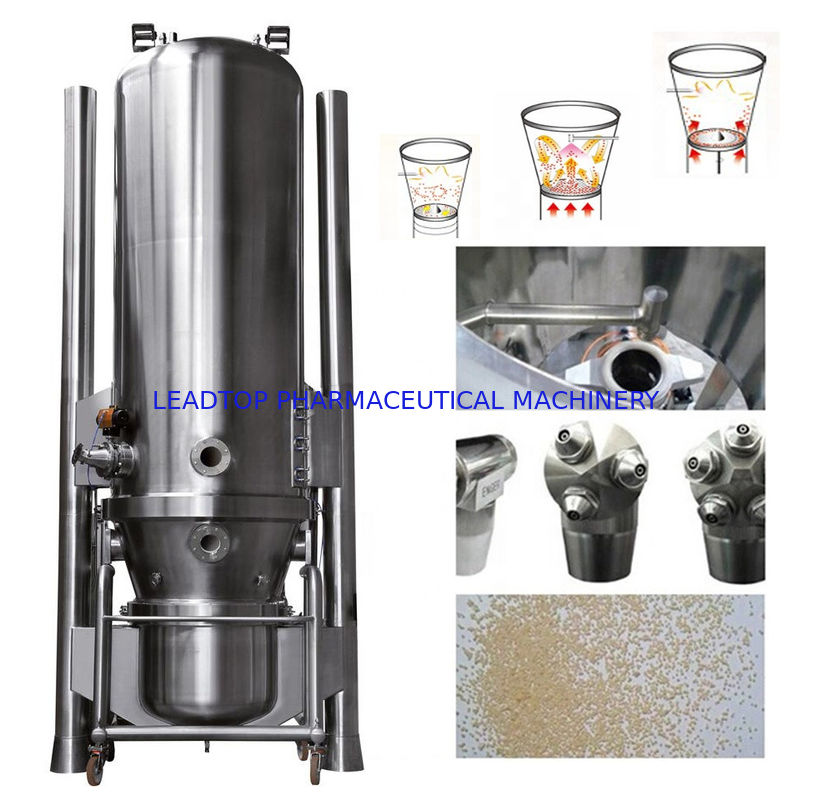

The machine is composed of air inlet system, fluid bed system, top spray system, bottom spray system, side spray system and exhaust and dust filter system. The top spray provides the granulating function, the bottom spray provides the pellet coating function and the side spray provides the pelletizing function. The above functions are realized in one multifunctional fluid bed granulator. Users can select the optional functions according to actual process requirements.
Features
1.The machine adopts modular design. Three functions or any one or two of the functions can be configured according to customer requirements.
2.The machine is provided with complete function systems including top spray, bottom spray and side spray to conveniently realize such the functions of drying, granulating, coating and pelletizing.
3.The machine adopts PLC automatic control. All operations are completed automatically according to the process parameters set by users. All process parameters can be printed and the original records are true and reliable. It fully meets GMP requirements for pharmaceutical production.
