Place of Origin:
CHINA
Brand Name:
LTPM CHINA
Certification:
CE
Model Number:
DPP-Series
Contact Us

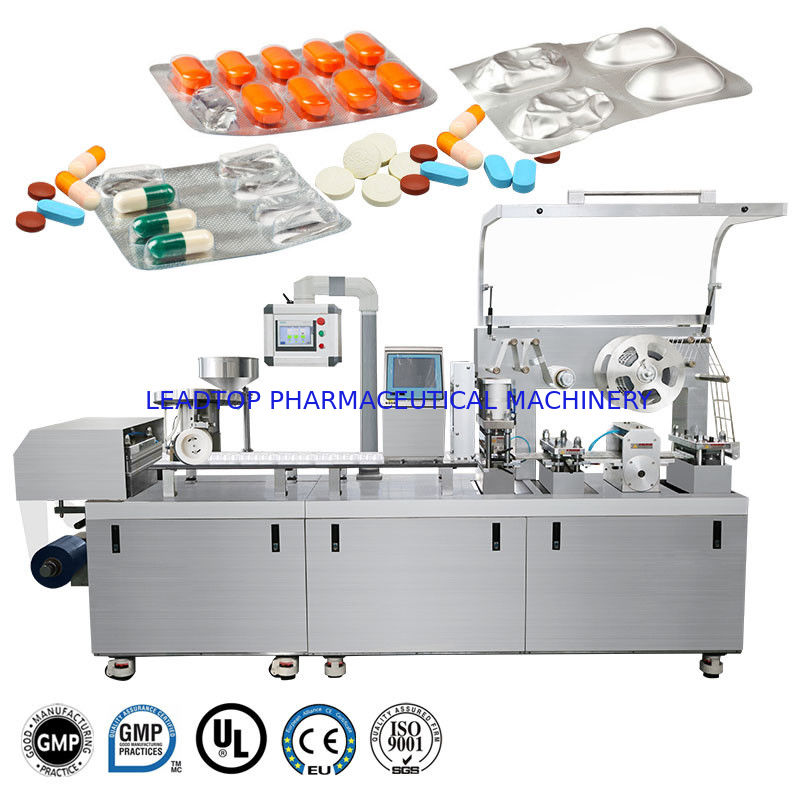

Pharmaceutical Medicine Large 10800 Plates/H Capsule Pill Blister Pack Packing Machine
Aluminum Plastic/duralumin Packing Machine with advanced performance, simple operation, high output is the latest improved equipment in our company. It is the best ideal packing equipment for large and medium-sized pharmaceutical plant, health care factory and food industry.
Specifications:
Product design:
Product design: OEM/ODM custom design the shape and size of the blister product
Machine Details
Main features
Ø Adopts top brand PLC controller with touch screen displayed in Chinese and English, Frequency inverter for speed control, servo traction, which can ensure the length of blister traction adjustable within the range.
Ø With thermal temperature control and test, main machine over loading protect, PVC and PTP packing material position test, feeder material position test, failure automatic debug and alarm, automatic protection and stop running.
Ø The machine station module type design of level frame, good sight, safe and convenient operation.
Ø Thermal with contact type, positive press formed, air cushion thermal seal upper and lower net, photo register make your product package better.
Ø PVC exchange support with bigger type material support, whole roller, which makes the equipment more practicability.
Ø The special design of mould in rectangle shape, ladder type fixing, provide much convenience and easy to mould replacement. All material contact parts adopt high quality stainless steel and aluminum metal, slap-up surface treatment craft.
Ø Discharging finished product in right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.
Ø Feeding efficiently, reliable and suitable for many kinds type arrange and irregular feeding,(according to actual product design fit feeder)
Ø The machine has been designed into separated body, which is easily move into lifts or workshops.
Applications:
1.The key electric appliance of his machine adapts PLC processor, temperature modular, touch screen to operate, high quality product, can be equipped with cursor device etc. as customer`s requirement.
2.Machine-tool track type of casting machine-base, taken these processing like backfire, maturing, high benchmark and without distortion.
3.Each box of section processed through professional equipment, to assure high precision and good ex-changeability.
4.Forming, sealing, slitting etc. parts are all could be adjust freely on the track with triangle string and flat string, strong applicability. small oversize, save installation space.
5.Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving.
6.Stroke can be adjust freely, widely used, ease of operation, stable running.
7.It adapts up and down net pattern concave-convex to conjugate, multi-step air cylinder, double-heat sealing. Quality sealing.
