3 Bores Pharmaceutical LCD Empty Capsule Filler Machine 24000caps/H

3 Bores Pharmaceutical LCD Empty Capsule Filler Machine 24000caps/H

Product Details:

Place of Origin: china
Brand Name: LTPM CHINA
Certification: CE
Model Number: NJP-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: In 25 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Brand: LTPM Quantity Of Mould Bores: 3pcs
Noise Standard: <80dB(A) Bores: 3
Filling Dosage: Power,pellets Dosing Precision: <±4%
High Light:

3 Bores Capsule Filler Machine

,

Capsule Filler Machine 24000caps/H

,

LCD Capsule Filler Machine

Product Description

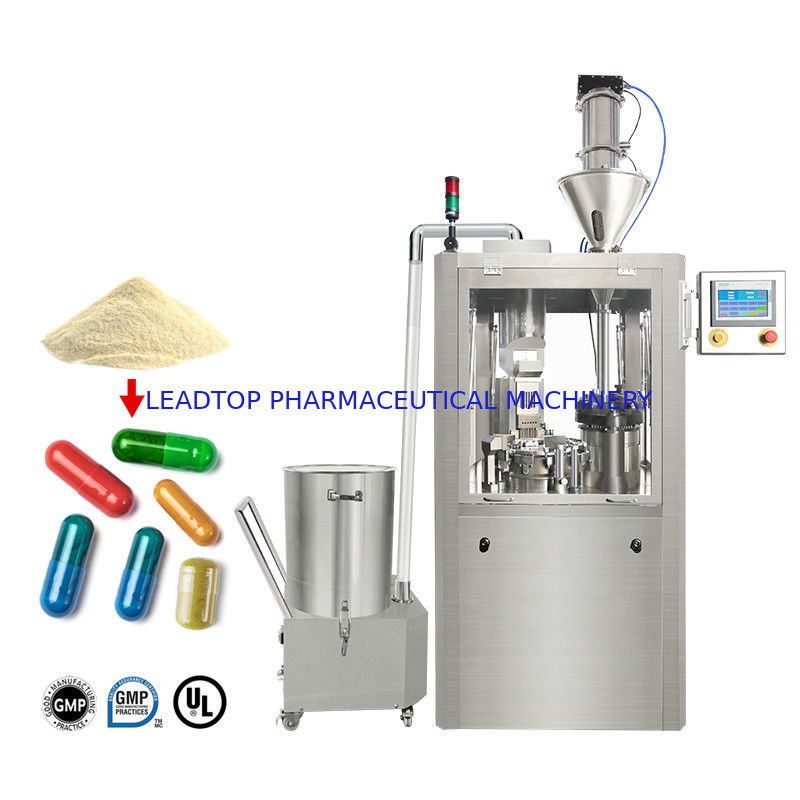

3 Bores Pharmaceutical LCD Empty Capsule Filler Machine 24000caps/H

NJP-Series Capsule Filling Machine Size 000 00 0 1 2 3 4 5# Empty Capsule Filler



The NJP-Series automatic capsule filler processes the products for optimal productivity up to 72,000 capsules per hour, featuring low-maintenance operation, minimal downtime, and overall dependable production.
Filling of pellets is available.With different specifications of mould, No. 00 to No. 5 hard capsules and safety capsules A, B, C, D, E can be filled. Both slow-released pellets fill and mixed fill with powder and pellets can be realized.







The benefits that you will enjoy from using the automatic capsule filler machine include:
1. The machines are simple and easy to operate, clean and maintain at very low costs.
2. It has adjustable and flexible settings that will improve the levels of capsule filling and production.
3. Most parts of the machine are enclosed tightly thus preventing the entry of dust and other foreign materials.
4. Since the filling process is automatic, the machine saves time and energy through a fast filling process.
5. The machine also comes with automatic sensors that will warn you of any imminent danger in the machine operations.
6. The sensors will also assist in the predetermination of the filling levels in different hoppers.
7. It has different parts that will maintain the integrity of the capsules leading to minimal or no damages on capsules.
8. The filling process is precise and accurate leading to proper filling levels of all the capsules.
9. You can easily integrate the machine properly with other machines for a complete encapsulation process.
10. The machine is also compliant to the right quality standards such as CE and cGMP that ensures high quality standards.

3 Bores Pharmaceutical LCD Empty Capsule Filler Machine 24000caps/H 0

3 Bores Pharmaceutical LCD Empty Capsule Filler Machine 24000caps/H 1





OPERATION FLOW

3 Bores Pharmaceutical LCD Empty Capsule Filler Machine 24000caps/H 2

3 Bores Pharmaceutical LCD Empty Capsule Filler Machine 24000caps/H 3





Technical Parameters

C Type Automatic Capsule Filling Machine
Model
NJP-400C
NJP-800C
NJP-1200C
NJP-2000C
NJP-3500C
Capacity
24000caps/h
48000caps/h
72000caps/h
120000caps/h
210000caps/h
NO.of
3
6
9
18
26
Capsule Size
000#-5# and safety capsule
Power
380/220V 50/60Hz 5kw



380/220V 50/60Hz 5kw
380/220V 50/60Hz 6kw
380/220V 50/60Hz 10kw
380/220V 50/60Hz 12kw
Dimensions
1080*1240*1950mm
1080*1240*1950mm
1180*1340*1980mm
1500*1350*2100mm
1386*1156*2100mm
Net Weight
800KG
800KG
1000KG
1600KG
2500KG
SNR
<75dB
<75dB
<75dB
<75dB
<75dB
D Type Automatic Capsule Filling Machine
Model
NJP-1200D
NJP-3000D
Capacity
72000caps/h
165000caps/h
NO.of mould bores
9
21
Capsule Size
000#-5# and safety capsule
Power
380/220V 50/60Hz 7KW
380/220V 50/60Hz 11KW
Dimensions
980*980*2100mm
1610*1210*2180mm
Net Weight
1000KG
2200kg
SNR
<70dB
<70dB

Machine Details

3 Bores Pharmaceutical LCD Empty Capsule Filler Machine 24000caps/H 4

Applications



This machine is widely used in Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill),also can be used to fill vitamin, foodstuff and animal drug, etc
1.Touching-Screen, PLC program control panel with LCD.
2. Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
3. Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
4. Easy speed selection and closed capsule length adjustment.

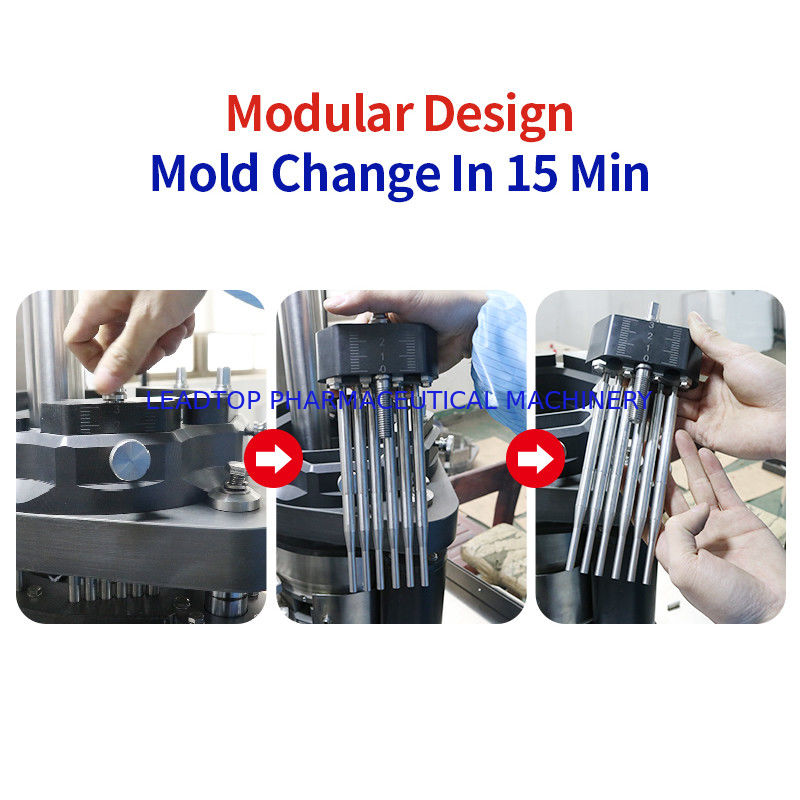

5. Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
6. Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
7. Large cam mechanism keeps the rotating table of mould together with the whole equipment running with balance,and completely guarantees the machine operating with highest precision and accuracy.

3 Bores Pharmaceutical LCD Empty Capsule Filler Machine 24000caps/H 5
