SS304 5 Heads 1000ml Liquid Bottle Filling Machine Anti Drip

SS304 5 Heads 1000ml Liquid Bottle Filling Machine Anti Drip

Product Details:

Place of Origin: Zhejiang,China
Brand Name: LTPM CHINA
Certification: CE
Model Number: LTSX-4 Rotation Type Bottle Washing Machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: wooden
Delivery Time: 30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15Sets per mouth
Get Best Price Contact Now

Detail Information

Filling Material: Beer, Milk, Water, Oil Bottle Size: 0-25 Times/min, 125 Ampoule/min (10ml/ampoule)
Packaging Material: 2-1000ml Plastic &glass Bottles RO Water Consumption: 0.4-0.7t/h 0.1-0 4Mpa
Total Power: 8.5kw0.4-0.7t/h 0.1-0 4Mpa Voltage: 220V-380V/50HZ
Single Machine Noise: ≤70dB Dimension: 3200×850×2000 Mm
High Light:

1000ml Liquid Bottle Filling Machine

,

SS304 Liquid Bottle Filling Machine

,

Touch Screen Liquid Bottle Filling Machine

Product Description

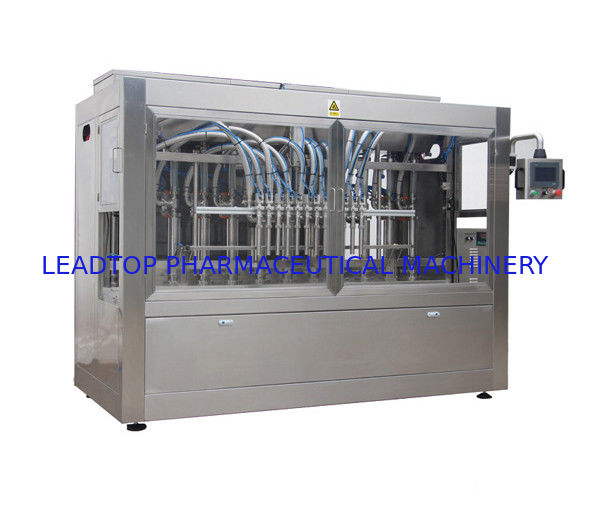

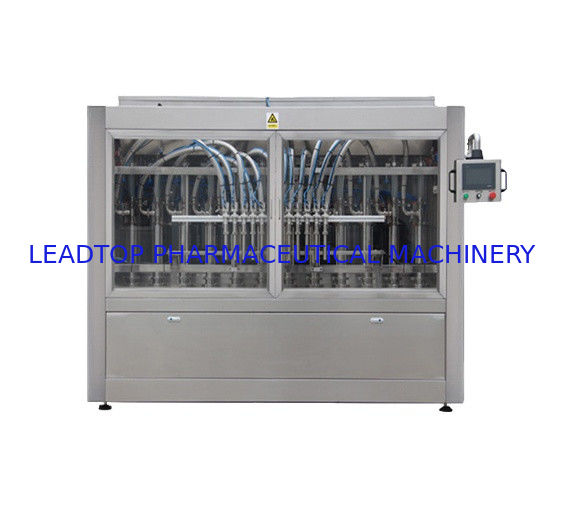

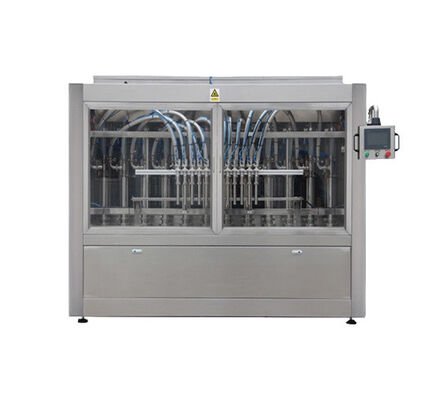

SS304 5 Heads 1000ml Liquid Bottle Filling Machine Anti Drip

Full Automatic CE Standard 100ml-1l Liquid Piston Filler Soap Liquid Filling Machine For Bottle Pail



The automatic servo piston filling machine is extremely flexible filler, is capable of filling accurately and rapidly any viscous material,such as detergent liquid,shampoo, hand soap,dishwashing liquid, shower gel and so on.



SS304 5 Heads 1000ml Liquid Bottle Filling Machine Anti Drip 0



MAIN FEATURE
304 Stainless steel construction and the material contact parts.
Controlled by panasonic servo motor
Schneider touch screen and PLC
Accuracy+0.2% for 1000ML
Three-step filling to prevent liquid foaming and splashing
Use anti-drip filling head to prevent the last drop after filling and with automatic drop collection tray double safety system



Specification

Max Forming Depth
12 mm
Cutting Frequency
0-25 times
Filling heads
5 pcs
Packing materials
PVC/PE PET/PE(0.2-0.4)×240mm
Filling Volume
1-50ml
Total Power
8.5kw
Voltage
220V-380V/50HZ
Weight
1200 kgs
Dimension
3200×850×2000 m



SS304 5 Heads 1000ml Liquid Bottle Filling Machine Anti Drip 1



Machine Details

SS304 5 Heads 1000ml Liquid Bottle Filling Machine Anti Drip 2

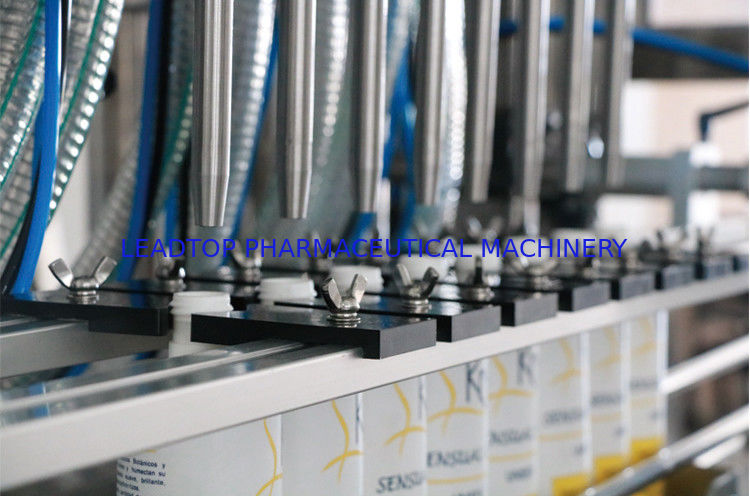

Long Diving Filling Head
1.Filling nozzles are diving design and anti drops
2.With Drop tray
3.High Filling Accuracy
4.Diving Nozzles are optional for foamy Liquid
5.304SS contruction
6.High quality O rings and seals inside of the nozzles
SS304 5 Heads 1000ml Liquid Bottle Filling Machine Anti Drip 3
ESG Valve
1.Easy disassembly three way connectors
2.ESG long life valve and high performace
3.ESG valve to gurantee the shut off accuracy and more stably
4.Sutiable for thin to viscous liquid
SS304 5 Heads 1000ml Liquid Bottle Filling Machine Anti Drip 4

Tools Free Adjustment System
1.No need tools adjustment for different size of bottles
2.All adjustment parts with measurement and easy for record
3.Filling nozzles are easy for moving right and left for the slider system
4.Adjust the Filling Volume by one touch and operation by touch screen
SS304 5 Heads 1000ml Liquid Bottle Filling Machine Anti Drip 5
High Quality Hose
Adapt world top brand of hose,such as TOYOX.
hose characteristics: With stand pressure With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying High heat resistance It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions)
SS304 5 Heads 1000ml Liquid Bottle Filling Machine Anti Drip 6
No Dead Corner Top Tank.
1.The top tank is with round or semi round design no dead corner, more easy cleaning
2.Double jacket hopper optional
3.Mixing system optional
4.CIP system optional
5.304SS constuction material, 316SS for option
SS304 5 Heads 1000ml Liquid Bottle Filling Machine Anti Drip 7
Automatic Piston Take Off System
1.Easy cleaning
2.No need tools to clean the pistons which guarantee the food grade,save time and labor.
3.CIP system is for option



Application

SS304 5 Heads 1000ml Liquid Bottle Filling Machine Anti Drip 8
