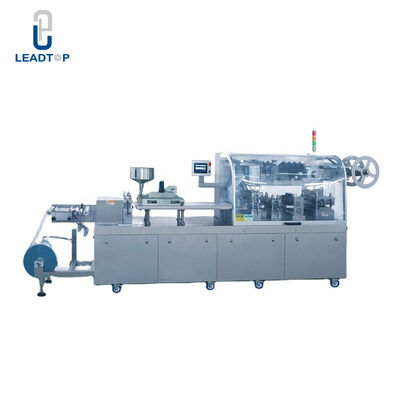

• ODM 45 Cutting/Min Capsule Blister Packing Machine With Micro Computer
ODM 45 Cutting/Min Capsule Blister Packing Machine With Micro Computer

ODM 45 Cutting/Min Capsule Blister Packing Machine With Micro Computer

Product Details:

Place of Origin: CHINA
Brand Name: LTPM CHINA
Certification: CE
Model Number: DPP-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 26800
Packaging Details: wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 25 SETS Per month
Get Best Price Contact Now

Detail Information

Stroke (mm): 40-160 Can Be Manufactured As User’s Requirements Capacity: 45cutting/min
Packaging Type: Alu/PVC And Alu/Alu Package Control System: Micro Computer
Feeding:: Universal Feeder Power: 2.2kw
Standard Plate(mm): 80×57 Can Be Manufactured As User’s Requirements Air Pressure(Mpa): 0.4-0.6
Air Supply: ≥0.3 M³/min Mould Cooling: Tap Water Or Recycling Water
High Light:

45 Cutting/Min Capsule Blister Packing Machine

,

ODM Capsule Blister Packing Machine

,

Micro Computer Blister Packing Machine

Product Description

ODM 45 Cutting/Min Capsule Blister Packing Machine With Micro Computer

DDP-Series Automatic Car Perfume Ketchup Blister Packing Machine Capsule Blister Packing Machine



Aluminum Plastic/duralumin Packing Machine with advanced performance, simple operation, high output is the latest improved equipment in our company. It is the best ideal packing equipment for large and medium-sized pharmaceutical plant, health care factory and food industry.









Specifications:

DPP Automatic Blister Packaging Machine

DPP-80
DPP-140
DPP-250
Blanking frequency
PVC-AL: 10-40 times/min AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
Adjustable scope of feed travel
30-100mm(adjustable)
30-120mm(adjustable)
30-140mm(adjustable)
The max forming area and depth
120mm×90mm×20mm
150mm×120mm×26mm
240mm×130mm×26mm
Wrapper: ALU
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper: PVC
Length: 130mm,
thickness: 0.25-0.5mm
Length: 160mm,
thickness: 0.25-0.5mm
Length: 250mm,
thickness: 0.25-0.5mm
Wrapper: PTP
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper:Dialysis paper
Length:130mm, specification:50-100 gram
Length:160mm, specification:50-100 gram
Length:250mm, specification:50-100 gram
Power of forming heating
1.5KW
2.4KW
3KW
Power of sealing heating
1.5KW
2.4KW
3KW
Main motor power
0.75KW
1.5KW
1.5KW
Machine Voltage
380V/220V 50Hz
Capacity of air compressor
≥0.2m3/min
Pressure: 0.4~0.6MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
Overall dimension
2070mm×650mm×1060mm
2350×580×1500 mm
3100×670×1650mm
Weight
560Kg
800KG
1500KG

Product design:
Product design: OEM/ODM custom design the shape and size of the blister product

ODM 45 Cutting/Min Capsule Blister Packing Machine With Micro Computer 0



Machine Details

ODM 45 Cutting/Min Capsule Blister Packing Machine With Micro Computer 1

ODM 45 Cutting/Min Capsule Blister Packing Machine With Micro Computer 2

ODM 45 Cutting/Min Capsule Blister Packing Machine With Micro Computer 3

ODM 45 Cutting/Min Capsule Blister Packing Machine With Micro Computer 4



Main features

Ø Adopts top brand PLC controller with touch screen displayed in Chinese and English, Frequency inverter for speed control, servo traction, which can ensure the length of blister traction adjustable within the range.

Ø With thermal temperature control and test, main machine over loading protect, PVC and PTP packing material position test, feeder material position test, failure automatic debug and alarm, automatic protection and stop running.

Ø The machine station module type design of level frame, good sight, safe and convenient operation.

Ø Thermal with contact type, positive press formed, air cushion thermal seal upper and lower net, photo register make your product package better.

Ø PVC exchange support with bigger type material support, whole roller, which makes the equipment more practicability.

Ø The special design of mould in rectangle shape, ladder type fixing, provide much convenience and easy to mould replacement. All material contact parts adopt high quality stainless steel and aluminum metal, slap-up surface treatment craft.

Ø Discharging finished product in right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.

Ø Feeding efficiently, reliable and suitable for many kinds type arrange and irregular feeding,(according to actual product design fit feeder)

Ø The machine has been designed into separated body, which is easily move into lifts or workshops.

ODM 45 Cutting/Min Capsule Blister Packing Machine With Micro Computer 5

ODM 45 Cutting/Min Capsule Blister Packing Machine With Micro Computer 6
