Alu PVC Softgel Capsule Blister Pack Sealer Water Recycling

Alu PVC Softgel Capsule Blister Pack Sealer Water Recycling

Product Details:

Place of Origin: CHINA
Brand Name: LTPM CHINA
Certification: CE
Model Number: DPP-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 25 SETS Per month
Get Best Price Contact Now

Detail Information

Stroke (mm): 40-160 Can Be Manufactured As User’s Requirements Capacity: 45cutting/min
Packaging Type: Alu/PVC And Alu/Alu Package Control System: Micro Computer
Feeding:: Universal Feeder Power: 2.2kw
Standard Plate(mm): 80×57 Can Be Manufactured As User’s Requirements Air Pressure(Mpa): 0.4-0.6
Air Supply: ≥0.3 M³/min Mould Cooling: Tap Water Or Recycling Water
High Light:

Softgel Capsule Blister Pack Sealer

,

Alu PVC Blister Pack Sealer

,

Water Recycling Blister Pack Sealer

Product Description

Alu PVC Softgel Capsule Blister Pack Sealer Water Recycling

DPP-Series Candy Softgel Condom Car Perfume Ketchup Blister Sealing Packing Machines For Capsule Pill Tablet



DPP-Series Automatic Pill Blister Packing Machine is widely used for capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry, for injector, syringes, pins, small component etc.
In electron or hardware industry as all kind of shapes of ALU-ALU, ALU-plastic, paper-plastic combined sealing packing.







Specifications:

DPP Automatic Blister Packaging Machine

DPP-80
DPP-140
DPP-250
Blanking frequency
PVC-AL: 10-40 times/min AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
Adjustable scope of feed travel
30-100mm(adjustable)
30-120mm(adjustable)
30-140mm(adjustable)
The max forming area and depth
120mm×90mm×20mm
150mm×120mm×26mm
240mm×130mm×26mm
Wrapper: ALU
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper: PVC
Length: 130mm,
thickness: 0.25-0.5mm
Length: 160mm,
thickness: 0.25-0.5mm
Length: 250mm,
thickness: 0.25-0.5mm
Wrapper: PTP
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper:Dialysis paper
Length:130mm, specification:50-100 gram
Length:160mm, specification:50-100 gram
Length:250mm, specification:50-100 gram
Power of forming heating
1.5KW
2.4KW
3KW
Power of sealing heating
1.5KW
2.4KW
3KW
Main motor power
0.75KW
1.5KW
1.5KW
Machine Voltage
380V/220V 50Hz
Capacity of air compressor
≥0.2m3/min
Pressure: 0.4~0.6MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
Overall dimension
2070mm×650mm×1060mm
2350×580×1500 mm
3100×670×1650mm
Weight
560Kg
800KG
1500KG

Product design:
Product design: OEM/ODM custom design the shape and size of the blister product



Machine Details

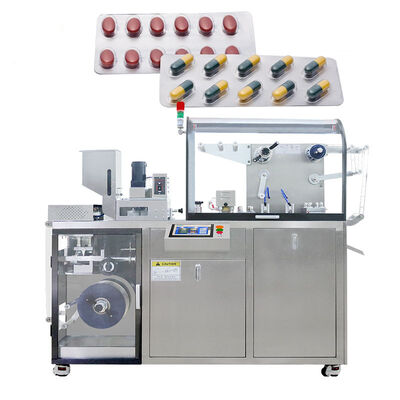

Alu PVC Softgel Capsule Blister Pack Sealer Water Recycling 0



Main features

1.Frequency conversion stepless speed regulation, mechanical traction

2.Adjustable stroke, adjustable range of 30-100mm, convenient adjustment, accurate synchronization

3.Standard is equipped with four stations (molding, heat sealing, indentation, punching and cutting) and each station to install four posts, the adjustment is more convenient, stable operation;

4.The use of plate mold, positive pressure molding, batch number, indentation tangent, aluminum foil / aluminum automatic discharge;

5.The configuration of a set of universal feeder, the filling rate is as high as 99.5%;

6.The machine has the advantages of small size, light weight, adjustment and maintenance space, etc.



Applications:
1.The key electric appliance of his machine adapts PLC processor, temperature modular, touch screen to operate, high quality product, can be equipped with cursor device etc. as customer`s requirement.
2.Machine-tool track type of casting machine-base, taken these processing like backfire, maturing, high benchmark and without distortion.
3.Each box of section processed through professional equipment, to assure high precision and good ex-changeability.
4.Forming, sealing, slitting etc. parts are all could be adjust freely on the track with triangle string and flat string, strong applicability. small oversize, save installation space.
5.Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving.
6.Stroke can be adjust freely, widely used, ease of operation, stable running.
7.It adapts up and down net pattern concave-convex to conjugate, multi-step air cylinder, double-heat sealing. Quality sealing.

Alu PVC Softgel Capsule Blister Pack Sealer Water Recycling 1
