40mm Stroke Softgel Capsule Blister Packing Machine

40mm Stroke Softgel Capsule Blister Packing Machine

Softgel Capsule Blister Packing Machine

40mm Stroke Blister Packing Machine

GMP Blister Packing Machine

Place of Origin:

CHINA

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

DPP-Series

Contact Us

Request A Quote
Product Details
Stroke (mm):
40-160 Can Be Manufactured As User’s Requirements
Capacity:
45cutting/min
Packaging Type:
Alu/PVC And Alu/Alu Package
Control System:
Micro Computer
Feeding::
Universal Feeder
Power:
2.2kw
Standard Plate(mm):
80×57 Can Be Manufactured As User’s Requirements
Air Pressure(Mpa):
0.4-0.6
Air Supply:
≥0.3 M³/min
Mould Cooling:
Tap Water Or Recycling Water
Product Description

DDP-Series Automatic Pharmaceutical Pill Soft Gel Capsule Tablet Blister Packing Machine

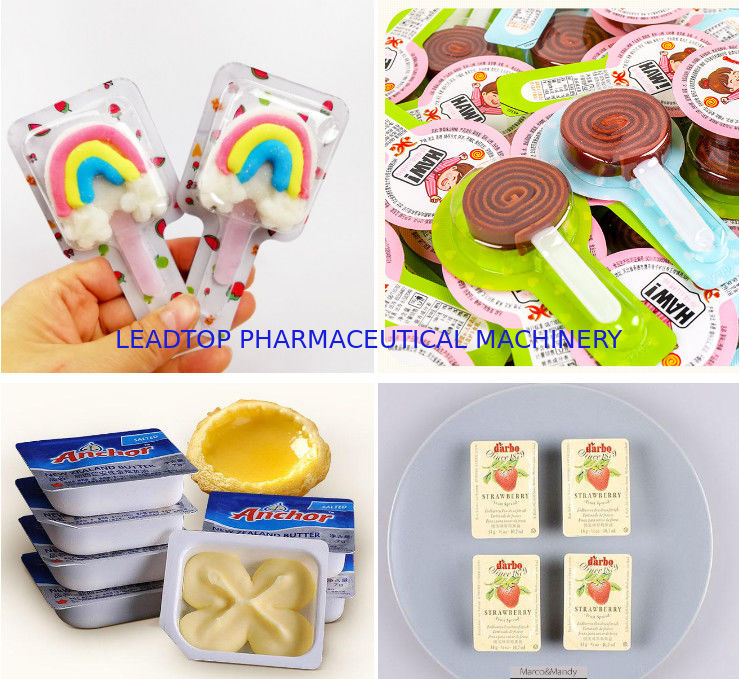

DPP-Series multifunctional automatic aluminum (aluminum) bubble cap packing machine, the machine is the company comprehensive domestic and foreign aluminum plastic packaging machine has the advantages of innovative design, the contact part of the drug and by stainless steel and high grade aluminum alloy materials production, applicable to the pharmaceutical, food, health care products packaging industry plain tablets, sugar coated tablets, capsules, can be packaged tomato sauce, chocolate sauce, honey and so on



The machine is China pharmaceutical packaging technology improvement and implementation of GMP production equipment, the product has been sold to domestic and foreign pharmaceutical companies and large and medium-sized hospitals, and exported to more than 20 countries and regions, favored by customers and praise.







Specifications:

DPP Automatic Blister Packaging Machine

DPP-80
DPP-140
DPP-250
Blanking frequency
PVC-AL: 10-40 times/min AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
Adjustable scope of feed travel
30-100mm(adjustable)
30-120mm(adjustable)
30-140mm(adjustable)
The max forming area and depth
120mm×90mm×20mm
150mm×120mm×26mm
240mm×130mm×26mm
Wrapper: ALU
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper: PVC
Length: 130mm,
thickness: 0.25-0.5mm
Length: 160mm,
thickness: 0.25-0.5mm
Length: 250mm,
thickness: 0.25-0.5mm
Wrapper: PTP
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper:Dialysis paper
Length:130mm, specification:50-100 gram
Length:160mm, specification:50-100 gram
Length:250mm, specification:50-100 gram
Power of forming heating
1.5KW
2.4KW
3KW
Power of sealing heating
1.5KW
2.4KW
3KW
Main motor power
0.75KW
1.5KW
1.5KW
Machine Voltage
380V/220V 50Hz
Capacity of air compressor
≥0.2m3/min
Pressure: 0.4~0.6MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
Overall dimension
2070mm×650mm×1060mm
2350×580×1500 mm
3100×670×1650mm
Weight
560Kg
800KG
1500KG

Product design:
Product design: OEM/ODM custom design the shape and size of the blister product

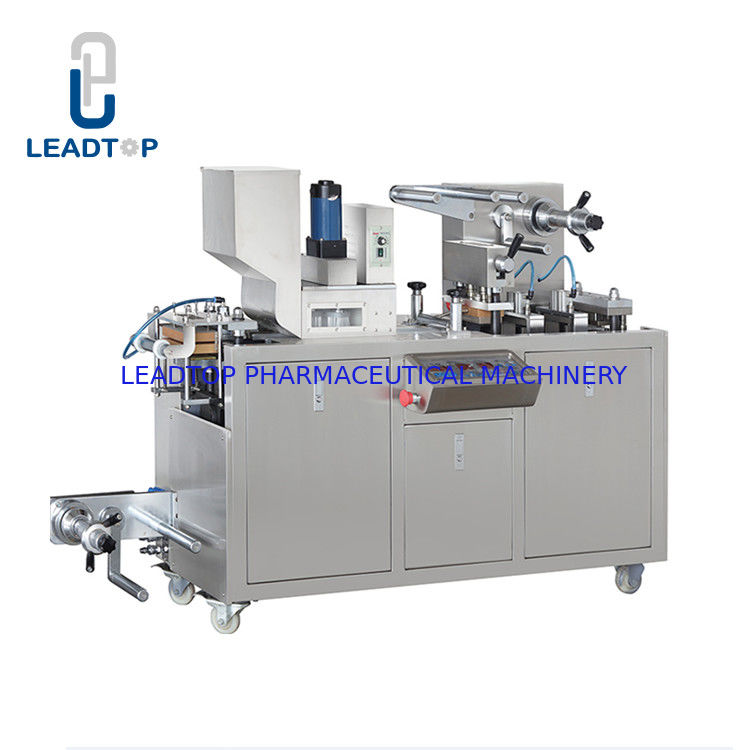

40mm Stroke Softgel Capsule Blister Packing Machine 0



Machine Details

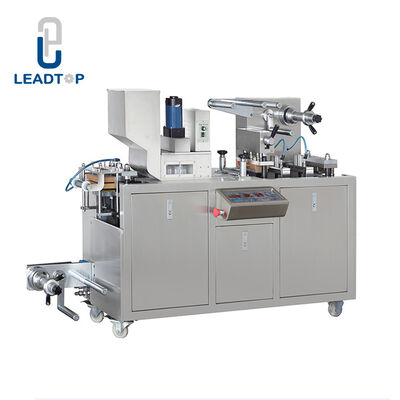

40mm Stroke Softgel Capsule Blister Packing Machine 1

40mm Stroke Softgel Capsule Blister Packing Machine 2



Main features

1.Frequency conversion stepless speed regulation, mechanical traction

2.Adjustable stroke, adjustable range of 30-100mm, convenient adjustment, accurate synchronization

3.Standard is equipped with four stations (molding, heat sealing, indentation, punching and cutting) and each station to install four posts, the adjustment is more convenient, stable operation;

4.The use of plate mold, positive pressure molding, batch number, indentation tangent, aluminum foil / aluminum automatic discharge;

5.The configuration of a set of universal feeder, the filling rate is as high as 99.5%;

6.The machine has the advantages of small size, light weight, adjustment and maintenance space, etc.
