Product Details:

Place of Origin: CHINA
Brand Name: LTPM
Certification: CE
Model Number: DPP-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 25 SETS Per month
Get Best Price Contact Now

Detail Information

Stroke (mm): 40-160 Can Be Manufactured As User’s Requirements Capacity: 45 Cutting/min
Packaging Type: Alu/PVC And Alu/Alu Package Control System: Micro Computer
Feeding:: Universal Feeder Power: 2.2kw
Standard Plate(mm): 80×57 Can Be Manufactured As User’s Requirements Air Pressure(Mpa): 0.4-0.6
Air Supply: ≥0.3 M³/min Mould Cooling: Tap Water Or Recycling Water
High Light:

CE Pharmaceutical Blister Packaging Machine

,

Alu Alu Pill Blister Packaging Machine

,

160mm Stroke Pharmaceutical Packaging Machines

Product Description

Alu Alu Pill Blister Packaging Machine Pharmaceutical Packaging Machines

Alu Alu Pill Automatic Pharmaceutical Blister Packaging Machine, Pharmaceutical Packaging Machines



It is the latest generation product in our company which adopting PLC Human Interface, with frequency Converter, high automation, easy operation, novel figure, all-round-functions, advanced technology, stable running, durable life, conforms to “GMP Standard”.


It is an ideal blister packaging machine for AL/PL, AL/AL, Paper/PL packaging. It has passed Province technology production authentication.It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-al, Al-plastic or paper-plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.It is the latest scientific products for pharmaceutical factory and healthcare factory as well as foodstuff factory; it can check on-line and eliminate the waste plate by itself. The machine adopts frequency converter and the whole system was controlled by PLC, which can be operated in man-machine interface. It is an ideal and popular packing equipment with high automation, easy for operation, advanced technology, full purpose, long durability and in accordance with GMP requirement. The products have passed the provincial science and technology appraisal.

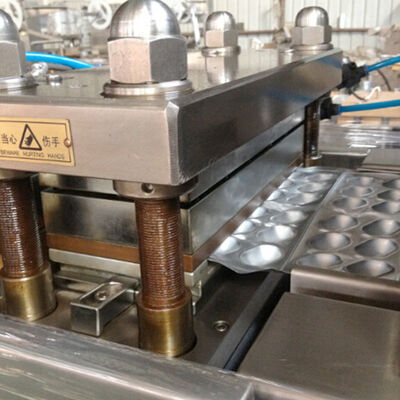

Alu Alu Pill Blister Packaging Machine Pharmaceutical Packaging Machines 0

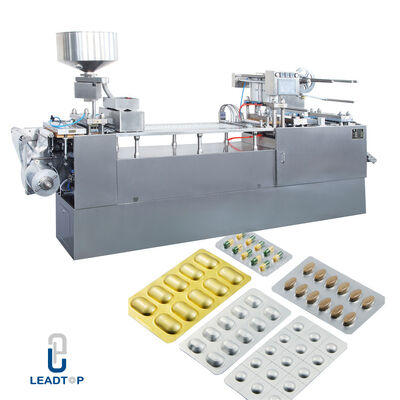

Alu Alu Pill Blister Packaging Machine Pharmaceutical Packaging Machines 1



Specifications:



MODEL: DPP-250
Blanking frequency (Cutting/min): 15-50
Sheet's quantity of one blanking (sheets): 1-4
Capacity (sheets/hour): 12,000
Adjustable scope of feed travel: (mm) 10-160
Max Forming area and depth (mm) 270×120×25
Capacity of air compressor(m3/min): ≥0.36
Power supply: 380V AC, 50 Hz, Three Phase
Total Power 8Kw

Wrapper specification (mm): PVC Film

Blister foil

Alu Alu Foil

Max.270× (0.15-0.5)

Max.270× (0.02-0.035)

Max. 270*(0.11-0.25)

Weight (kg): 1260Kg





Product design:
Product design: OEM/ODM custom design the shape and size of the blister product



Machine Details

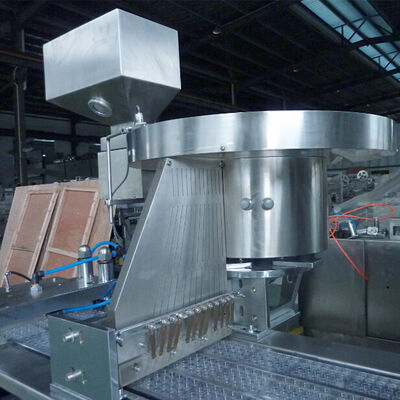

Alu Alu Pill Blister Packaging Machine Pharmaceutical Packaging Machines 2

Main features

1. Equipped with inductive self-checking mechanism, it can eliminate the waste plate with lack of particle, the qualified rate reaches 100%. (option);
2. The heat sealing station is fixed, the distances between forming, perforation and punching etc. Units can be adjusted freely on the same plane and it is suitable for all kinds of dimensions with high precision, strong adaptability;
3. Flat structure, registration heating, mechanic(positive pressure) forming, up and down net web, cylinder heating sealing , manipulator draw, adjustable stroke, lower noise and steady of operation;
4. Main transmission adopts imported gear reducer, with excellent performance, lower noise, long life, stable operation;
5. Cursor tracking register, sealing with tidiness and good-looking appearance. (The body can be manufactured separately in order to easily transport the machine into workshop). (Option);
6. It can be equipped with optical fiber or photographing checking device according to the customers’ requirements.

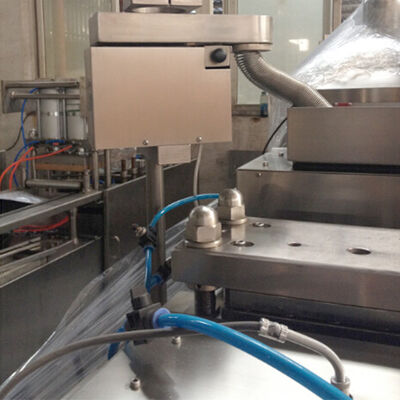

Alu Alu Pill Blister Packaging Machine Pharmaceutical Packaging Machines 3
