• 20pcs/Min Round Bottle Sticker Pasting Machine For Beer Beverage
  • 20pcs/Min Round Bottle Sticker Pasting Machine For Beer Beverage
20pcs/Min Round Bottle Sticker Pasting Machine For Beer Beverage

20pcs/Min Round Bottle Sticker Pasting Machine For Beer Beverage

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: MT-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Voltage: 220V/380V, 50/60Hz Capacity: 20-130 Carton/min
Bottle Diameter: 25-134mm Type: Labeling Machine
Condition: New Usage: Adhesive Labels Bottles Labeling Machine,Beverage Drinks,Food,etc
High Light:

Round Bottle Sticker Pasting Machine

,

Beer Beverage Sticker Pasting Machine

,

20pcs/Min Sticker Pasting Machine

Product Description

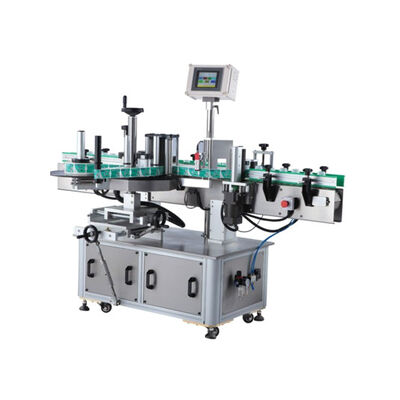

20pcs/Min Round Bottle Sticker Pasting Machine For Beer Beverage

This Type Of Machine Is Suitable For Glass Bottles, Plastic Bottles And Some Other Cylindrical Articles. Subuliform Objects Could Be Customized, And The Code Printer Is Optional. Its Design Is Delicate, Well Appearance, And Could Be Used Independently Or With Manufacture Lines.

Features:
1. Wide Application, Adapt To The Dimension Of 10-120mm Round Bottle Labeling.
2. High Accuracy, And The Error Of Label Joining Part Is No More Than 0.5mm
3. Adopt Extrusion Device To Feeding, Just Need To Put Work- Pieces, The Machine Can Automatically Finish Labeling.
4. Use Chuck Type To Adjust, Different Work-Piece Can Cut Over Easily.
5. Use The Synchronous Belt, The Stability Of The Mechanism Is Greatly Improved.
6. Desktop Design, Make The Structure Simple, Figure Small And Function Strong.
7. Anode Corundume Alloy Shelf And The Deluxe Computer White Electricity Box Make The Figure Beautiful And Generous.
8. Advanced Magic Eyes, Make The Sensitivity High For The Object And Label



Technical Parameters:

Model MT-130D
The standard system Step Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 200KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1800 (W) 1500(H)







Machine Details

20pcs/Min Round Bottle Sticker Pasting Machine For Beer Beverage 0

20pcs/Min Round Bottle Sticker Pasting Machine For Beer Beverage 1

20pcs/Min Round Bottle Sticker Pasting Machine For Beer Beverage 2







Products

20pcs/Min Round Bottle Sticker Pasting Machine For Beer Beverage 3
