Multifunctional Box Double Side Labeling Machine With Fixed Positioning

Multifunctional Box Double Side Labeling Machine With Fixed Positioning

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: MT-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Voltage: 220V/380V, 50/60Hz Capacity: 20-130 Carton/min
Bottle Diameter: 25-134mm Type: Labeling Machine
Condition: New Usage: Adhesive Labels Bottles Labeling Machine,Beverage Drinks,Food,etc
High Light:

Multifunctional Box Labeling Machine

,

134mm Bottle Double Side Labeling Machine

,

800W Adhesive Labeling Machine

Product Description

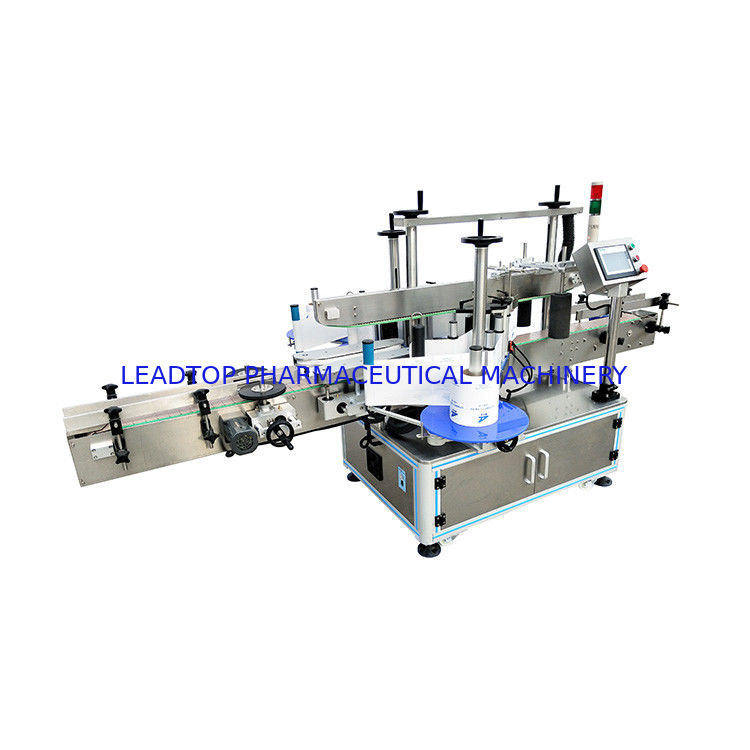

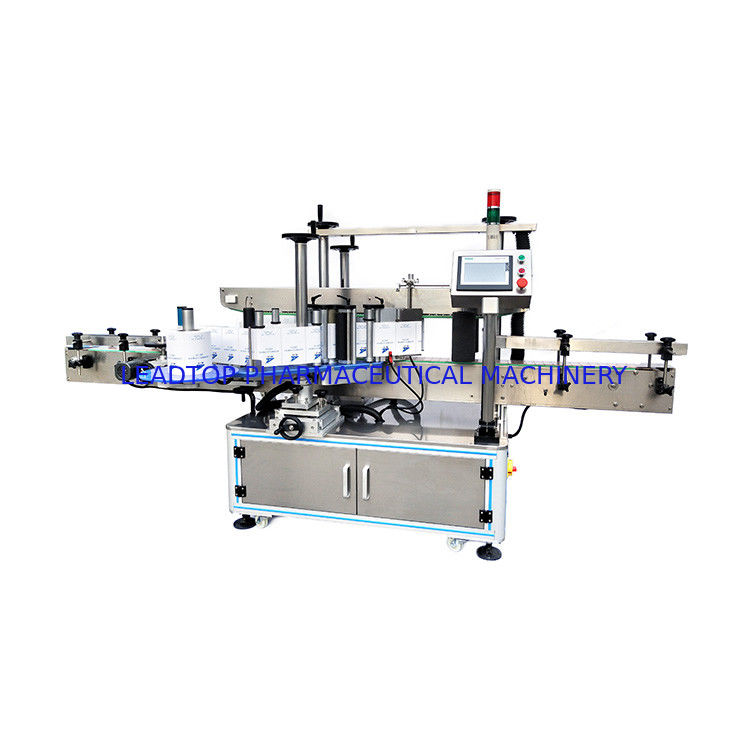

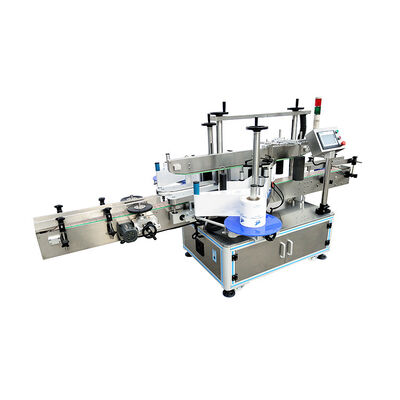

Multifunctional Box Double Side Labeling Machine With Fixed Positioning

Hot Sale Multifunctional Box Square Flat Bottle Automatic Double Side Labeling Machine With Fixed Positioning



This machine can be applied to the round and square bottle labeling of industries such as pharmacy , food , daily chemical and the like.
Optional automatic rotary bottle uncrambler machine, can be directly connected to the front production line, automatic bottle feeding into the labeling machine, increase efficiency
It can be equipped with ribbon printer machine, which can print production date and batch number on line, reduce the packaging process of bottle and improve production efficiency.



Work Process
1 the sensor detect the product,transmit the signal to labeling control system;

2 after the signal has been processed by the PLC,a label is send out at an appropriate time and attach on a desired position of the container;

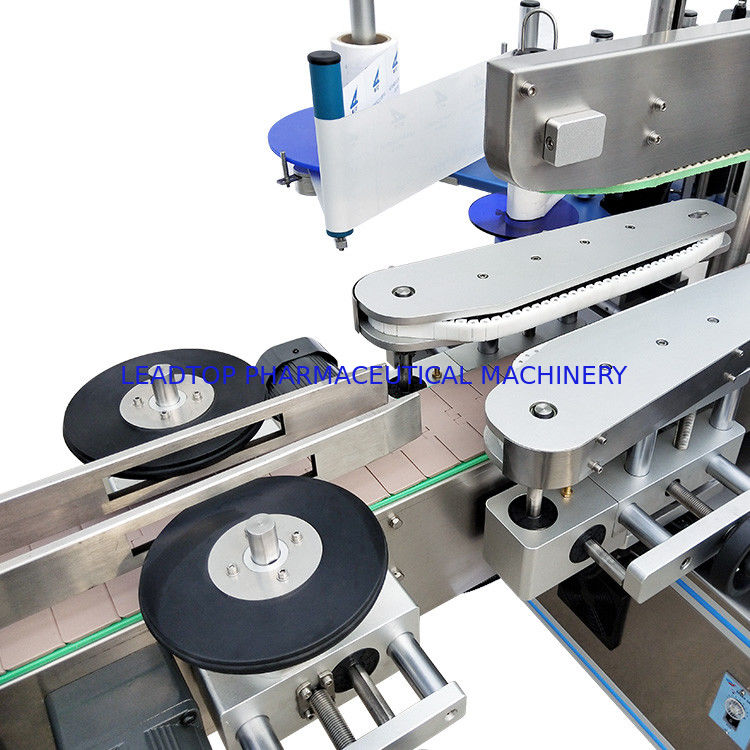

3 the container go through the press plate unit,the press wheel lead the rotation of container,the label is pressed to fit smoothly, the labeling operation is finished.



Technical Parameters:

Model MT-130D
The standard system Step Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 200KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1800 (W) 1500(H)





Remark:
1. Transparent plastic label need match special transparency sensor
2. Need date code shall match printer

Main Configuration:
1.Frame: SUS + aluminum alloy

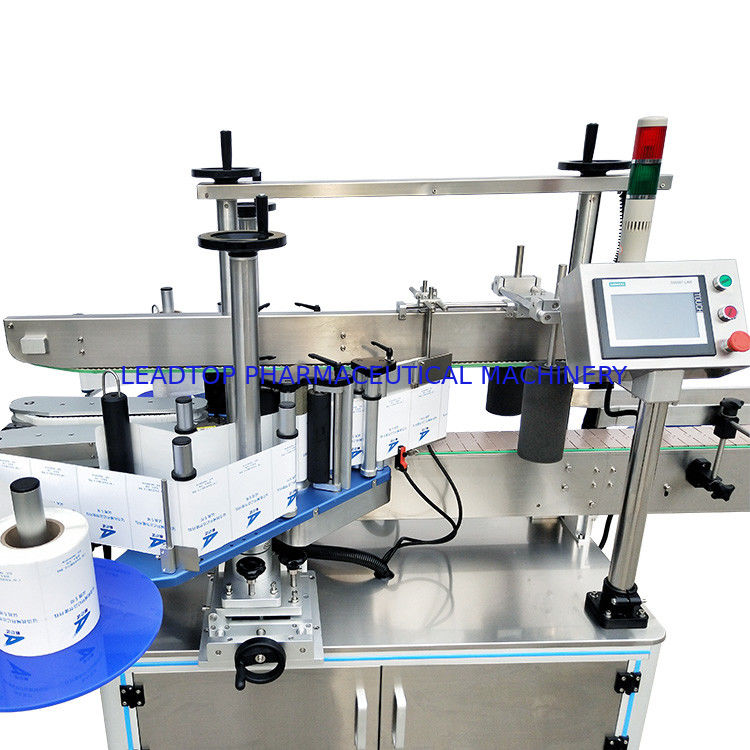

2. PLC + 7 inch touch screen: Siemens
3. Photo electronic sensor: German LEUZ
4. Relay and air switch: French Schneider
5. Converter: French Schneider
6. Conveyor motor: 750W China brand AC motor
7. Labeling driving motor: 750W French Schneider servo motor
8. Bottle dividing motor: 40W China brand AC motor
9. Bottle turning motor: 90W China brand AC motor
10. Exposed parts: SUS, aluminum alloy, 45 # steel,



Multifunctional Box Double Side Labeling Machine With Fixed Positioning 0
