Twin Heads Adhesive Sticker Labelling Machine For Detergent Bottle

Twin Heads Adhesive Sticker Labelling Machine For Detergent Bottle

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: MT-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Voltage: 220V/380V, 50/60Hz Capacity: 20-130 Carton/min
Bottle Diameter: 25-134mm Type: Labeling Machine
Condition: New Usage: Adhesive Labels Bottles Labeling Machine,Beverage Drinks,Food,etc
High Light:

Detergent Bottle Sticker Labelling Machine

,

Twin Heads Sticker Labelling Machine

,

130pcs/Min Adhesive Sticker Labelling Machine

Product Description

Twin Heads Adhesive Sticker Labelling Machine For Detergent Bottle

Automatic Twin Heads Square Round Flat Butter Detergent Bottle Sticker Adhesive Wrap Bottle Shampoo Labeling Machine



This in-line hot melt glue labeler provides stable labeling performance. Speed up to 6000 - 7000 bottles per hour, and easy change parts for variety of specifications. Suitable for OPP labels, on PET, HDPE round bottles. No glue jam as other spray system, the machine use easier glue-trans system and label cutting device, which makes the machine working stable and with good price.



Working process of round bottles labeling machine



Manually put bottles on conveyor or using a automatic botte turntable
And the bottles will be separated by bottle separator to keep the each bottle distance for guarantee the working stable
All the action are control by PLC, Automatic sense the bottle and labels, automatic apply the labels on the two sides of the bottles. And machine with function, no bottle no labeling, automatic warning if no label or lack of labels
After apply the labels on bottles, the label paste device will paste the labels to fasten the label on bottles.
Then bottle go to next processing





Advantages



Stable-Adapt Siemens PLC control and Panasonic servo motor Driven label for machine working stably and label accuracy. It is high performance and high efficiency.


Easy Operation-The touch screen can be in English, Spanish, French, Russia and any other language. It is easy operation and can be connect with other machines for production packaging line.


High precision-Accuracy from +-0.5-1mm.


wide application range-Widely using the bottle diameter from 25mm to 120mm, bottle heigh 25mm. to 300mm,If customized height of 10mm-150mm,length of 15mm-300mm, please kindly ask us.


High speed-Speed max can reach 150bottles per min subject to the label size and bottle size.
Europe standard-The labeling machine is made according to CE standard, Taiwan technology.



Technical Parameters:

Model MT-130D
The standard system Step Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 200KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1800 (W) 1500(H)



Detailed Images

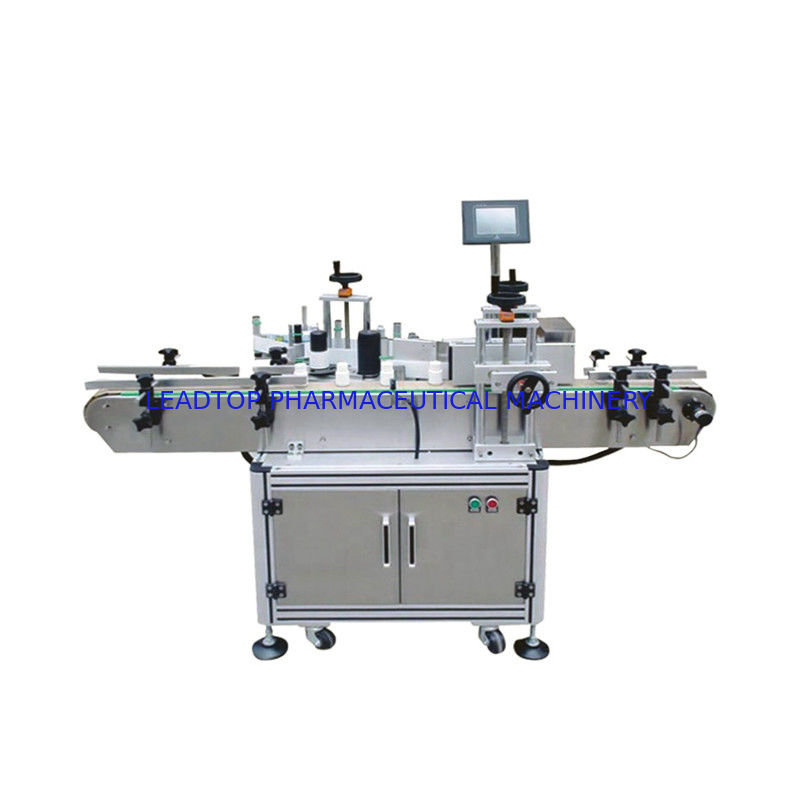

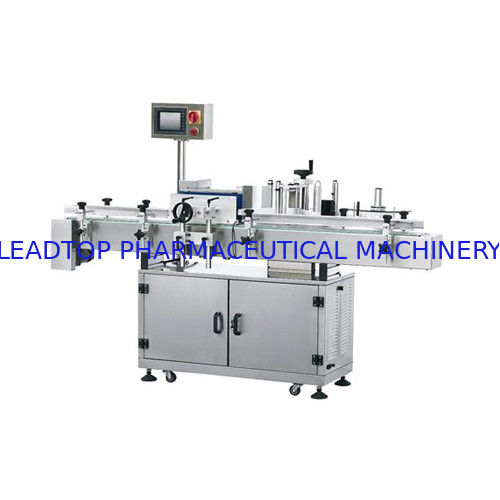

Twin Heads Adhesive Sticker Labelling Machine For Detergent Bottle 0



Products

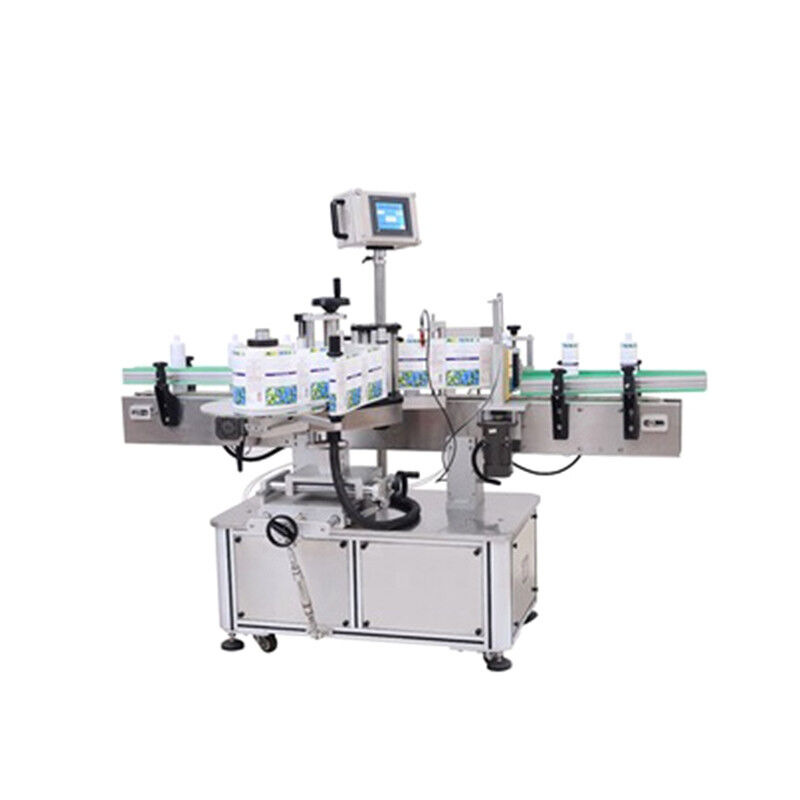

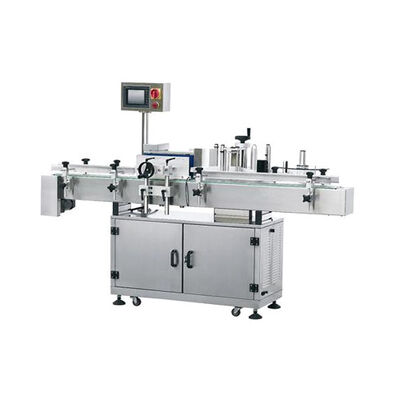

Twin Heads Adhesive Sticker Labelling Machine For Detergent Bottle 1
