Product Details:

Place of Origin: china
Brand Name: LTPM CHINA
Certification: CE
Model Number: NJP-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: In 25 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Brand: LTPM Quantity Of Mould Bores: 3pcs
Noise Standard: <80dB(A) Bores: 3
Filling Dosage: Power,pellets Dosing Precision: <±4%
High Light:

90000pcs/H Capsule Filler Machine

,

Encapsulation Capsule Filler Machine

,

3 Bores Capsule Filler Machine

Product Description

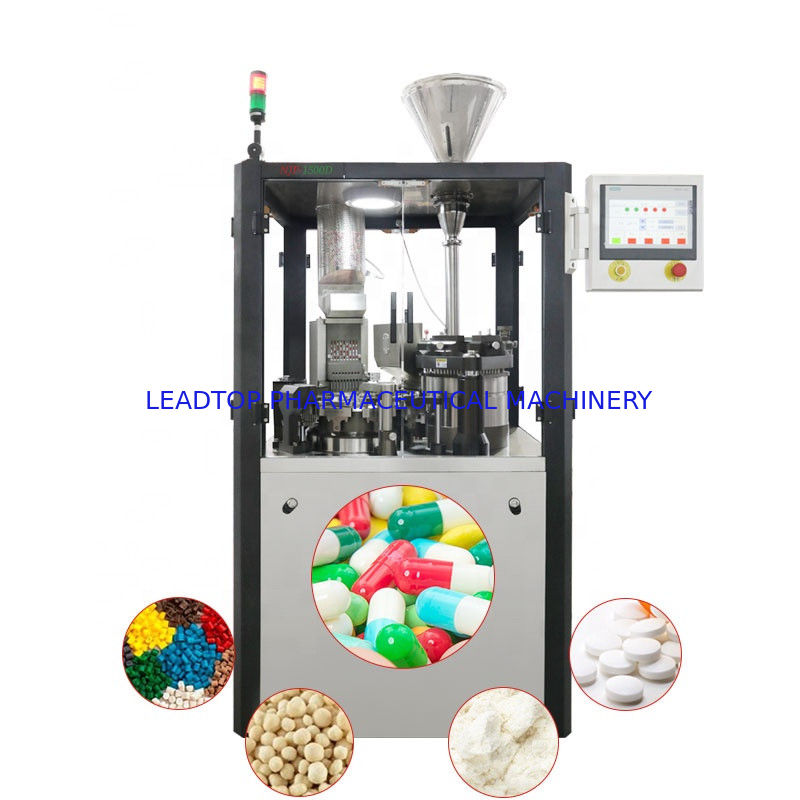

90000pcs/H 3 Bores Capsule Filler Machine Encapsulation

High Capacity 90,000pcs/h NJP-Series Capsule Filling Machine, 00# Capsule Filler Encapsulation



Through the continuous innovation and improvement of developed, NJP series full automatic rotary hard shell capsule filling machine has the advantages of accurate loading, stable operation and no dust.
The design of the equipment parts is precise, the operation is smooth, the mold can be replaced simply and quickly, and can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output.
The equipment design is fully in line with the requirements of CGMP specification.
It is an ideal intelligent equipment for filling Chinese, Western medicines and health care product.



Product overview:
NJP-type is a device adapted to small lot production.
1. The equipment is closed,clean and convenient;
2. The upper and lower module of the one-way movement,with the import sealing ring,sealing performance is good;
3. The combination of air blowing mold cleaing, no dust in the high speed filling mould hole;
4. Dimensional adjustment, the gap is uniform, reduce the leakage of powder, with a cacuum automatic cleaning function;
5. With the protection of human and machine safety device,automatic shutdown alarm, equipment running stable,reliable quality.



OPERATION FLOW

90000pcs/H 3 Bores Capsule Filler Machine Encapsulation 0





Technical Parameters

Model
NJP200
NJP400
NJP600
NJP800
NJP1200
NJP2000
NJP3500
Filling dosage form
Powder & granule, pellet or tablet
Output (pcs/min)
200
400
600
800
1200
2000
3500
Capsule size
No.00 — No.5
Capsule qualified rate
>99%
>99%
>99%
>99%
>99%
>99%
>99%
Dosing Precision
<±4%
Power Supply
380V/50Hz
Power (kW)
3
3
3
4
5
8
10.5
Noise
Lower 80dBA
Overall size (mm)
610x670x1700
730x950x1700
840x960x1800
840x960x1800
910x980x1800
1160x1250x1900
1170x1560x2000
Net weight (kg)
700
800
900
900
1100
1500
2200

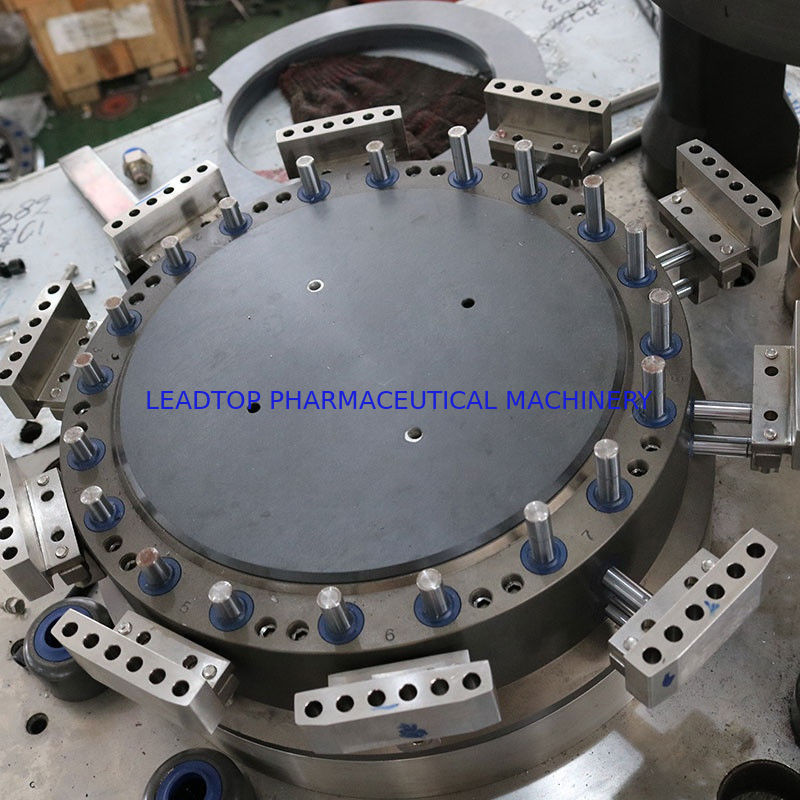

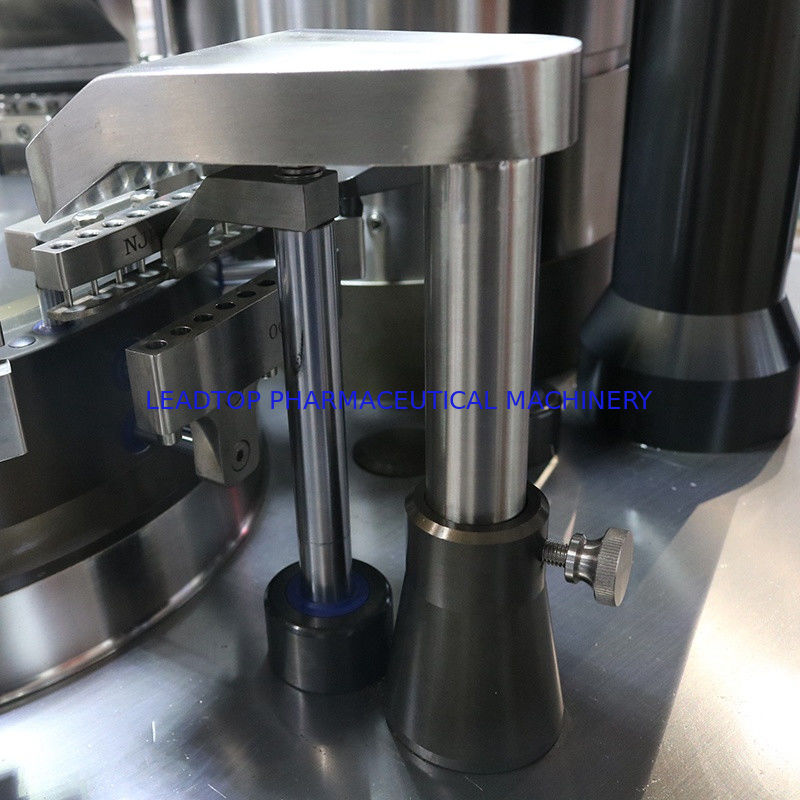

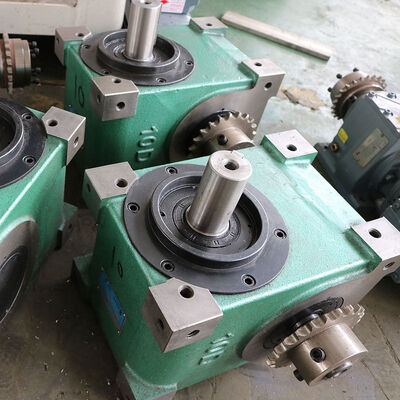

Machine Details

90000pcs/H 3 Bores Capsule Filler Machine Encapsulation 1

90000pcs/H 3 Bores Capsule Filler Machine Encapsulation 2

90000pcs/H 3 Bores Capsule Filler Machine Encapsulation 3

90000pcs/H 3 Bores Capsule Filler Machine Encapsulation 4

90000pcs/H 3 Bores Capsule Filler Machine Encapsulation 5

90000pcs/H 3 Bores Capsule Filler Machine Encapsulation 6

90000pcs/H 3 Bores Capsule Filler Machine Encapsulation 7

90000pcs/H 3 Bores Capsule Filler Machine Encapsulation 8

90000pcs/H 3 Bores Capsule Filler Machine Encapsulation 9

90000pcs/H 3 Bores Capsule Filler Machine Encapsulation 10

90000pcs/H 3 Bores Capsule Filler Machine Encapsulation 11















Applications



Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill),also can be used to fill vitamin, foodstuff and animal drug, etc.
