• Automatic Pillow Frozen Food Packaging Machine For Dumpling

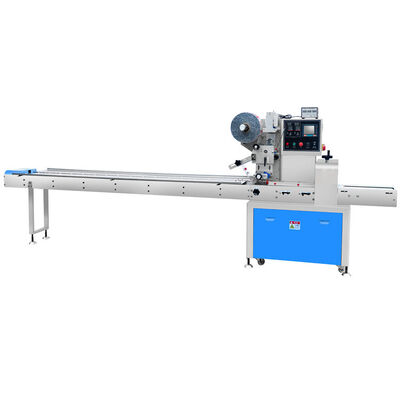

Automatic Pillow Frozen Food Packaging Machine For Dumpling

Automatic Pillow Frozen Food Packaging Machine For Dumpling

Product Details:

Place of Origin: Zhejiang Province,China
Brand Name: LTPM CHINA
Certification: CE, GMP, SGS, BV
Model Number: KD-260

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 45 sets/month
Get Best Price Contact Now

Detail Information

Machine: Pillow Packaging Machine Max.Film Width: 260mm
Max Capacity Of Packing: 20-120 Pcs/ Min Film Thickness: Film Thickness
Bag Length: 60-300 ( Do Not Exceed This Size ) Packing Width: 25-150mm
High Light:

Pillow Frozen Food Packaging Machine

,

Dumpling Frozen Food Packaging Machine

,

120pcs/Min Frozen Food Packaging Machine

Product Description

Automatic Pillow Frozen Food Packaging Machine For Dumpling

Automatic Pillow Frozen Food Packaging Machine For Dumpling



Advantage
1. Double frequency converter control, bag length is set to cut, no need to adjust the empty walk, one step in place, saving time and film.
2. Automatic tracking of high sensitivity electric eye, no manual adjustment is needed after setting. The sealing and cutting size is accurate, and the sealing is firm and beautiful.
3. Temperature independent PID intelligent control, stable temperature control, better suitable for various packaging materials.
4. Fault self diagnosis function, the fault display is clear at a glance.
5. Production automatic counting, quantitative production, packaging output accurate and clear.
6. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
7. The material position of packaging products is parameterized without manual and mechanical adjustment of packaging material level.
8. It can store the parameters of several groups of packaging products. When changing the packaging products, the normal production can be achieved by direct switching, without the need to adjust the machinery. Change packaging products, save time and film.
9. Intelligent and humanized parameter design, which can be used skillfully by ordinary personnel in a short time. Reduce the professional skill requirements for operators.
10. This model can be configured with single servo, double servo and full servo according to the needs of users.

Main Features

1.PLC Touch screen , easy to operate

2.Multifunction, suitable for various packing film and products and size

3.Stable performance,servo system with international famous brands

4.High-accuracy,photoelectric sensor tracking,prevent empty bags

5.Adjustable.speed and Temperature can be modified for different package size. 6.Variety of optional devices are available,such as Date coder,Labels applicator,etc.

Automatic Pillow Frozen Food Packaging Machine For Dumpling 0



Automatic Pillow Frozen Food Packaging Machine For Dumpling 1



Technical Parameters
Max.Film width
260mm
Max capacity of packing
20-120 pcs/ min
Film thickness
Film thickness
Bag Length
60-300 ( Do not exceed this size )
Packing width
25-150mm
Packing Height
≤80mm
Power Supply
220V 2.4 kW
Overall dimensions(L*W*H)
2600*750*4500mm
Total Weight
680kg

Product Application

It is used in automatic bag making of various mask,melons and fruits. The production line can be connected before and after. Such as: lemon,

orange, bell pepper, banana, peach, mangosteen, lotus, apricot, fig, apple, cucumber, etc.

Option function:Plastic bag punching, print production date, automatic weighing and printing labels, automatic labeling, etc

Packaging material requirement :Printed or unprinted roll film

Automatic Pillow Frozen Food Packaging Machine For Dumpling 2







The length of the machine can be appropriately shortened according to customer requirements. The machine can also be converted to dual servo control by variable frequency control.





Packing Type

Automatic Pillow Frozen Food Packaging Machine For Dumpling 3



Packing&Shipping
Machine Packing Details:

1)Dedust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5)Packing Modules into Plywood Cases
6)Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
