Horizontal Box Motion Pillow Packaging Machine 120pcs/Min

Horizontal Box Motion Pillow Packaging Machine 120pcs/Min

Box Motion Pillow Packaging Machine

120pcs/Min Pillow Packaging Machine

150mm Width Pillow Packaging Machine

Place of Origin:

Zhejiang Province,China

Brand Name:

LTPM CHINA

Certification:

CE, GMP, SGS, BV

Model Number:

KD-260

Contact Us

Request A Quote
Product Details
Machine:
Pillow Packaging Machine
Max.Film Width:
260mm
Max Capacity Of Packing:
20-120 Pcs/ Min
Film Thickness:
Film Thickness
Bag Length:
60-300 ( Do Not Exceed This Size )
Packing Width:
25-150mm
Product Description

Horizontal flow wrap machine is ideal for suppliers of products that must be packaged individually. Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film. The result is a tightly fitted flexible package with a horizontal back seal and end seal.

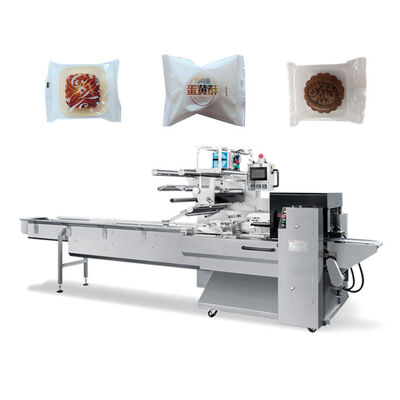

Horizontal Box Motion Pillow Packaging Machine 120pcs/Min 0


Main Features

1) Three servo motor driven; no product no pack; auto feeding.

2) Human machine interface,PLC program.

3) Photo cell sensor, auto centering device.

4) Security protective measures reach EU CE certificate.

5) Box motion type end sealer with hermetic sealing.

6) Auto control for center sealer; opening or closing.

7) Cantilevered touch screen.

8) 10 recipes: keep up to 10 products recipes.

9) Adjustable bag former; gusset fold device.

10) Alarm device for emergency stop.

11) MIS (Misplaced Item Skip) device.

Technical Parameters
Max.Film width
260mm
Max capacity of packing
20-120 pcs/ min
Film thickness
Film thickness
Bag Length
60-300 ( Do not exceed this size )
Packing width
25-150mm
Packing Height
≤80mm
Power Supply
220V 2.4 kW
Overall dimensions(L*W*H)
2600*750*4500mm
Total Weight
680kg





Product Application

Three Servo Automated Horizontal Box Motion Bakery Packaging Machine, apply to solid block products, especially bakery products such as mooncake, bread, cakes and so on.

Horizontal Box Motion Pillow Packaging Machine 120pcs/Min 1
