Chemical Gel Homogenizing Vacuum Emulsifying Machine

Chemical Gel Homogenizing Vacuum Emulsifying Machine

Product Details:

Place of Origin: China
Brand Name: LTPM CHINA
Certification: CE,SGS
Model Number: LTRZ-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: T/T, L/C, D/P, Cash, Credit Card, Paypal
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Mixer Type: Homogenizer Application: Viscous Fluid, Medicine Processing, Chemicals Processing
Voltage: 380V 50HZ Contact Part Material: SUS316
Using Life: More Than 15 Years Pot Working Pressure: -0.090 Mpa
Jacket Working Pressure: 0.2Mpa Spare Parts: One Year Spare Parts And Tools
High Light:

Homogenizing Vacuum Emulsifying Machine

,

Gel Vacuum Emulsifying Machine

,

Chemical Vacuum Emulsifying Machine

Product Description

Chemical Gel Homogenizing Vacuum Emulsifying Machine

Automatic Vacuum Homogenizing Emulsifier/ Gel Emulsifier Making Machine/Chemical Machinery Equipment



Vacuum emulsifying machine, high shear homogenizer, cosmetic cream mixer means the material in a vacuum state, the use of high-shear emulsifier efficient, rapid and evenly distributed one phase or multiple phase to another phase, and each phase under normal circumstances (such as oil and water phase) are mutually exclusive.

Hot Sale Shampoo Vacuum Emulsifying Mixer, Face Cream Making Machine composed of pretreating boilers, vacuum emulsifying and blending boiler, hydraulic lifting system, dumping system, electric control system and work platform etc.

Suitable for production of ointment and cream products in cosmetic and pharmaceutical plants. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.

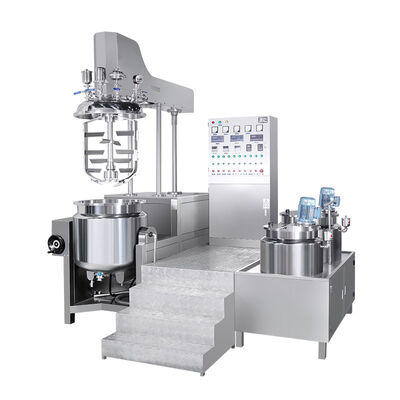

Chemical Gel Homogenizing Vacuum Emulsifying Machine 0





Features:

Hot Sale Shampoo Vacuum Emulsifying Mixer, Face Cream Making Machine Strictly according to GMP standard design and production, polishing meet 300U(sanitary standrad);
The inner parts adopts 316 stainless steel;
Bearing adopts Japanese NSK;
Imported frequency conversion control(Taiwan Delta)
Machinery sealing with excellent sealing quality and performance, can continuously work 24 hours;
Scraper blending and stable blending work at the same time



Equipment Characteristics:
- Electric heating and steam heating
- Wide suitability
- Labor saving
- Easy to use and maintain



Product section view

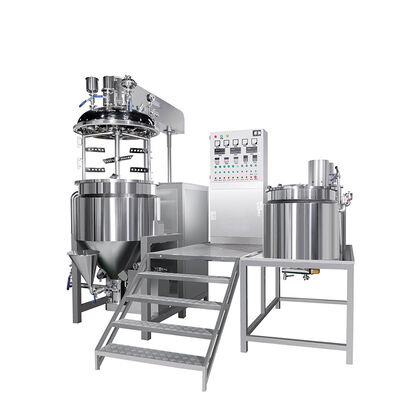

Chemical Gel Homogenizing Vacuum Emulsifying Machine 1



Material Information:
80% of the main parts of our products are provided by world famous suppliers.



Specifications:





Capacity Volume 200L
Kettle Cover Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
Mixing pot Material Inner layer: SUS316L thickness: 3mm
Middle layer: SUS304 thickness: 2mm
Outside layer: SUS304 thickness:2mm
configuration Bottom material exhaust, size: 1.5”
Temp. sensor (0-199℃)
Electrical heating: 12kw, cooling water inlet
Stirring system Homogenizer

1.Material: SUS316L; standard homogenizer

2. Power: 4 kw/380/50Hz; RPM: 0--4000R/Min

Stirring scrap and middle stirring Material: SUS316L,Scrap material: PTFE

1. Stirring scrap and middle stirring use the same motor

2,Power:1.5kw/380V/50Hz;RPM:0~86r/min(Frequency control)

3. Stirring scrap and middle stirring rotating the opposite direction

Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system

1. Vacuum pump: water recycle, power 2.35kw/380V/50Hz

2. With pressure sensor (during vacuum condition, hydraulic can not open)

Heating method Jacket electrical heating/Seam Heating
Exhaust method Electric doom and bottom discharge or positive pressure discharge material
Pressure Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box SUS304 , 1.2mm thickness
Dimension 3500mm×2450mm×2250~3150 mm
Shelf is SS, platform with raised platform and SS guardrail
Spare parts One year spare parts and tools
Guarantee One year
Using life More than 15 years






Oil pot

Design volume 100L
Working capacity 90L
Stirring power 1.1kw
Stirring speed 1400 RPM
Heating power 12 Kw



Water pot

Design volume 160L
Working capacity 150L
Stirring power 1.1kw
Stirring speed 1400 RPM
Heating power 12 Kw

Product Application
Daily Chemical & Cosmetics Industry:
1. Such as baby cream, skin cream face cream, shaving cream, shaving cream, cream shampoo, toothpaste, cold cream, sunscreen cream, face cleanser, moisture cream, detergent, shampoo etc;
2. Food Industry:
Sauce, cheese, oral, nutrition, infant food, chocolate, sugar and so on., tomato paste etc;
3. Pharmacy Industry:
Latex, emulsions, salves (ointments), oral syrup, liquid. etc;
4. Chemical Industry:
Latex, sauce, saponification products, paints, coatings, resins, adhesives, lubricants and the like.
Chemical Gel Homogenizing Vacuum Emulsifying Machine 2

Customer Workshop
Chemical Gel Homogenizing Vacuum Emulsifying Machine 3
