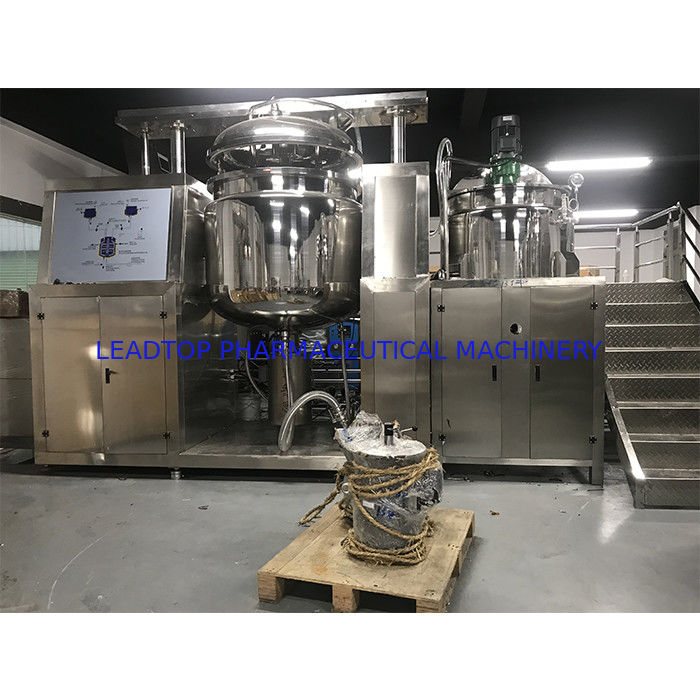

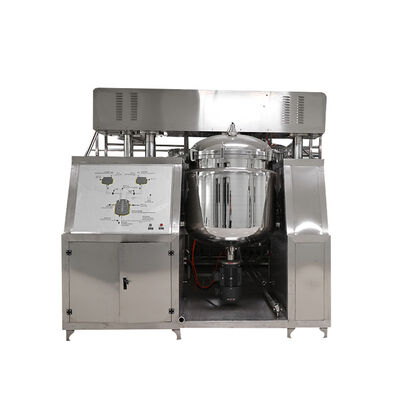

SUS316 Cosmetic Lotion Making Vacuum Emulsifying Mixer

SUS316 Cosmetic Lotion Making Vacuum Emulsifying Mixer

Lotion Making Vacuum Emulsifying Mixer

Cosmetic Vacuum Emulsifying Mixer

SUS316 Vacuum Emulsifying Mixer

Place of Origin:

China

Brand Name:

LTPM CHINA

Certification:

CE,SGS

Model Number:

LTRZ-Series

Contact Us

Request A Quote
Product Details
Mixer Type:
Homogenizer
Application:
Viscous Fluid, Medicine Processing, Chemicals Processing
Voltage:
380V 50HZ
Contact Part Material:
SUS316
Using Life:
More Than 15 Years
Pot Working Pressure:
-0.090 Mpa
Jacket Working Pressure:
0.2Mpa
Spare Parts:
One Year Spare Parts And Tools
Product Description

Manufactures and supplies high-quality cosmetic mixer equipment, including tanks and vessels for the cosmetics and personal care product application. Our cosmetic emulsifier vessel is built to process and store cosmetics, baby products, liquid soap, body wash, lotions, conditioner, mouthwash, shampoo, hair gel, and other personal care products.Like face cream, Vaseline, ointment, shampoo, cosmetics cream, detergent, liquid soap, tooth paste, mascara, Ultrasonic gel, Shoe polish, lotion, baby cream, hair color cream, skin care product, facial cream, shower cream, shaving cream, cold cream, sunscreen cream, face cleanser, moisture cream, hair gel, skin cream, sauce, chocolate, cake gel, tomato paste, ketchup, tomatto sauce...



Main Features

The Contact Part Of The Material Is Made Of SUS316 Stainless Steel



Scraping Wall Type Agitation, External Agitation With Teflon Scraper, At Anytime To Cater To The Shape Of The Stirring Tank, Clean The Wall Of The Pot Sticky. Mirror Polishing Of Hot Body And Pipe Surface



The Main Mixing Adopts Variable Frequency Variable Speed Device To Reduce The Formation Of Bubbles When The Temperature Is Low And The Consistency Is High



High Speed Homogenizer, Strong Solid And Liquid Raw Materials In Liquid Washing Production Can Quickly Dissolve Refractory Materials Such As AES/AESA/LSA, Save Energy Consumption,Greatly Shorten The Production Cycle



Stainless Steel Electric Control Cabinet Can Completely Change The Operation Of Monitoring Equipment,And Can Display Temperature, Stirring Speed And Other Data





Specifications:





Capacity Volume 200L
Kettle Cover Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
Mixing pot Material Inner layer: SUS316L thickness: 3mm
Middle layer: SUS304 thickness: 2mm
Outside layer: SUS304 thickness:2mm
configuration Bottom material exhaust, size: 1.5”
Temp. sensor (0-199℃)
Electrical heating: 12kw, cooling water inlet
Stirring system Homogenizer

1.Material: SUS316L; standard homogenizer

2. Power: 4 kw/380/50Hz; RPM: 0--4000R/Min

Stirring scrap and middle stirring Material: SUS316L,Scrap material: PTFE

1. Stirring scrap and middle stirring use the same motor

2,Power:1.5kw/380V/50Hz;RPM:0~86r/min(Frequency control)

3. Stirring scrap and middle stirring rotating the opposite direction

Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system

1. Vacuum pump: water recycle, power 2.35kw/380V/50Hz

2. With pressure sensor (during vacuum condition, hydraulic can not open)

Heating method Jacket electrical heating/Seam Heating
Exhaust method Electric doom and bottom discharge or positive pressure discharge material
Pressure Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box SUS304 , 1.2mm thickness
Dimension 3500mm×2450mm×2250~3150 mm
Shelf is SS, platform with raised platform and SS guardrail
Spare parts One year spare parts and tools
Guarantee One year
Using life More than 15 years






Oil pot

Design volume 100L
Working capacity 90L
Stirring power 1.1kw
Stirring speed 1400 RPM
Heating power 12 Kw



Water pot

Design volume 160L
Working capacity 150L
Stirring power 1.1kw
Stirring speed 1400 RPM
Heating power 12 Kw


Machine Part Details

SUS316 Cosmetic Lotion Making Vacuum Emulsifying Mixer 0

                                                                     Touch Screen



SUS316 Cosmetic Lotion Making Vacuum Emulsifying Mixer 1

                                      Water And Oil Storage Tank



SUS316 Cosmetic Lotion Making Vacuum Emulsifying Mixer 2

                                              Stirring Motor



SUS316 Cosmetic Lotion Making Vacuum Emulsifying Mixer 3

                                                    Mixing Tank


Product Application
SUS316 Cosmetic Lotion Making Vacuum Emulsifying Mixer 4
