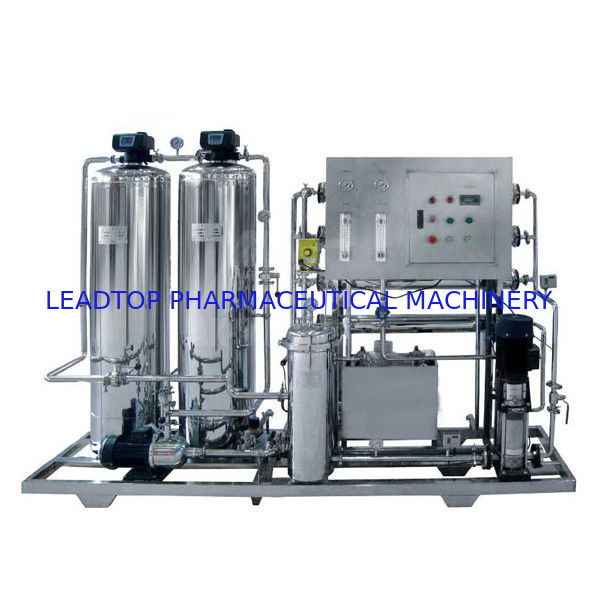

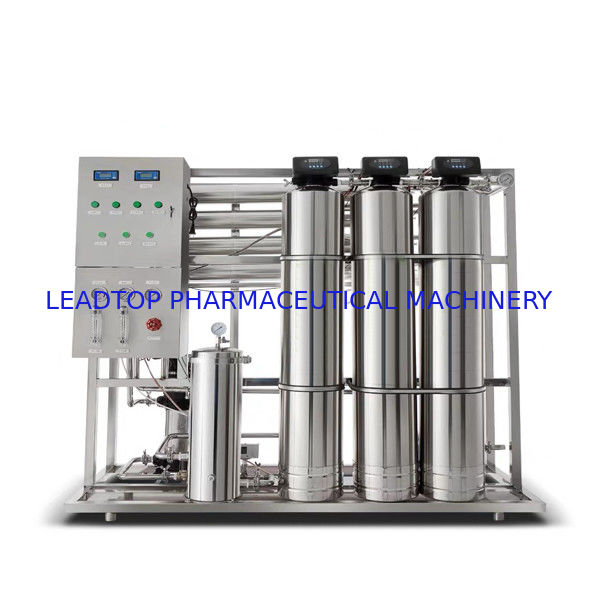

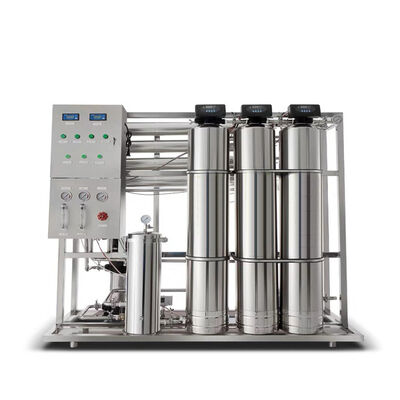

1000LPH FRP SS304 Ro Reverse Water Purification Machines

1000LPH FRP SS304 Ro Reverse Water Purification Machines

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: WP

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 20sets/month
Get Best Price Contact Now

Detail Information

High Light:

SS304 Water Purification Machines

,

FRP Water Purification Machines

,

1000LPH Water Purification Machines

Product Description

1000LPH FRP SS304 Ro Reverse Water Purification Machines

Material of reverse osmosis system / EDI?
We have different material for different application. Before choosing RO System and Type please contact with our Pro- fessional CHUNKE technical service.

1.Tanks: Fiber glass or Stainless Steel 304/316
2. Pipes: U-PVC or stainless steel filter
3. Frame: Stainless Steel 304 or 316
4. Filter Housing: U-PVC or SS304 or SS316
5. Memrane Housing: FRP or SS304 or SS316

Of course, every application is unique and we want to make sure you find the exact solution that you are looking for, so reach out to CHUNKE professional and ask all the questions you have to find your industrial water filtration solution.



1000LPH FRP SS304 Ro Reverse Water Purification Machines 0



Raw water→raw water tank → raw water booster pump→mechanical filter→activated carbon filter →precise filter →high-pressure pump →Reverse Osmosis Components→pure water tank→pure water

1000LPH FRP SS304 Ro Reverse Water Purification Machines 1



Specifications:



Model WT-RO-1T/H
Capacity 1000LPH
Power supply AC220V / AC380V / 415V±5% 50HZ / 60HZ
RO stage According to client's demands
Desalt rate 99%
Operation pressure 0.7-1.5Mpa
PH of raw water 2-11
Conductivity of raw water 1000US/CM

































1000LPH FRP SS304 Ro Reverse Water Purification Machines 2

Raw water pump
We use high quality CNP pump as raw water pump.Requested access to the system's raw water has a stable flow and pressure, its purpose is to prevent water fluctuations have an impact on the system operation to ensure the stability of the system into the water.

1000LPH FRP SS304 Ro Reverse Water Purification Machines 3
pretreatment process
1.Silica sand filter:It can remove the suspended solids and gluten particles in the water, thus reduce turbidity of water. 2.Active carbon filter:It can remove the pigment, smell and a large number of biological organisms in the water. 3.Sodium ion exchanger :It can remove calcium and magnesium ions in the water, so as to soften the water. 4.Precision filter:It can ensure that granularity of the water into reverse osmosis membrane is less than 0.1 um.
1000LPH FRP SS304 Ro Reverse Water Purification Machines 4
quartz sand filter
Raw water into the filter for a simple mechanical filter, mainly to remove suspended solids in water, colloidal particles and other large impurities in the water
when the water pressure and the pressure difference over 10Psi (0.7kg/cm2) or water SDI> 5, the need for backwashing .
In general, before running back wash once a day.

1000LPH FRP SS304 Ro Reverse Water Purification Machines 5
activated carbon filter
Activated carbon is used wood, coal, shell (nuclear) and other carbonaceous material through chemical or physical method activation made. It has a very large number of pores and specific surface area, which has a strong physical adsorption capacity, the effective adsorption of organic pollutants in water. Primarily to remove organic matter in raw water, chlorine, odor, color, etc., so that the original residual chlorine in water ≤ 0.1mg / l, effective protection of RO membrane from chlorine damage to parts of activated carbon
1000LPH FRP SS304 Ro Reverse Water Purification Machines 6
water softer
The sodium ion exchange softening is used to remove water calcium and magnesium ions , preparation of demineralized water of ion exchange . The composition of the water hardness , calcium, magnesium , and softening in the ion exchange resin to exchange the water calcium and magnesium ions by sodium ion exchange , so that the water is not easy to form carbonate scale and sulfate scale , resulting in softened water
1000LPH FRP SS304 Ro Reverse Water Purification Machines 7
Precision Filter
The precision filter, also known as cartridge filter housing,
is used to prevent impurities like particles from entering high pressure pump and reverse osmosis membrane module.
The filtration precision ranges form 0.10μm to 60μm and it is free from influences feed pressure fluctuation.

1000LPH FRP SS304 Ro Reverse Water Purification Machines 8
RO main machine
This system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles, organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards.

1000LPH FRP SS304 Ro Reverse Water Purification Machines 9
ozone mixing tower and generator
Ozone generator is used to produce ozone and provide raw materials for mixing tower. The ozone mixing tank is a kind of water
treatment equipment. It is to fully mix water and ozone, thus achieving purposes of sterilization, retaining freshness and
avoiding secondary pollution for the producing of mineral pure water.
1000LPH FRP SS304 Ro Reverse Water Purification Machines 10
1000LPH FRP SS304 Ro Reverse Water Purification Machines 11
