Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE, GMP
Model Number:
MT-Series
Contact Us
Video

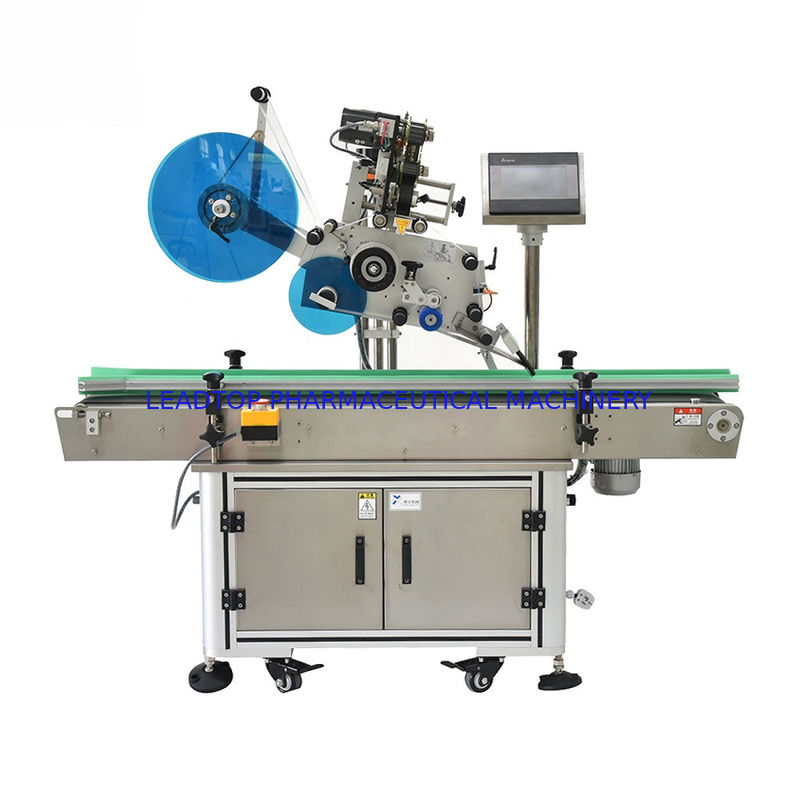

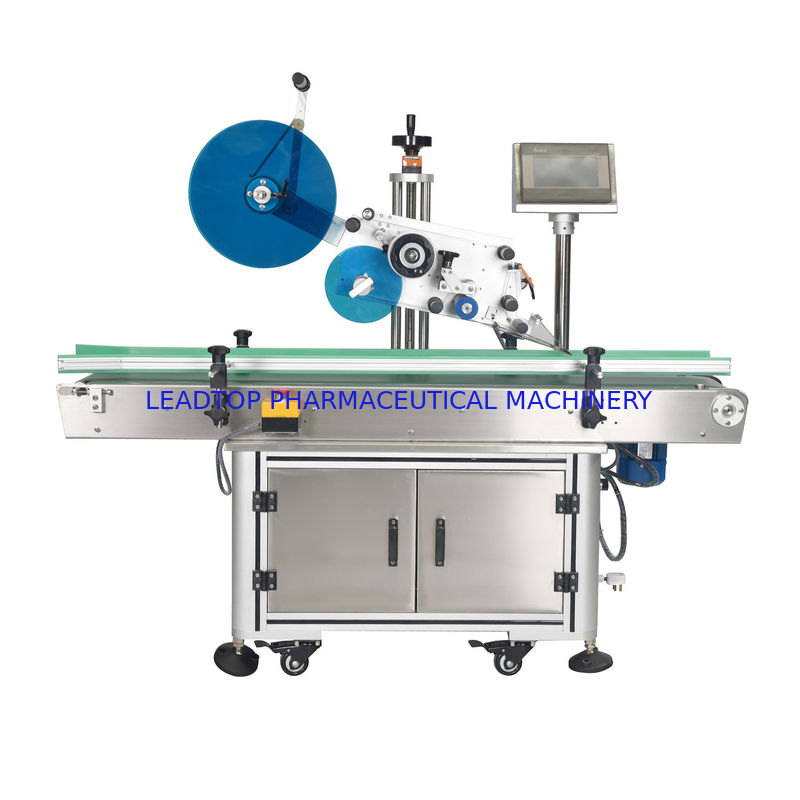

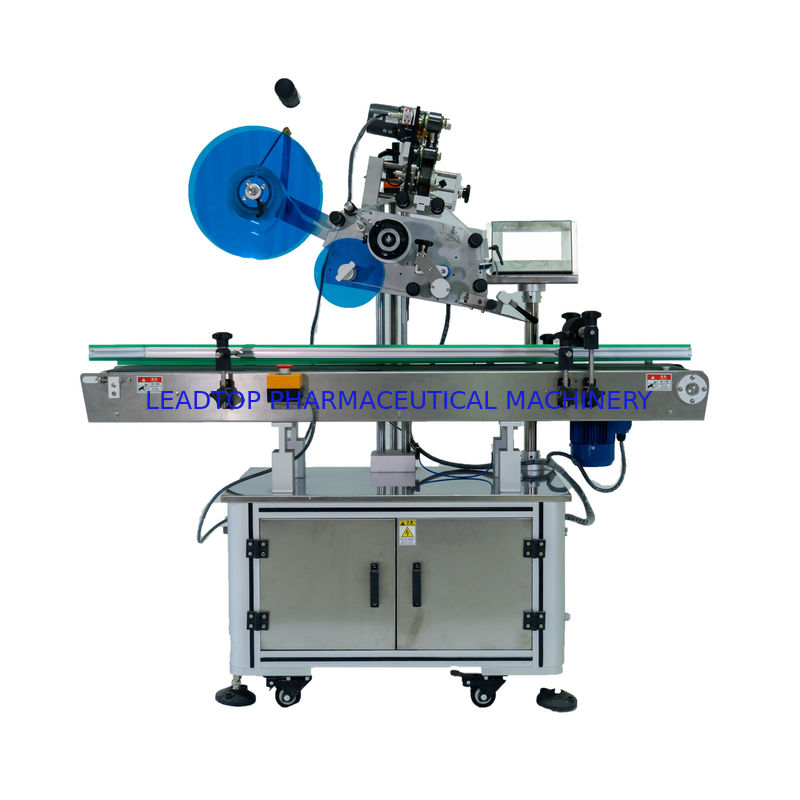

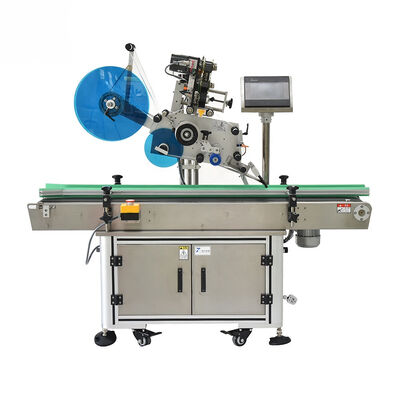

Top Flat Surface Labeling Machine For Box/Carton/Paper Sheet, Bag/Pouch, Bottle/Jar/Can/Tin etc.
Ⅰ. Application:
NY-817 Flat surface plane labeling machine can work for all kinds of objects with plane, flat surface, side surface or large curvature surface such as bags, paper, pouch, card, books, boxes, jar, cans, tray etc.Widely used in food, medicine, daily chemical, electronic, metal, plastics and other industries. It has optional date coding device, realize date coding on stickers.
Ⅱ. Features You Can Not Ignor:
1. It can label for any products with flat surface. More flexible arrangement for manufacturing schedule.
2. The labeling head convenient to adjust, the labeling speed is automatically synchronous with the conveyor belt speed to ensure precise labeling.
3. The speed of conveyor line, the speed of pressure belt and the speed of label output can be set and changed by the PLC human interface.
4. Use famous brand PLC, stepping or servo motor, driver, sensor, etc, good quality components' configuration.
Ⅲ. Other Corollary Equipment Introduction:
1. Different labeling solutions for flat surface, round labeling, taper wraping labeling can be supplied. One product can accomplish one sticker, two stickers or more stickers labeling, also can one sticker to finish one side, two sides, three sides or more sides labeling.
2. We can supply you the optional rotary table bottle unscrambler machine, which can be connected directly before the labeling machine, the operators can put the bottles on the rotary table, then the rotary table will send the bottles to the labeling machine to the labeling machine automatically.
3. It also can match with weight checker, metal detector, bottle filling machine, capping machine, can seaming machine, cover impressing machine, inkjet /laser / TTO printer etc.
Remark: The flat top labeling machine also can match with paging system, then work for all kinds of objects with plane, flat surface such as card, bags, books, unshaped boxes, cartons, paper,pouch and other packaging bag etc. Adopts automatically separate stacks of packaging bags and convey single piece onto the conveyor belt so as to facilitate labeling machine to stick each sticker onto objects and thus reduce the trifles of manual paging to improve labeling efficiency. Labeling samples as below:
Technical Parameters:
| Model | MT-130D |
| The standard system | Step Motor |
| Capacity | 20-130 carton/min |
| Operating Direction | Left or right |
| Label speed | ≤35 m/min |
| Tags volume inner diameter | 76 mm |
| Tags volume outer diameter | 350 mm (max) |
| Label Specifications | Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand) |
| Labeling accuracy | ±1.0mm (subject to the roughness of the plane) |
| Weight | 200KGS |
| Total motor power | 800W |
| Power supply | AC220V 50/60HZ Single phase |
| Size appearance (mm) | 2200 (L) 1800 (W) 1500(H) |
Product Detailed
PLC Touch Sreen Operation
Human-computer interaction interface with operation teaching function, parameter modification intuitionistic clear, various
functions switching simple
Famous Brand Sensor
Label detection electric eye, product detection electric eye and optical fiber amplified adopts famous brands such as Germany SICK, Japan PANASONIC, Germany LEUZE (For transparent sticker) etc.
High Quality Motor and Driver
One labeling machine often includes many motors such as conveyor motor, labeling head motor, label covering motor, bottle separating motor, bottle top pressing system motor, bottle positioning rolling motor etc. No matter stepping motor or servo motor, we all adopt China top 10 famous motor brands.
High Efficiency Production Line
High efficiency with good labeling effect, can save consumable and labor cost, so now self-adhesive labeling machine has been more and more popular in market;
Labeling machine often match with other machines auch as weight packing machine, cap sorter and capping machine, can seaming machine, cover impressing machine, weight checker, foil sealing machine, metal detector, inkjet printer, box packing machine and other machines to combine all kinds of production lines according to requirements.
