Medicine Hand Sanitizer 35m/Min Bottle Labeling Machine

Medicine Hand Sanitizer 35m/Min Bottle Labeling Machine

35m/Min Bottle Labeling Machine

800W Bottle Labeling Machine

130 Carton/Min Adhesive Labeling Machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

MT-Series

Contact Us

Request A Quote
Product Details
Voltage:
220V/380V, 50/60Hz
Capacity:
20-130 Carton/min
Bottle Diameter:
25-134mm
Type:
Labeling Machine
Condition:
New
Usage:
Adhesive Labels Bottles Labeling Machine,Beverage Drinks,Food,etc
Product Description

Describe:
This kind labeling machine is suitable for any round or cylinder bottles of bottle of wine,medicine,drinking,chemicals,agrochemical etc. It can pick up any point/logo on products and orientation labeling.
Its features simple structure and operation, attaching accuracy ,reliable property,small power and no noise.
The whole machine adopts mature PLC control system to ensure the stable running in high speed; Touch screen makes easy reading and excellent looking. More than 10 groups of labeling parameters saved, makes setting rapidly.
Labeling is performed smoothly with no creases with the use of elastic cotton idler wheel;
Automatic photoelectric detection functions including canceling labeling without objects there and stopping running or raising an alarm without labels to use to avoid omitting or wasting labels



Sample show:

The model around Labeling machine, which has a positioning system,suit for different kinds products that need labeling on round bottle wrap around,such as round bottle, jars and so on.

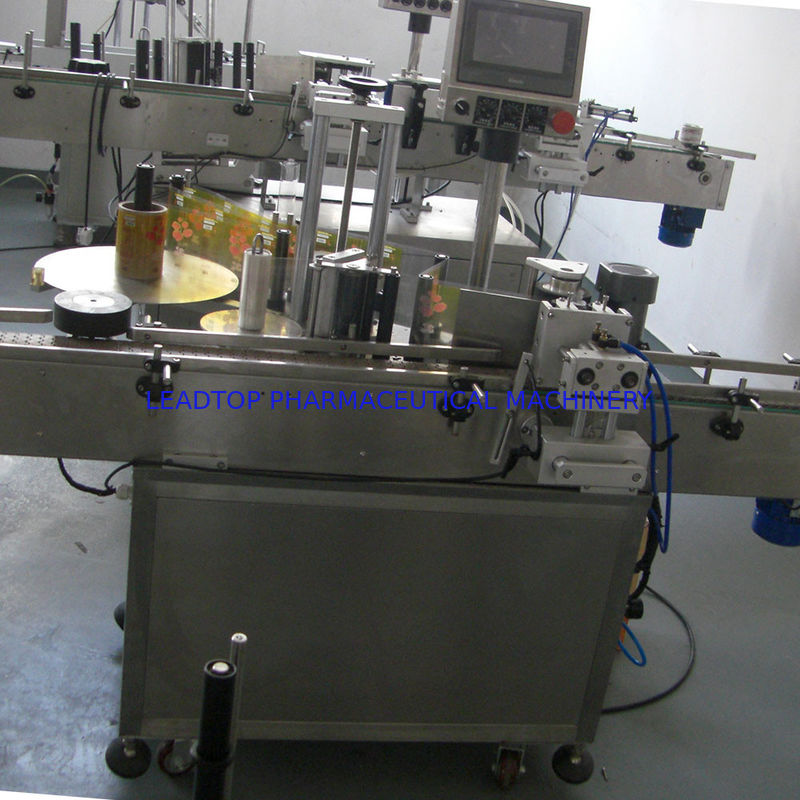

Medicine Hand Sanitizer 35m/Min Bottle Labeling Machine 0



This machine adopts imported famous brand parts to ensure quality.and we are factory,so we can offer competitive price for you ,we hope you will be our customer,and we believe we can provide you higher quality and better service for you.

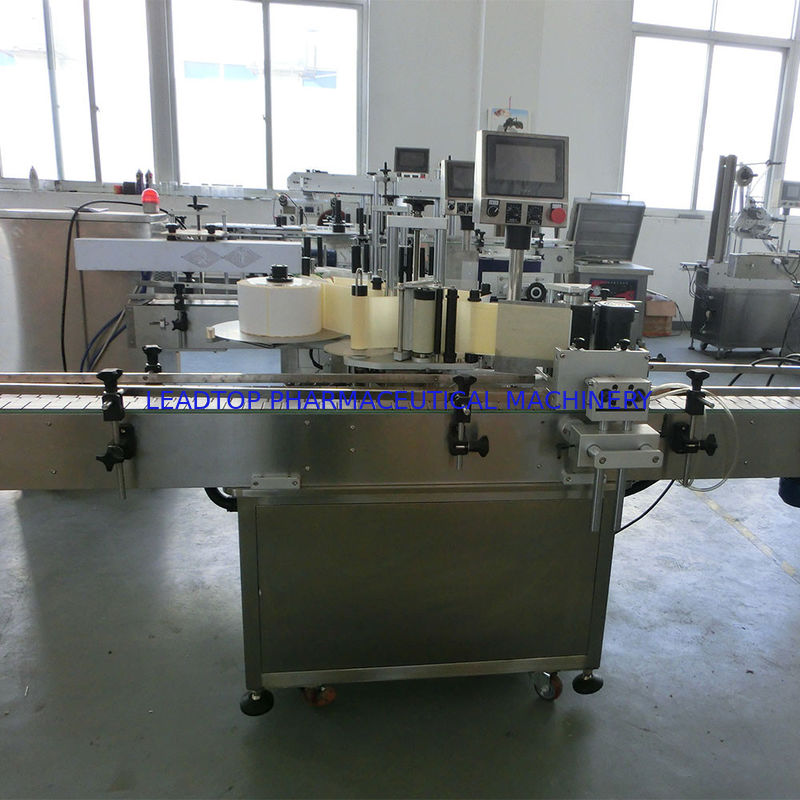

Medicine Hand Sanitizer 35m/Min Bottle Labeling Machine 1



Technical Parameters:

Model MT-130D
The standard system Step Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 200KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1800 (W) 1500(H)



Product​ Detailed

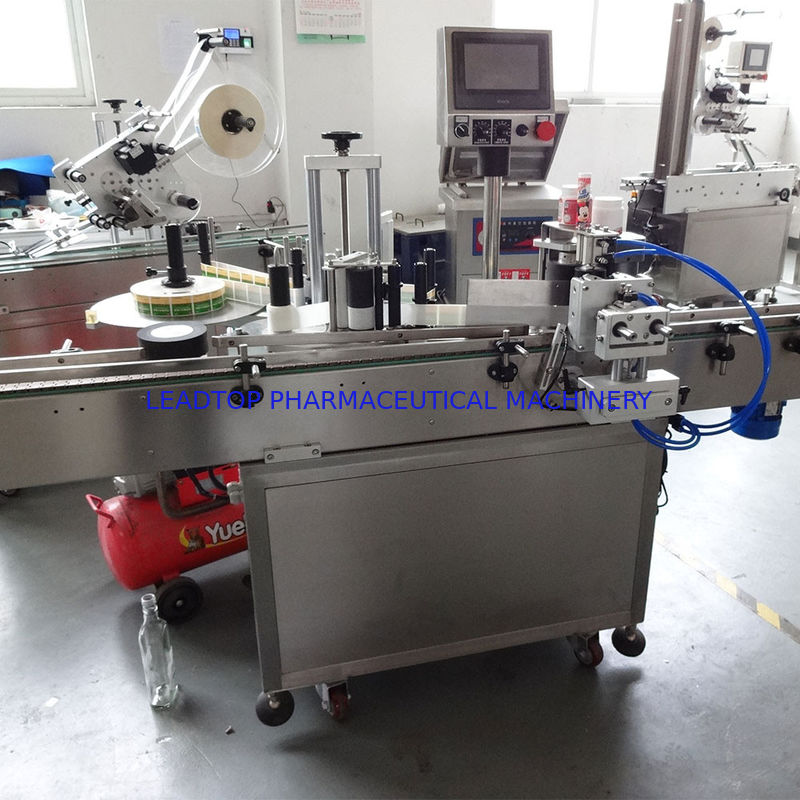

Medicine Hand Sanitizer 35m/Min Bottle Labeling Machine 2

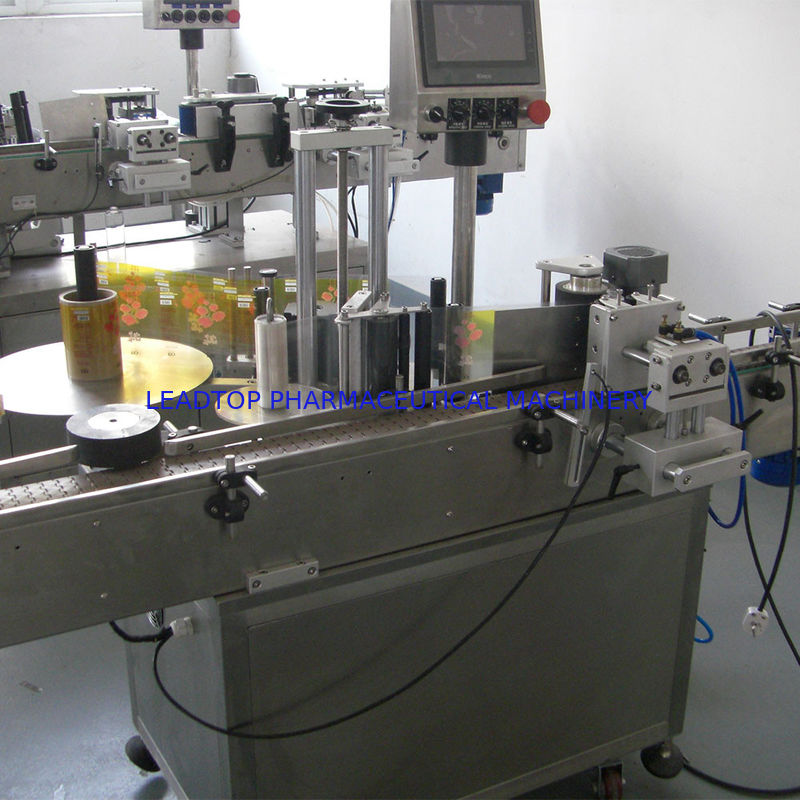

Medicine Hand Sanitizer 35m/Min Bottle Labeling Machine 3

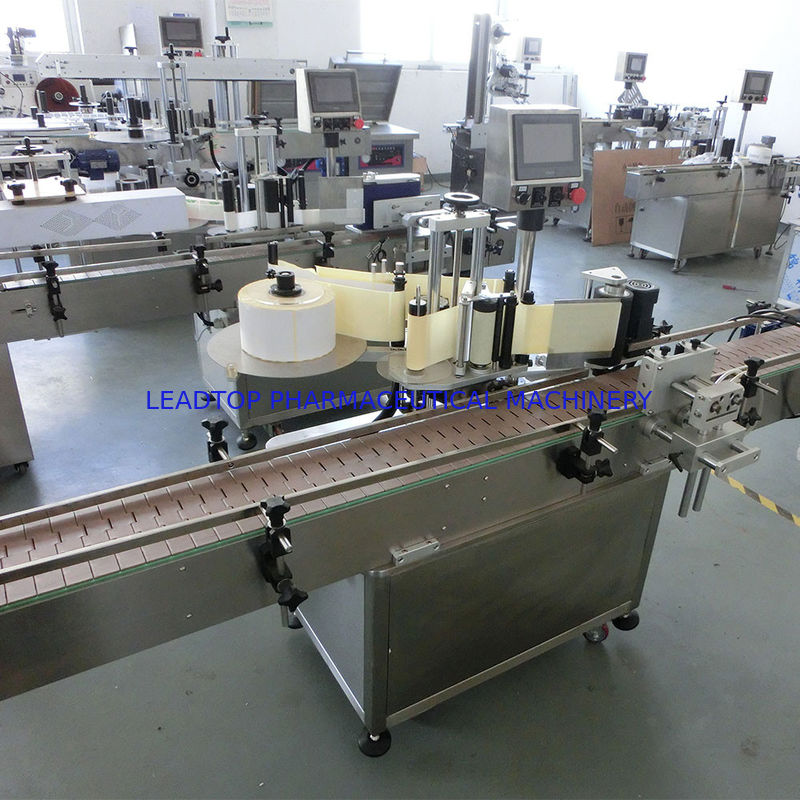

Medicine Hand Sanitizer 35m/Min Bottle Labeling Machine 4

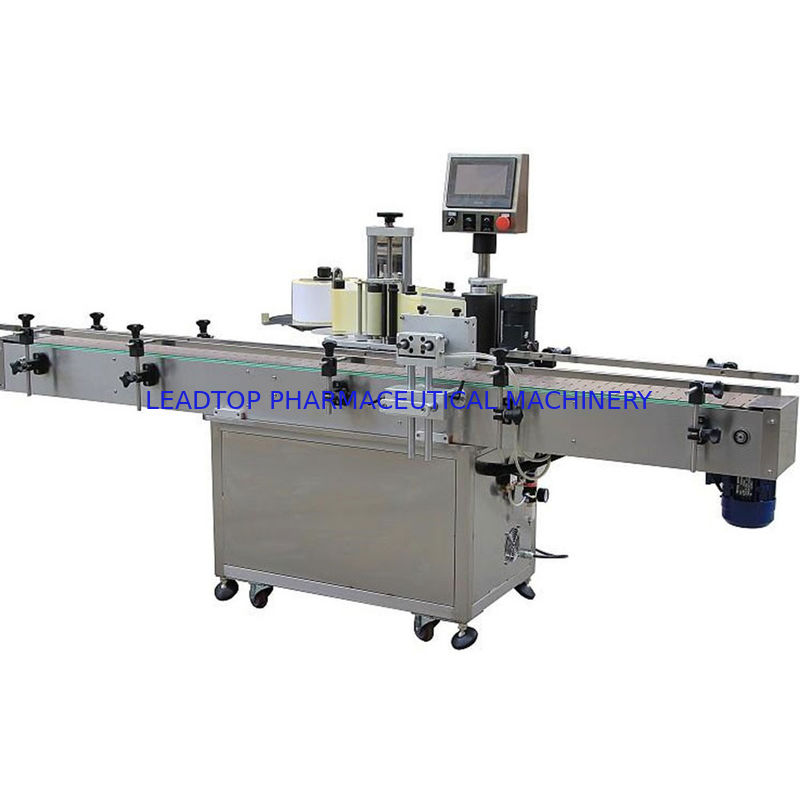

Medicine Hand Sanitizer 35m/Min Bottle Labeling Machine 5
