Oral Liquid Buffer Plastic Ampoule Filling Sealing Machine

Oral Liquid Buffer Plastic Ampoule Filling Sealing Machine

Plastic Ampoule Filling Sealing Machine

Liquid Buffer Ampoule Filling Machine

100ml Ampoule Filling Sealing Machine

Place of Origin:

Zhejiang,China

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

DPT-Series

Contact Us

Request A Quote
Product Details
Max Forming Depth:
12mm*2
Cutting Frequency:
0-25 Times/min, 125 Ampoule/min (10ml/ampoule)
Packaging Material:
PVC/PE (0.2-0.4)*240mm
Capacity Volume:
1-100ml/ampoule
Total Power:
8.5kw
Voltage:
220V-380V/50HZ
Weight:
1200kgs
Dimension:
3200×850×2000 Mm
Product Description

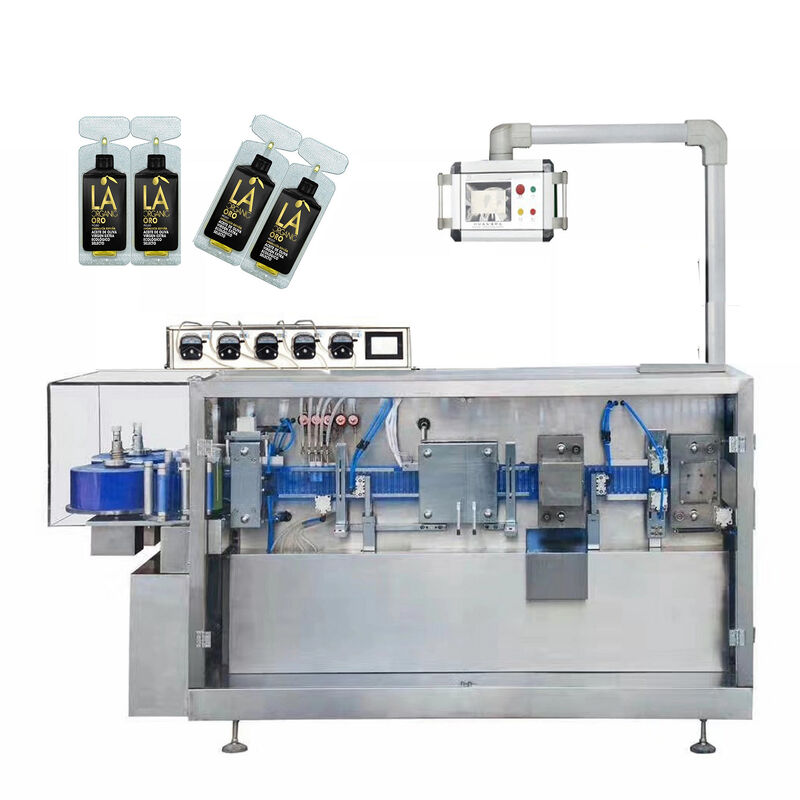

Automatic Oral Liquid Buffer Liquid Thinner Liquid Plastic Ampoule Filling Sealing Machine



Application:
Automatic Liquid Forming Filling & Sealing Machine is applicable for liquid or semi liquid, such as oral liquid, olive oil, Essence oil, etc. Sticky or semi-sticky, such as syrup, honey, shampoo, cream, etc. This machine can be used for pharmaceuticals, food, and care products, cosmetic. It also can be used in industry and agriculture in similarity products. This machine can finish forming, filling, sealing once time.

Working process:

Take out the film; Plastic bottle-forming, filling, date printing, sealing and cutting can be completed automatically.





Features:
1. Controlled by PLC, the frequency conversion in finely variable speeds.
2.All 6 process from spreading roll, AMP bottle forming, filling, sealing the end, printing serial numbers, cutting the end ,cutting apart, controlled by programming.
3. The computer human interface has simple and clear operation.
4. The filling head does not drop, leak, rise in bubbled and spill over.
5. All are made of high-quality stainless steel, accord with the standard GMP.
6. Pneumatic and electronic parts are taking imported famous brand.
7. Peristaltic pump and mechanical pump feeding, High filling precision, small error.

Oral Liquid Buffer Plastic Ampoule Filling Sealing Machine 0

Oral Liquid Buffer Plastic Ampoule Filling Sealing Machine 1



Specification

Max Forming Depth
12 mm
Cutting Frequency
0-25 times
Filling heads
5 pcs
Packing materials
PVC/PE PET/PE(0.2-0.4)×240mm
Filling Volume
1-50ml
Total Power
8.5kw
Voltage
220V-380V/50HZ
Weight
1200 kgs
Dimension
3200×850×2000 m
