Product Details:

Place of Origin: Zhejiang,China
Brand Name: LTPM CHINA
Certification: CE
Model Number: DPT-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: wooden
Delivery Time: 30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15Sets per mouth
Get Best Price Contact Now

Detail Information

Max Forming Depth: 12mm*2 Cutting Frequency: 0-25 Times/min, 125 Ampoule/min (10ml/ampoule)
Packaging Material: PVC/PE (0.2-0.4)*240mm Capacity Volume: 1-100ml/ampoule
Total Power: 8.5kw Voltage: 220V-380V/50HZ
Weight: 1200kgs Dimension: 3200×850×2000 Mm
High Light:

Pharmaceutical Ampoule Bottle Filling Machine

,

100ml Ampoule Bottle Filling Machine

,

Medicine Ampoule Bottle Filling Machine

Product Description

Pharmaceutical Plastic Ampoule Bottle Filling Machine

Pharmaceutical Plastic Ampoule Bottle Machine Filling And Sealing Of Ampoules



This machine is suitable for the unit close of medicine, drinks, dairy products, health products, food, cosmetics, perfumes, agricultural medicine, fruit purees, etc.





Description:
Take out the film, Plastic bottle-forming, filling, date printing, sealing and cutting can be completed automatically. Save cost and time.
This machine is applied to fill liquid or semi-liquid, such as oral liquid, oil, cosmetic(shampoo, cream) and honey etc.

This machine is widely used in pharmacy, daily cosmetic, petrochemical and foodstuff etc industries.


Features:
A. high speed and high precision high-end motion controller, stepless frequency control of motor speed control, servo motor control tensile membrane devices.
B. The man-machine interface, device, operation is simple.
C. Automatic discharge volume, a roll of film cutting, can be folded in half, there are positive and negative photoelectric pattern of version of the function. Products elegant, meet high standards of packaging requirements.
D. Adopting electronic peristaltic pump device, and mechanical pump piston pump control. Adjustment is convenient. Filling accuracy is correct.
E. Filling does not drip, no bubble, no overflow.
F. Parts in contact with the medicine with high quality stainless steel 316L, machinery casings are all SUS 304 stainless steel, In line with the GMP standard.
G. Saving films H.Machines can fission, convenient transportation and easy into the workshop.

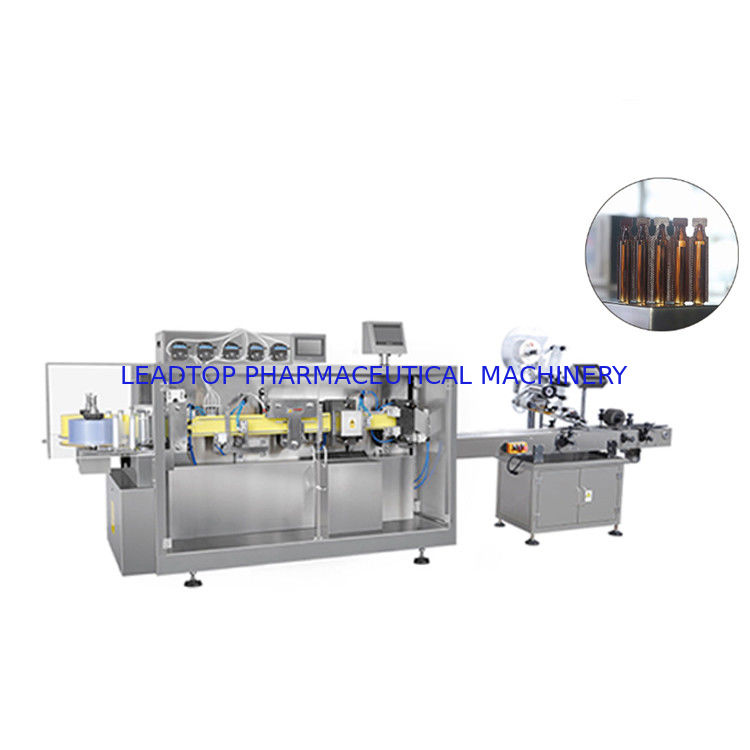

Pharmaceutical Plastic Ampoule Bottle Filling Machine 0

Pharmaceutical Plastic Ampoule Bottle Filling Machine 1



Specification

Max Forming Depth
12 mm
Cutting Frequency
0-25 times
Filling heads
5 pcs
Packing materials
PVC/PE PET/PE(0.2-0.4)×240mm
Filling Volume
1-50ml
Total Power
8.5kw
Voltage
220V-380V/50HZ
Weight
1200 kgs
Dimension
3200×850×2000 m





Products

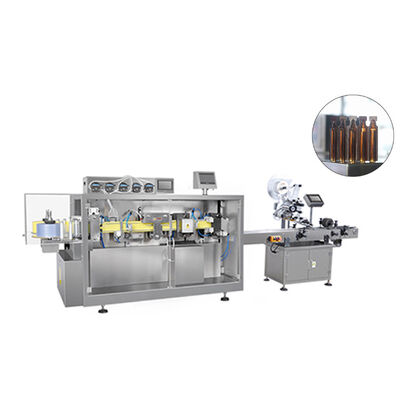

Pharmaceutical Plastic Ampoule Bottle Filling Machine 2
