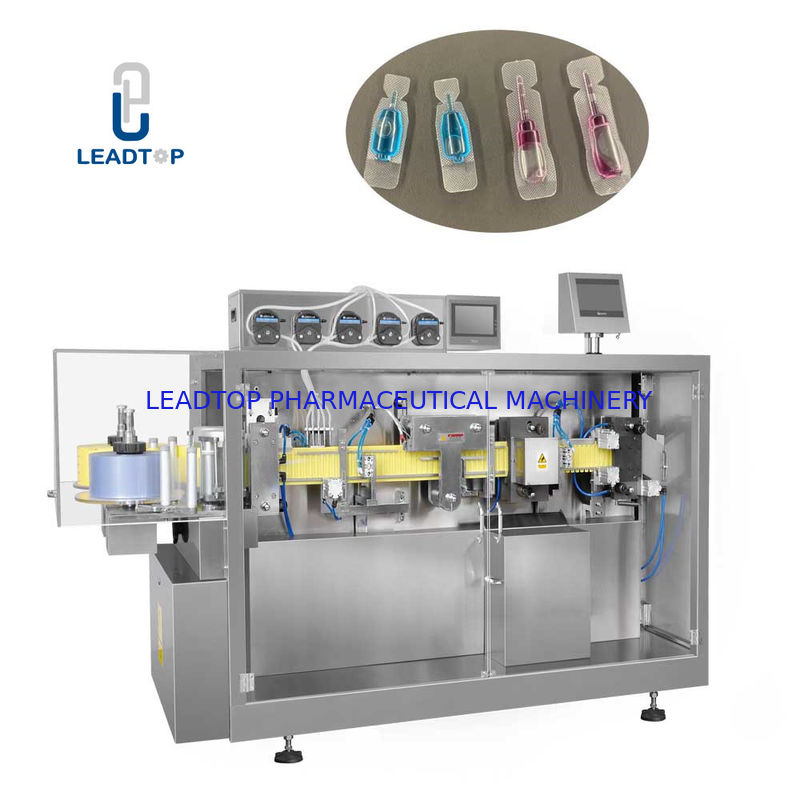

100ml Liquid Plastic Ampoule Filling Sealing Machine

100ml Liquid Plastic Ampoule Filling Sealing Machine

Plastic Ampoule Filling Sealing Machine

Liquid Ampoule Filling Sealing Machine

100ml Ampoule Filling Sealing Machine

Place of Origin:

Zhejiang,China

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

DPT-Series

Contact Us

Request A Quote
Product Details
Max Forming Depth:
12mm*2
Cutting Frequency:
0-25 Times/min, 125 Ampoule/min (10ml/ampoule)
Packaging Material:
PVC/PE (0.2-0.4)*240mm
Capacity Volume:
1-100ml/ampoule
Total Power:
8.5kw
Voltage:
220V-380V/50HZ
Weight:
1200kgs
Dimension:
3200×850×2000 Mm
Product Description

Mono Dose Rapid Test Buffer Solution Liquid Plastic Ampoule Filling Sealing Machine



This machine is a kind of compact type liquid filling and sealing machine, it is suitable for small batch filling for different product and widely used for filling oral liquid, perfume, liquid , essential oil, olive oil, health care product etc in pharmaceutical, herbal, pesticide, cosmetic, food and supplement area.





Machine Features

1. The machine adopts PLC control and stepless altering frequency adjustment.
2. The machine can finish the following 6 working station automatically through the programmer, roller sheet release, PVC/PE forming, filling, press the batch number, back-end crop, slitting
3. The machine adopts the human-machine interface operation, operation is easy and simple
4. The filling head has no leakage, no foam and overflow.
5. The contact parts with the material adopt SUS316L, which completely confirms to the GMP standard.
6. The main pneumatic component and electric parts adopt well-known brand products.
7. Filling system adopts mechanical pump, measuring is precisely and the difference is small. We can also design different pump for different product with various kinds of flow-ability.
8. The machine can be connecte
d with labeling machine to realize full production for filling sealing and labeling.



Specification

Max Forming Depth
12 mm
Cutting Frequency
0-25 times
Filling heads
5 pcs
Packing materials
PVC/PE PET/PE(0.2-0.4)×240mm
Filling Volume
1-50ml
Total Power
8.5kw
Voltage
220V-380V/50HZ
Weight
1200 kgs
Dimension
3200×850×2000 m



100ml Liquid Plastic Ampoule Filling Sealing Machine 0





100ml Liquid Plastic Ampoule Filling Sealing Machine 1





Pharmaceutical industry: oral liquid, healthcare products, physiological saline, lotion, cough syrup, Chinese medicine oral liquid, etc.
Chemical industry: perfumes, car perfumes, human milk, shower gels, shampoos, essential oil, detergents, hand soap liquid, ink, paste products, etc.
Food industry: linseed oil, castor oil, enzymes, honey, Dendrobium and so on.
The machine is suitable for any kinds of packing material, such as PVC laminated by PE, PVC laminated by LDPE.
