Pellet 3 Bores 24000pcs/H Capsule Filling Machine

Pellet 3 Bores 24000pcs/H Capsule Filling Machine

24000pcs/H Capsule Filling Machine

3 Bores Capsule Filling Machine

Pellet Capsule Filling Machine

Place of Origin:

china

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

NJP-400

Contact Us

Request A Quote
Product Details
Brand:
LTPM
Quantity Of Mould Bores:
3pcs
Noise Standard:
<80dB(A)
Bores:
3
Filling Dosage:
Power,pellets
Product Description

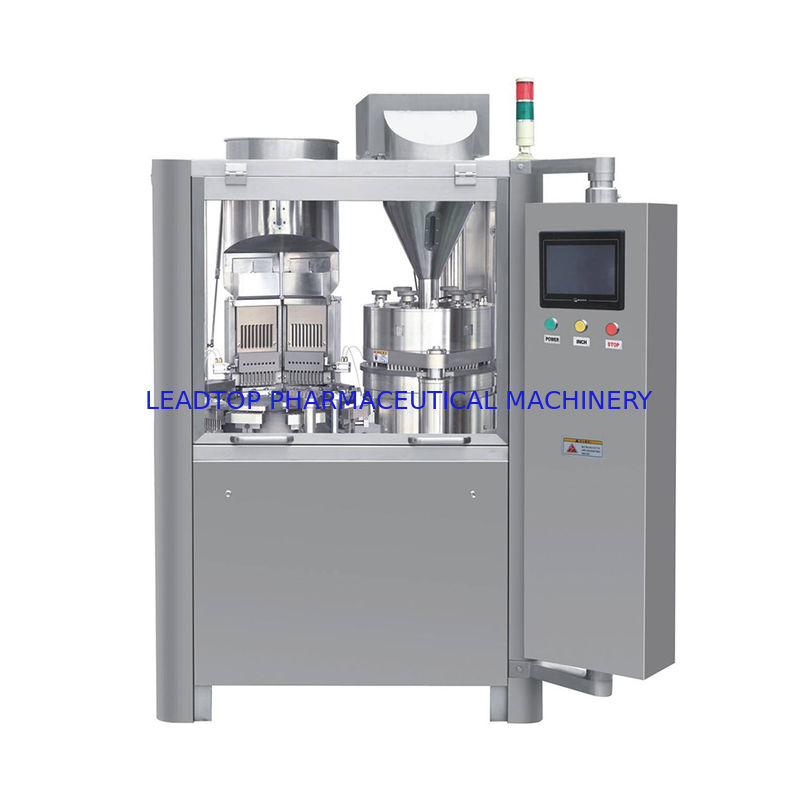

The “Full automatic capsule filling machine” is a newly created full-automatic closed intermittent capsule filling machine, which can fill powders pellet, and tablets. It can completes the following process automatically: feeding capsule, detaching capsule, pharmacy powder filling, ejecting defective capsule, closing capsule and discharging finished capsule. It’s can fill the capsules from size 00# to size 5#, and also size A and size B capsules, it’s the best choice for large scale production.


This machine is equipped with vacuum loader for capsules and powder, which guarantee the excellent filling performance. All of the operation is conducted on the touch screen, it’s convenient to control and management.



Pellet 3 Bores 24000pcs/H Capsule Filling Machine 0







Technical Parameters



Machine Model
NJP-200
NJP-400
Max. Output
12000 Capsules/H
24000 Capsules/H
Capsule Size
Suitable for filling capsule size 00#-5# Supro/safefy capsule size:A-E (need to exchange the spare parts/moulds accordingly)
Dosage Type
Powder/Pellet/Tablet
Power Supply
380V 50HZ 3.7KW (Can be made according to the client`svoltage standard)
Noise Index
Less than 75dBA
Machine Size/N.W.
920mm x 800mm x 1900mm Net Weight: 950KG
Packing Size/G.W.
1600mm x 1000mm x 2150mm Gross Weight:1200KG





Featurs



1.Touch-Screen, PLC program control panel with LCD.


2.The capsule qualified over 99%.


3.Removable powder hopper allows easy cleaning and auger adjustment allows change fills weight easily.


4.Speed and length of closed capsule are easy to adjust.


5.Electrical Appliance control system is in accordance with CE and international standards.


6.At the quick and accurate change part,easily and removable rotary table and ring carrier assembly is setted.


7.Fully enclosed rotary table and dosage station for integration of the whole capsule filling plants.


8.Large cam mechanism keeps the rotating table of mould together with the whole equipment running in balance, and completely guarantees the machine operating with highest precision and accuracy.

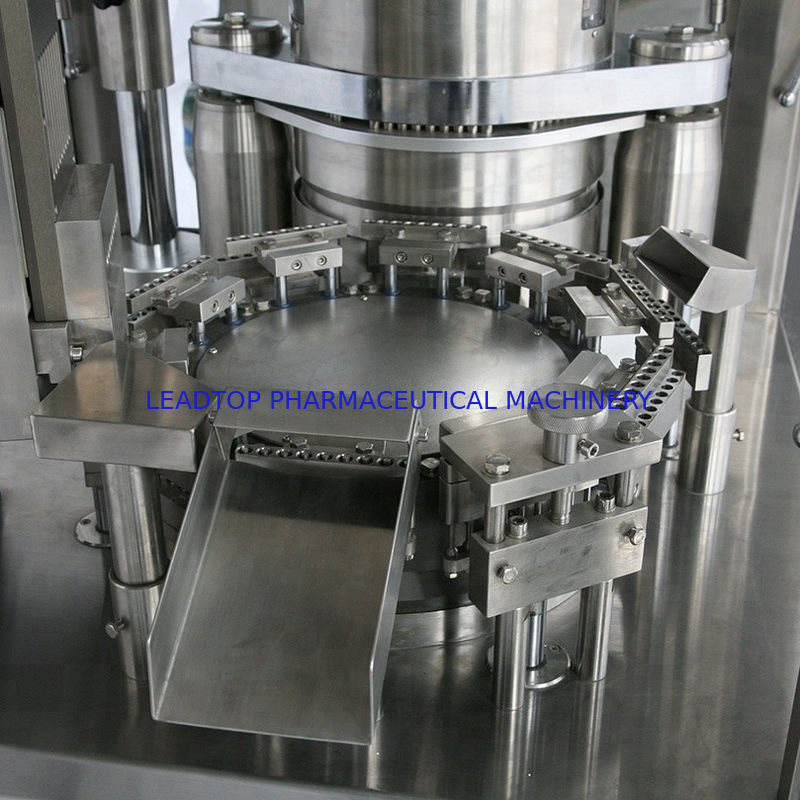

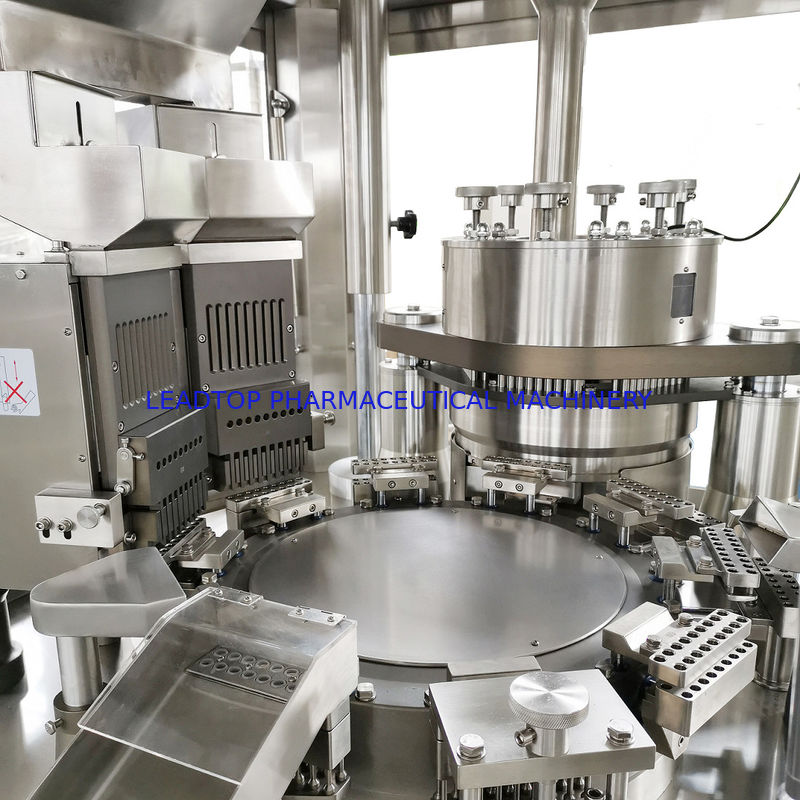

Machine Details

Pellet 3 Bores 24000pcs/H Capsule Filling Machine 1

Pellet 3 Bores 24000pcs/H Capsule Filling Machine 2









Applications



NJP-Series Automatic Hard Capsule Filling Machine--Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill), also can be used to fill vitamin, foodstuff and animal drug, etc.



Pellet 3 Bores 24000pcs/H Capsule Filling Machine 3

Pellet 3 Bores 24000pcs/H Capsule Filling Machine 4
