Place of Origin:
china
Brand Name:
LTPM CHINA
Certification:
CE
Model Number:
NJP-2000
Contact Us

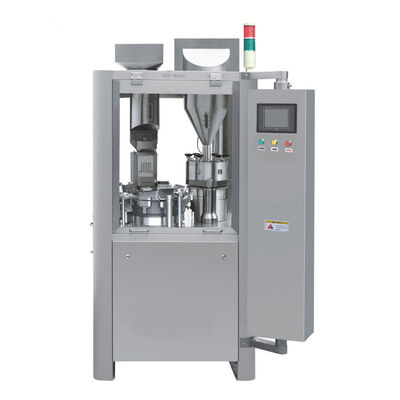

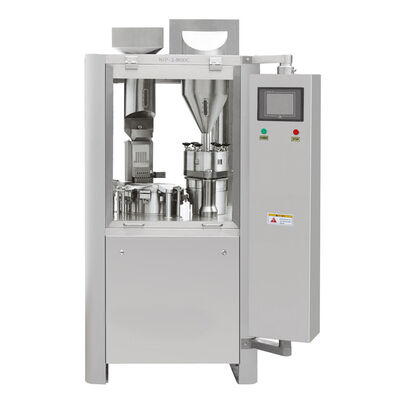

The NJP series capsule filling machine is an upgraded version of semi-automatic capsule filling machine. It mainly used for filling powdery and granular materials to empty capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#).Our NJP capsule filling machine can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output. It has the advantages of accurate loading, stable operation and no dust.
It meets the GMP requirements.
Technical Parameters
| MODEL | 2000 |
| Output(pcs./min) | 2000 |
| No. of segment bores | 18 |
| Applicable Capsule Size | 00#-5# |
| Applicable Filling Object | Powder and granular ( Pellets is available) |
| Operation System | Touch screen (Button operation is available) |
| Dosage | Different Dosages are available by changing dosage disk |
| Power Supply | Customerized |
| Total Power | 7.62KW |
| Overall Weight | 1800Kg |
| Overall Dimension(mm) | 1375×1345×2000(+200)mm |
Functional Parameter
3.1 The capsules are fed to the segment in sequence; the cap and body are separated by means of a vacuum suction.
3.2 Transporting
3.3 Cap and body are separated and prepared for filling
3.4 Powder column filling
3.5 Optional pellet and tablet filling
3.6 Eject the faulty capsules
3.7 Transporting
3.8 Joining of capsule body and cap
3.9 Eject finished product
3.10 Clean the segments
