120pcs/Min 260mm Automatic Package Machine For Medical Mask

120pcs/Min 260mm Automatic Package Machine For Medical Mask

260mm automatic package machine

120pcs/min automatic package machine

120pcs/min medical mask package machine

Place of Origin:

Zhejiang Province,China

Brand Name:

LTPM CHINA

Certification:

CE, GMP, SGS, BV

Model Number:

KD-260

Contact Us

Request A Quote
Product Details
Machine:
Pillow Packaging Machine
Max.Film Width:
260mm
Max Capacity Of Packing:
20-120pcs/min
Film Thickness:
Film Thickness
Bag Length:
60-300 ( Do Not Exceed This Size )
Packing Width:
25-150mm
Product Description

Automatic Package Machine For Packing Medical Mask





Flow Automatic Individual Face Mask Packing Machine For Packaging Medical Mask

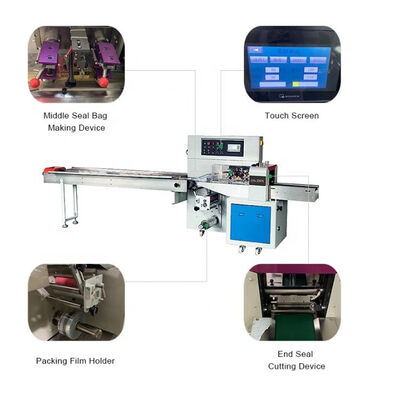

1st Step: Setting the parameters you want by touch sreccn
2nd tep: Put the material into the stainless conveyor
3rd Step: The stainless steel bag maker device willmake the bag shape
4th tep: The back sealing device will sealing the film together
5th tep: The cutting device will cut the bag automaticlly
6th Step: The belt product conveyor will send out the product



1.Compact structure, stable function, and simple operation.


2.Double frequency converter controller, length of package will cut immediately once setting, adjustment needless, saving time and film.


3.It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.


4.Self-checking function, trouble can be read easily. High sensor photoelectric color chart tracking, make the cutting position more correctly.


5.Dependant temperature PID controlling suitable for various materials of the packaging membrane.Position stop function, no adhesive and no waste of membrane.


6.Clean the rotation system, more reliable operation, and more convenient maintenance.


7.All the controlling operates by the software, convenience for function adjustment and technical upgrading.



Main Features


1. Panasonic double transducer control, flexible bag length cutting. Save time and film.
2. 7inch touch screen, easy operation and multiple language for choice.
3. Imported PLC system, machine performance is stable, convenient for parameters adjusting.
4. Self diagnosis failure function, machine error can be clearly displayed.
5. Separate PID temperature controller, suitable for various packing materials
6. High sensitivity optical photocell for eye mark tracking, digital input for cutting position.
7. Position stop function, no adhesive and no waste of membrane and protect cutting jaws.
8. Simple driving system, stable performance and convenient maintenance.
9. According to product, the input conveyor can use pusher, belt or film for transportation.

120pcs/Min 260mm Automatic Package Machine For Medical Mask 0


Technical Parameters:
Max.Film width
260mm
Max capacity of packing
20-120 pcs/ min
Film thickness
Film thickness
Bag Length
60-300 ( Do not exceed this size )
Packing width
25-150mm
Packing Height
≤80mm
Power Supply
220V 2.4 kW
Overall dimensions(L*W*H)
2600*750*4500mm
Total Weight
680kg
