Twin Heads 25mm Round Bottle Sticker Labeling Machine

Twin Heads 25mm Round Bottle Sticker Labeling Machine

25mm round bottle sticker labeling machine

20carton/min Round Bottle Sticker Labeling Machine

25mm automatic bottle labeling machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

MT-Series

Contact Us

Request A Quote
Product Details
Voltage:
220V/380V, 50/60Hz
Capacity:
20-130 Carton/min
Bottle Diameter:
25-134mm
Type:
Labeling Machine
Condition:
New
Usage:
Adhesive Labels Bottles Labeling Machine,Beverage Drinks,Food,etc
Product Description
Automatic Twin Heads Square Round Flat Butter Detergent
Bottle Sticker Adhesive Wrap Bottle Shampoo Labeling Machine





Product Description:



Features



1.Touch Screen operation system, easy to operate, multi-functions with online help function
2.Structure designed simple, smart, easy to maintenance
3.Use famous brand motor driven, label supply stable and reliable
4.PLC control system, the whole machine work stable with high speed
5.Common diverter is suitable for different diameter of bottles, fast adjustment and locked location
6.Labeling speed, convey speed, diverter speed can be adjusted.
7.Use resilience cotton belt ensure labeling smooth, no fold, improved labeling quality
8.Photoswitch inspection to ensure no bottle, no labeling; no label, autocorrection and alarm
9.Coding Machine for option, it can print date, lot No. online.



Details


High Speed Double Side and Round Bottle Automatic Labeling Machine is suitable for labeling various round bottles(tanks) in such industries as condiment,oil ,and cosmetics etc



Detailed Images
Specializing production round bottle labeling machine
1) Applicable to label whole curved surfaces or half curved surfaces on rotundities that can’t stand on their on their own fet with short diameter;
2) Advanved touch human-compater interface which is easy and intuitionistic to operate and has complete functions including abundant online help;
3) The design of special tilting loading material method and conveying by idler wheel makes the objects to label to be located automatically;
4) Automatic photoelectric detection functions,such as cancelling labeling without objects there,stopping running or raising an alarm without labels to use to avoid omitting or wasting lables;
5) Simple and compact machine construction that is easy to operate and maintain;
6) Well-knowen motor drive is matched with the complete machine that ensures a stable and reliable label-feeding speed.

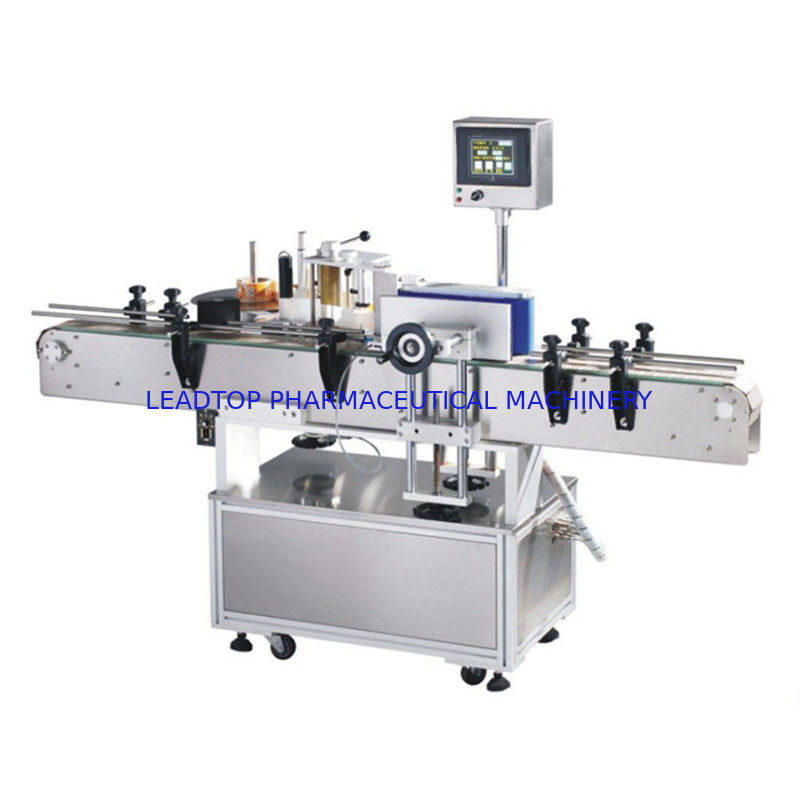

Twin Heads 25mm Round Bottle Sticker Labeling Machine 0







Technical Parameters:

Model MT-130D
The standard system Step Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 200KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1800 (W) 1500(H)





Applications:



1.This machine is double-sides labeling machine, suitable for two-side labelling of products.

2.Can quickly switch to a different size bottle , simple to cooperate, orderliness beautiful, clean, easy to wash;

3.Applicable to all industries double side labeling products, such as daily chemicals, petroleum, machine oil, cleaning supplies, food and beverage, pharmaceutical and so on;

4. Special Note: 1, such as single side label of irregular oval round bottle ,there may add an additional fixed mold labeling, the bottle is too thin, as the case may be labeling not pretty, high unqualified;

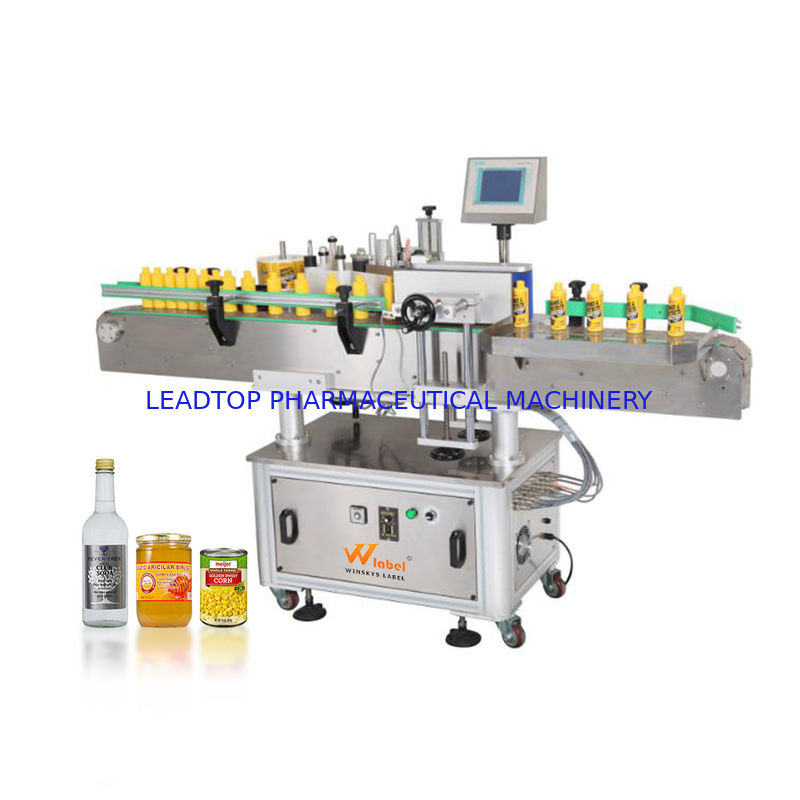

Twin Heads 25mm Round Bottle Sticker Labeling Machine 1

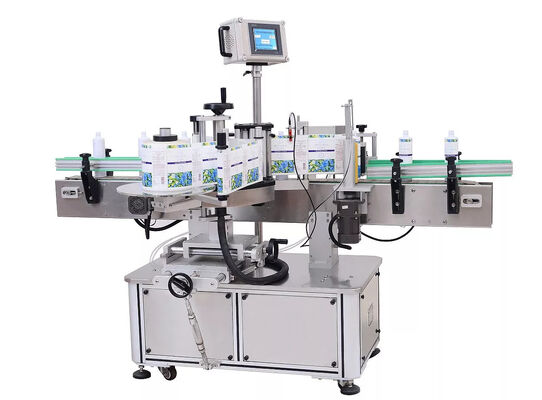

Twin Heads 25mm Round Bottle Sticker Labeling Machine 2

NOTE:The above data is the size of the standard model. If your label or product size are not within the range.We can also produce it.Send samples or we find products similar to your products to test the machine for you. Click to contact us!
