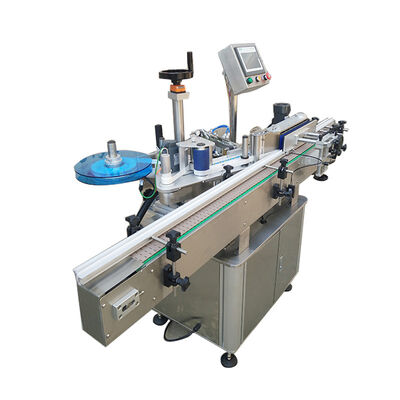

Two Sides Touch Screen Mitsubishi 25mm Automatic Labeling Machine

Two Sides Touch Screen Mitsubishi 25mm Automatic Labeling Machine

Mitsubishi Automatic Labeling Machine

25mm Automatic Labeling Machine

Mitsubishi auto label machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

MT-Series

Contact Us

Request A Quote
Product Details
Voltage:
220V/380V, 50/60Hz
Capacity:
20-130 Carton/min
Bottle Diameter:
25-134mm
Type:
Labeling Machine
Condition:
New
Usage:
Adhesive Labels Bottles Labeling Machine,Beverage Drinks,Food,etc
Product Description
Automatic Sticker Labeling Machine For Bottles Two Sides Labeling Machine





Product Description:


1.equipment used in Taiwan original technology and design concept from Germany carried out
on the improvements made.
2.device uses a large touch screen, easy operation, parameter display glance, truly interactive.
3.Japan Mitsubishi PLC control system, more stable performance.
4.measuring objects using Omron photoelectric sensors, sensing objects higher sensitivity.
5.Omron Japan / Taiwan FOTEK label of photoelectric sensors, sensing a sensitive, easy to adjust.
6.using German technology KINCO a standard motor, stable performance, high labeling accuracy
7.using matching motor drive signal is never distorted
8.using the French Schneider inverter speed, more stable performance
9.large control box, the internal electrical heat easier, convenient detection, increase firmness.
10.high quality stainless steel and aluminum alloy.
11.anodized aluminum surface sandblasted, higher strength, beautiful appearance.
12.send standard buffer device, make sure that the job is not pulled off the label during
13.closed end of paper patented design to ensure the collection of paper is not pulled off
14.equipment motor coordination, running smooth and stable, durable, long service life.
15.main electrical components are well-known products, parts by unified action solid resistance and connecting a computer numerical control machine tool precision machining, parts are well protected, prolonged use will not be any problems.



Two Sides Touch Screen Mitsubishi 25mm Automatic Labeling Machine 0



Two Sides Touch Screen Mitsubishi 25mm Automatic Labeling Machine 1



Technical Parameters:

Model MT-130D
The standard system Step Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 200KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1800 (W) 1500(H)



Two Sides Touch Screen Mitsubishi 25mm Automatic Labeling Machine 2



Two Sides Touch Screen Mitsubishi 25mm Automatic Labeling Machine 3



1. Adopt mature PLC control system technology, make the whole machine stable and high-speed

2. Adopt touch screen control system, make operation simple, practical and efficient

3. Advanced pneumatic code system technology, make the printed letter clear, fast and stable

4. Wide application, adapted to various sizes of round bottles

5. Roll extrusion bottle, so the labels attached more solid

6. Production line is for optional , also turntable is optional for collecting, sorting and packaging



Two Sides Touch Screen Mitsubishi 25mm Automatic Labeling Machine 4

Two Sides Touch Screen Mitsubishi 25mm Automatic Labeling Machine 5
