CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine

CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine

Product Details:

Place of Origin: Zhejiang Province,China
Brand Name: LTPM CHINA
Certification: CE, GMP, SGS, BV
Model Number: RotaTop-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 45 sets/month
Get Best Price Contact Now

Detail Information

Working Position: Eight-working Position Pouch Material: Laminated Film PE、PP
Pouch Pattern: W:100-210mm L:100-350mm Filling Scope: 10-5000g( The Screw Attachment Is To Be Changed)
Speed: 10-45pouches/min(The Speed Depends On The Product Status And Flling Weight)) Voltage: 380V 3phase 50HZ/60HZ
High Light:

1kg fertilizer packing machine

,

2kg fertilizer packing machine

,

3kg fertilizer packaging machine

Product Description

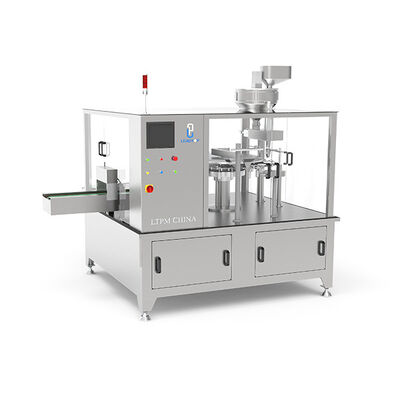

CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine

1kg 2kg 3kg CE Automatic Vertical Big Bag Fertilizer Packing Machine

Working Process:

1. Giving bag:Power on, suction tip adsorbs the bag, the arm folder clamps the dial folder on the first working position.
2.Coding: The machine run to the second working position, it codes the bag.
3. Opening bag:The machine run to the third working position, it opens the bag.
4.Filling: The machine runs to the fourth working position, it fills the bag.
5.Sealing: The machine runs to the fifth working position, it checks if the bag is filled with material, then it seals the bag.
6.Forming & output packages: The machine runs to the sixth working position, it cools the bag mouth and forms& output packages. The above process carried out simultaneously by cycle



Advantage:
Machinery passed Certifications, by ISO, CE,SGS, ROHS, EU Low Voltage, EC Machinery.
High quality configurations. Mitsubishi / Siemens PLC, Panasonic/ Siemens/ Delta servo motor driver, Mitsubishi/ Siemens/ Weinview touch screen.
Pneumatic system, double belt pulling film, very stalbe.
Professional vertical packing machine producer and factory supplier, over 10 years.
Great workshop team and after-sales services.



Combined Parts:

Automatic Z-type bucket elevator

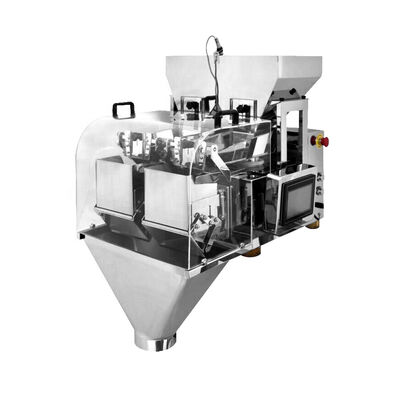

Linear weigher
Vertical Packing Machine
Platform
Finished product conveyor



Automatic Z-type bucket elevator:

CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine 0



Technical Parameters:

Working position

eight-working position

Pouch material

Laminated film PE,PP

Pouch pattern

stand-up&zipper pouch

Pouch size

W:100-210mm L:100-350mm

Filling Scope

10-5000g( The screw attachment is to be changed)

Weight Accuracy

Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5%

Speed

10-45pouches/min(The speed depends on the product status and flling weight))

Voltage

380V 3phase 50HZ/60HZ

Total power

8.5KW

Compress air

0.6m3/min(supply by user)

Size

1900*1570*1700mm



CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine 1
