Aluminum Toothpaste Automatic Tube Filling And Sealing Machine

Aluminum Toothpaste Automatic Tube Filling And Sealing Machine

Toothpaste tube filling and sealing machine

Toothpaste tube filling sealing machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE

Model Number:

LTRG-60A

Contact Us

Request A Quote
Product Details
Automatic Grade:
Automatic
Voltage:
220/380V,customized
Usage:
Toothpaste,facial Cleanser,foam,cream
Filling Speed:
40-60 Pcs/min
Motor:
1.5kw
Control System:
PLC Control
Product Description

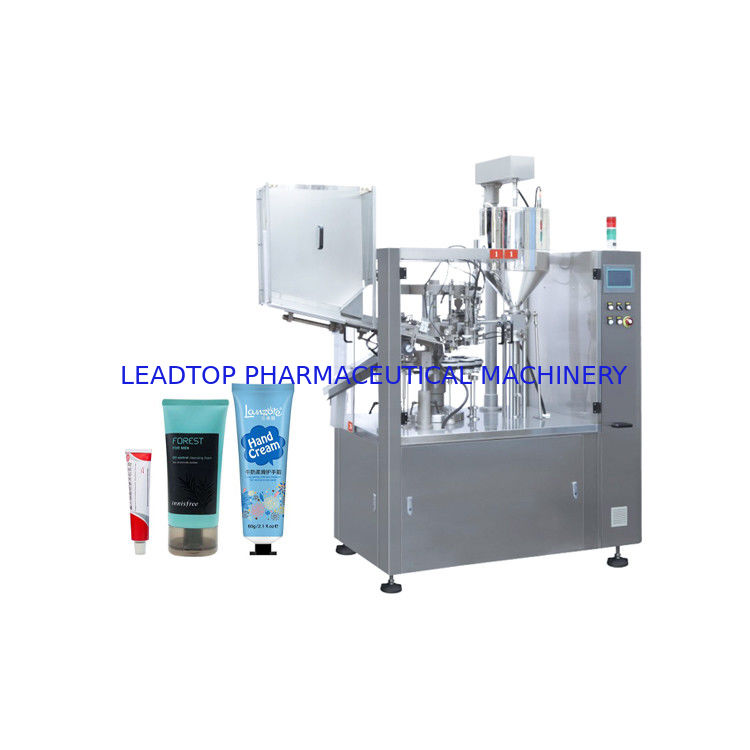

Full Automatic Aluminum Tube Filling And Sealing Machine

For Toothpaste



Product Description
This machine is widely used for filling,sealing and batch No.printing of products packaged by aluminum-plastic and full-plastic tubes in cosmetics,toothpastes,medical ointments,food,shoe polishes,adhesives,etc.According to customer requirements,the machine can realize dual-use filling of liquid and ointment materials through special design and special filling device.The machine can be used independently and can also form a production flow line with other equipment such as the automatic packaging machine and etc.



Feature

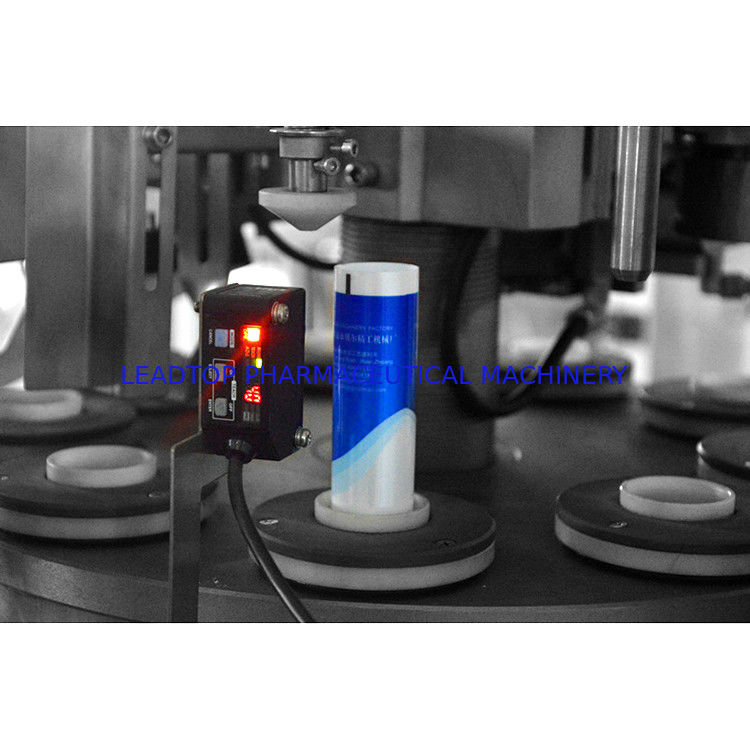

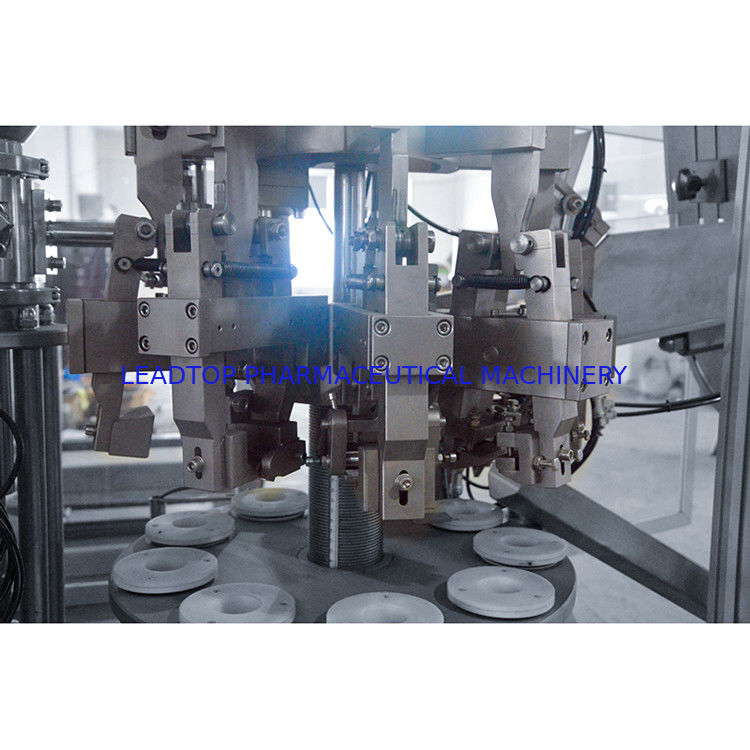

1) Equipped with automatic tube dropping box,automatic tube feeding,automatic color code aligning,automatic tube discharging,double-head filling.
2) Hot air inner heating,hot air heating from tube inner wall,no damage to tube surface tissues,beautiful sealing,especially suitable for sealing full- plastic packaging tubes.
3) Mechanically adjusted filling volume,no filling in case of no tube,PLC control,touch screen operation.
4) Irregular shape sealing(optional).
5) Storage barrel liquid level control and alarming system,automatic feeding(optional)
6)Double used filling of liquid and ointment material through special design



Application

This filling and sealing machine is widely used in pharmaceutical, cosmetic, food and chemical industries etc.,it is applicable in various aluminum plastic compound soft tube,plastic soft tube which fill pack all kind of Such as ointment, adhesives, AB glue, Neoprene, epoxy glue, skin cream, hair cream, boots oil, toothpaste and else liquid, lotions and cream etc.



Tube material: aluminum plastic compound soft tube, plastic soft tube



Filling material: all kind of cream, latex, lotion, oil and water etc.







Technical Parameter

Model LTRG-60
Tube Material Plastic tube, laminated tube,Aluminum Tube
Tube Diameter Φ5mm-Φ50mm
Tube Length 50-240mm (customizable)
Filling Volume 5-250ml/piece (Adjustable)
Filling Accuracy ≤±1%
Product Capacity (Pcs/min) 60pcs/min
Air Supply 0.55-0.65Mpa
Motor Power 4kw (380V/220V 50Hz)
Heat Sealing Power 5kw
Overall Dimension(mm) 2807*1240*1900mm (L*W*H)
Machine Weight (kg) 1100kg
