Automatic Orientation 250mm Tube Filling And Sealing Machine

Automatic Orientation 250mm Tube Filling And Sealing Machine

250mm automatic tube filling machine

60pcs / min automatic tube filling machine

Place of Origin:

China

Brand Name:

LTPM China

Model Number:

LTRG-60A

Contact Us

Request A Quote
Product Details
Certification:
CE
Tube Material:
Plastic Tube, Laminated Tube,Aluminum Tube
Voltage:
220V
Weight:
555Kg
Max.Tube Length:
10-250mm
Control System:
PLC Control
Product Description

Full Automatic Tubes Filling And Sealing Machine

With Automatic Orientation Of The Tubes



Main Features
1. Easy to operate and maintain.
2. Automatic positioning, filling, welding, cutting and trimming, printing code in one time.
3. Stainless steel machine body, strong and beautiful looks,
4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
5. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
6. Ultrasonic frequency can meet international standard, no harmful to human being or environment
7. Can be work in time, not need wait the heat time .



Advantages
1.It adopts Ultrasonic sealing machine , good for difference products, Such as food, medical, cosmetic products. It will not hurting the products.
2. Overload protection, phase separation protection, power-fail protection.
3. Large Ultrasonic output power to ensure the sealing quality of various tube size and material. No need preheating before sealing and no need working with industrial chiller.
4. With tube end trimming
5. Easy change working mold for difference tube diameter
6. Adjustable tube length
7. Machine include a gear pump filler( Good filling precision+- 1%)



Technical Parameter

Model LTRG-60
Tube Material Plastic tube, laminated tube,Aluminum Tube
Tube Diameter Φ5mm-Φ50mm
Tube Length 50-240mm (customizable)
Filling Volume 5-250ml/piece (Adjustable)
Filling Accuracy ≤±1%
Product Capacity (Pcs/min) 60pcs/min
Air Supply 0.55-0.65Mpa
Motor Power 4kw (380V/220V 50Hz)
Heat Sealing Power 5kw
Overall Dimension(mm) 2807*1240*1900mm (L*W*H)
Machine Weight (kg) 1100kg

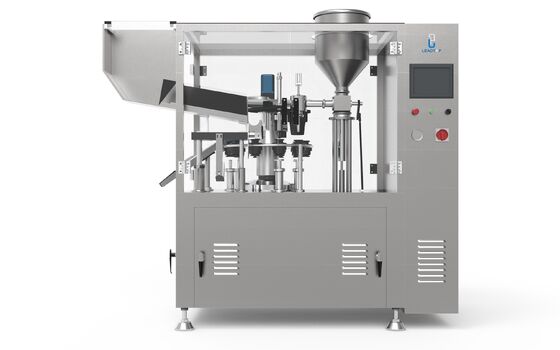

Automatic Orientation 250mm Tube Filling And Sealing Machine 0

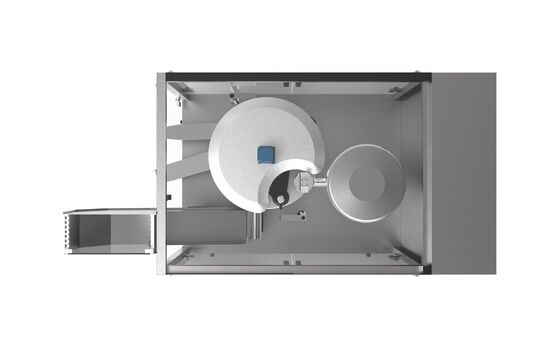

Automatic Orientation 250mm Tube Filling And Sealing Machine 1
