    Shrink Sleeve Automatic Label Applicator Machine For Tape Shrink Wrapping

    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE, GMP
    Model Number: MT-Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Export standard wooden case
    Delivery Time: 25days
    Payment Terms: L/C, T/T
    Supply Ability: 25sets/month
    Get Best Price Contact Now

    Detail Information

    Voltage: 220V/380V, 50/60Hz The Standard System: Step Motor
    Capacity: 20-130 Carton/min Bottle Diameter: 25-134mm
    Service: Engineer Oversea Service Driven Type: Electric
    High Light:

    130 carton / min auto label machine

    ,

    automatic labeler

    Product Description

    Shrink Sleeve Automatic Label Applicator Machine For Tape Shrink Wrapping

    Automatic Labeling Machine Shrink Sleeve Labeling For Tape Shrink Wrapping PVC/PET/OPS Labels With Heating Shrink Tunnel


    Product Application
    The automatic shrink sleeve labeling machine with shrink tunnel in such fields as foodstuff, beverage, commodity and cosmetics etc. The machine are widely used for packing fruit juice, tea drinks, commodity, purified water, condiments, beer, sport drinks, and cosmetics etc and suitable to various type of bottles.



    Main Features
    (1) Stainless steel 304 of host machine by all cover: simple, athletic, beautiful appearance.

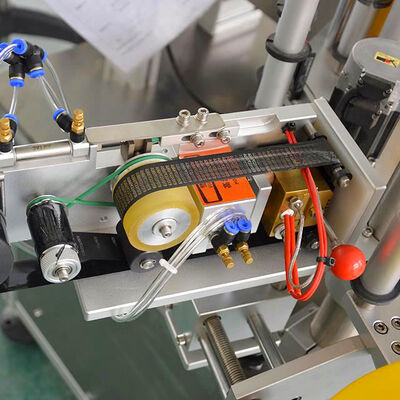

    (2) Adjustable cutter box: rotary cutting technology, double sides cutting edges.
    (3) Central guide pillar: adopts POM material , more durable and stable to transmit labels.

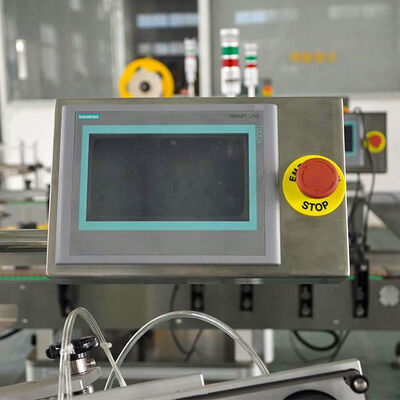

    (4) Control cabinet: button and touch screen control, easy operation.
    (5) Label-controlling electric-eye shelf: unique combination of tail and electric to improve the precision of cutting of membrane materials.
    (6) Synchronous bottle screw: making stable transmission for bottles.
    (7) Label brush: more precision for casting labels.
    (8) Independent material feeding shelf: fast and precise to change labels.



    Technical Parameters:

    Model MT-130D
    The standard system Step Motor
    Capacity 20-130 carton/min
    Operating Direction Left or right
    Label speed ≤35 m/min
    Tags volume inner diameter 76 mm
    Tags volume outer diameter 350 mm (max)
    Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
    Labeling accuracy ±1.0mm (subject to the roughness of the plane)
    Weight 200KGS
    Total motor power 800W
    Power supply AC220V 50/60HZ Single phase
    Size appearance (mm) 2200 (L) 1800 (W) 1500(H)

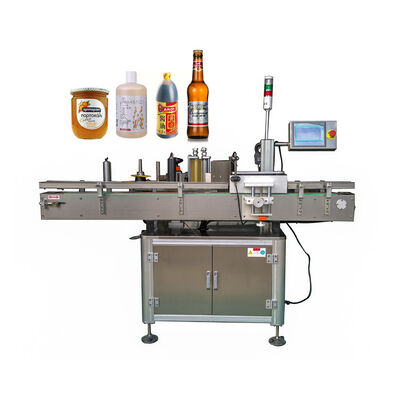

    Automatic line for labelling round containers, with PLC touch screen. Can be customized depending on customer's bottles and labels.



    Shrink Sleeve Automatic Label Applicator Machine For Tape Shrink Wrapping 0


    We produce Homogenizer mixer,Filling machines,Capping machines,Tube machines,Labeling machines,Water treatment,Storage tanks etc. We also provide customized services. Please feel free to contact us !
