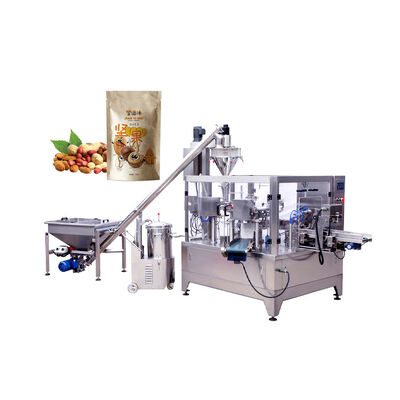

500g 1kg 2kg Granule Pouch Automated Packaging Machine

500g 1kg 2kg Granule Pouch Automated Packaging Machine

automated pouch packaging

500g Automated Packaging Machine

Place of Origin:

Zhejiang Province,China

Brand Name:

LTPM CHINA

Certification:

CE, GMP, SGS, BV

Model Number:

RotaTop-Series

Contact Us

Request A Quote
Product Details
Working Position:
Eight-working Position
Pouch Material:
Laminated Film PE、PP
Pouch Pattern:
W:100-210mm L:100-350mm
Filling Scope:
10-5000g( The Screw Attachment Is To Be Changed)
Speed:
10-45pouches/min(The Speed Depends On The Product Status And Flling Weight))
Voltage:
380V 3phase 50HZ/60HZ
Product Description



Full Automatic 500g 1kg 2kg Granule Pouch Packing Machine

For Packing Sugar Peanut Coffee RIce Beans

Product Introduction:

The packaging machine installs rotary pouch packing machine, combination weigher, Z-Conveyor and working platform, suitable for packing all kinds of grains and solids, such as candy, nuts, raisins, peanuts, melon seeds, nuts, potato chips, chocolate, biscuits and so on.



Main Features:

1.Fully automatic finishing whole process of feeding, weighing, filling bag, date printing,finished product output.
2.High accuracy and high efficiency,
3.Applicable to a wide range of materials.
4.For premade bags, beautifully packaged.
5.Sealing is solid, smooth and beautiful.
6.Double feeding material,it’s suitable for fluffy, irregular, flaky and other easily blocked material.





Application:

Vertical Granule packing machine is suitable for various kinds of Granule products in different industries.Like food, chemical, medical, agricultural, construction, ect. Its multi-function perfomance enable widely usage to meet different packing requirements.

Technical Parameters:

Working position
eight-working position
Pouch material
Laminated film PE,PP
Pouch pattern
stand-up&zipper pouch
Pouch size
W:100-210mm L:100-350mm
Filling Scope
10-5000g( The screw attachment is to be changed)
Weight Accuracy
Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5%
Speed
10-45pouches/min(The speed depends on the product status and flling weight))
Voltage
380V 3phase 50HZ/60HZ
Total power
8.5KW
Compress air
0.6m3/min(supply by user)
Size
1900*1570*1700mm



Optional Configuration:
Material weighing filling machines, work platform, weight checker, material elevator, finished product conveyor, metal detector

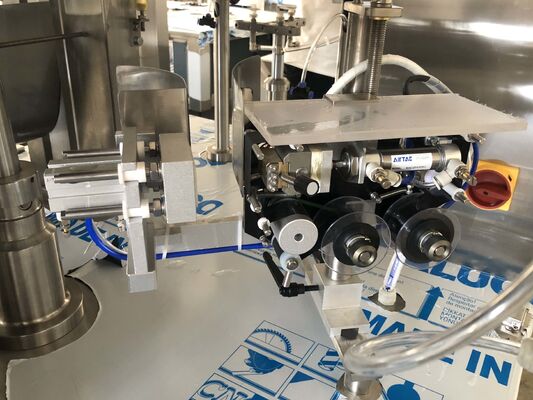

500g 1kg 2kg Granule Pouch Automated Packaging Machine 0

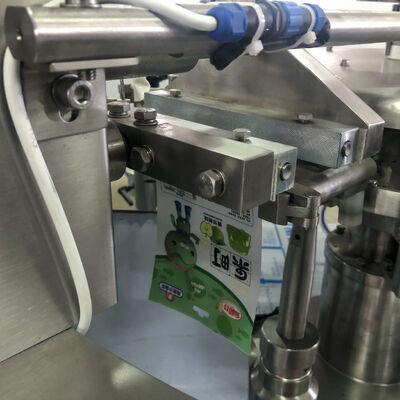

500g 1kg 2kg Granule Pouch Automated Packaging Machine 1
