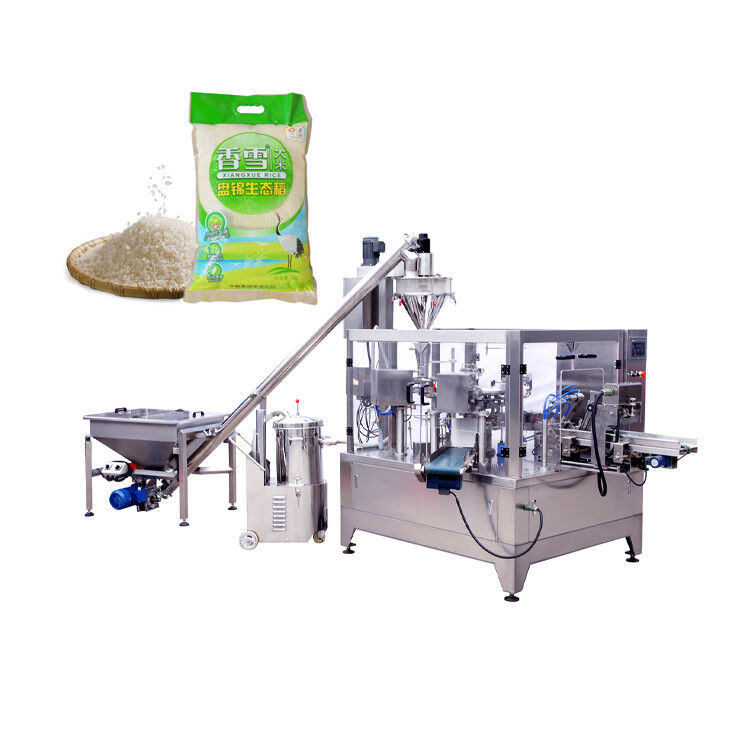

PE Premade Pouch Filling Sealing Packaging Machine

PE Premade Pouch Filling Sealing Packaging Machine

Product Details:

Place of Origin: Zhejiang Province,China
Brand Name: LTPM CHINA
Certification: CE, GMP, SGS, BV
Model Number: RotaTop-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 45 sets/month
Get Best Price Contact Now

Detail Information

Working Position: Eight-working Position Pouch Material: Laminated Film PE、PP
Pouch Pattern: W:100-210mm L:100-350mm Filling Scope: 10-5000g( The Screw Attachment Is To Be Changed)
Speed: 10-45pouches/min(The Speed Depends On The Product Status And Flling Weight)) Voltage: 380V 3phase 50HZ/60HZ
High Light:

premade pouch packaging machine

,

Premade Pouch Fill and Seal Machine

Product Description

PE Premade Pouch Filling Sealing Packaging Machine

Automatic Premade Sachet/Bag/Pouch Filling Sealing Packaging Machine

For Packing Liquid Paste Powder Or Granule

Product Introduction:

RotaTop-Series automatic rotary pouch packaging machine combines with domestic and foreign advanced packaging structural features and fully automated control system with the industry, it is a new generation of high-tech products. The machine is widely used in food, agriculture, medicine, and other industries.



Main Features:

1) Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
2) The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..
3) Automatic checking system can check bag situation, filling and sealing situation.
The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..
4) The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.

Technical Parameters:

Working position
eight-working position
Pouch material
Laminated film PE,PP
Pouch pattern
stand-up&zipper pouch
Pouch size
W:100-210mm L:100-350mm
Filling Scope
10-5000g( The screw attachment is to be changed)
Weight Accuracy
Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5%
Speed
10-45pouches/min(The speed depends on the product status and flling weight))
Voltage
380V 3phase 50HZ/60HZ
Total power
8.5KW
Compress air
0.6m3/min(supply by user)
Size
1900*1570*1700mm





Application:

Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc.
Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer,etc.
Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc.
Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste,etc.
Class of pickles, pickled cabbage, kimchi, pickled cabbage, radish, etc.
