    4 Lanes Liquid Milk Powder Coffee 25mm Vertical Packaging Machine

    Product Details:

    Place of Origin: Zhejiang Province,China
    Brand Name: LTPM CHINA
    Certification: CE, GMP, SGS, BV
    Model Number: DXD-Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Wooden Case
    Delivery Time: 25 days
    Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
    Supply Ability: 45 sets/month
    Get Best Price Contact Now

    Detail Information

    Machine: Pillow Packaging Machine Max.Film Width: 260mm
    Max Capacity Of Packing: 20-120 Pcs/ Min Film Thickness: Film Thickness
    Bag Length: 60-300 ( Do Not Exceed This Size ) Packing Width: 25-150mm
    High Light:

    25mm vertical packing machine

    ,

    260mm vertical form fill and seal machine

    Product Description

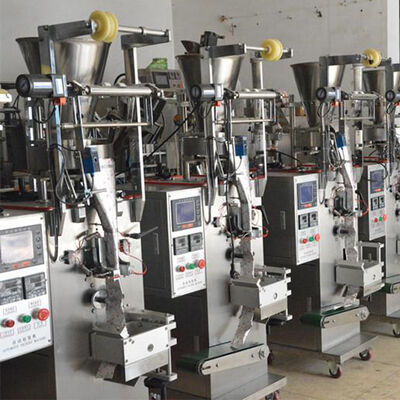

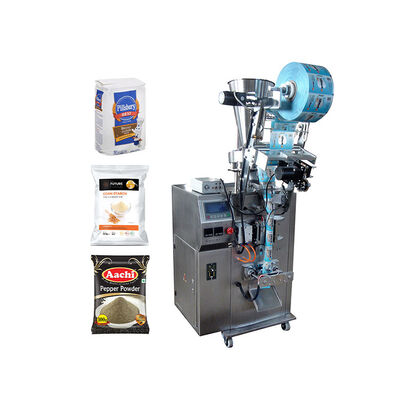

    4 Lanes Liquid Milk Powder Coffee 25mm Vertical Packaging Machine

    4 Lanes Vertical Liquid Milk Powder Coffee Packaging Machine

    Product Description
    This machine is suitable for packing any kinds of powder. Most commonly used in the pharmacy, food, dairy, and agriculture industries.
    Feature:
    1. Back sealing, three-side sealing, and four-side sealing packing method
    2. The packing data and adjustment can be displayed on the screen. The user can directly operate it on it.
    3. Equipped with a photoelectric controller to ensure that its packing bag patterns are perfect.
    4. It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
    5. The body and the parts touching the material are made of stainless steel.
    Technical Parameters
    Items / Model
    DXD-350K
    DXD-500K
    DXD-900K
    Pouch length
    50-250mm(L) (adjustable)
    50~160mm
    50~120mm( Pouch length can change)
    Pouch width
    50-85mm(W)
    50~105mm
    50~105mm
    Packing speed
    30-50times/min depend on pouch size and material
    20~50times/nim(depend on pouch size and material)
    80times/nim(depend on pouch size & material)
    Measuring range
    1-50ml
    1~80ml
    1~80ml
    Applicable film
    PET/AL/PE PET/PE NY/AL/PE NY/PE
    PET/AL/PE PET/PE NY/AL/PE NY/PE
    PET/AL/PE PET/PE NY/AL/PE NY/PE
    Max width of film roll
    350mm
    500mm
    900mm
    Max film roll diameter
    300mm
    420mm
    Φ300mm
    Film roll core diameter
    75mm
    75mm
    Φ75mm
    Power voltage
    220V/ 50HZ(do as customer’s request)
    380V50Hz 3P 4W
    380V 50Hz (do as customer's request)
    Power
    5.5kw
    12 Kw
    12 Kw
    Gross Weight
    650kg
    1200kg
    1200kg
    Package size
    (L)1400mm×(W)1000mm×(H)1700mm
    1680x1280x2050mm
    1500x1540x2200mm(L x W x H)
    Product Details
