Auto Sampling Fette Type Rotary Tablet Machine Punch Dish Washing

Auto Sampling Fette Type Rotary Tablet Machine Punch Dish Washing

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE
Model Number: GZP-17G

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: In 25 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Maximum Tablet Pressure: 150 KN Maximum Tablet Diameter: 38 Mm
Maximum Filling Depth: 18-35mm Maximum Production Capacity: 15300 Pieces/h
Power Supply: 380/50 V / Hz Main Motor Power: 7.5 KW
High Light:

rotary tableting machine

,

tablet compression machine

Product Description

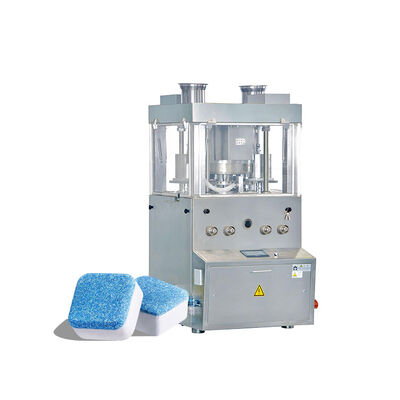

Auto Sampling Fette Type Rotary Tablet Machine Punch Dish Washing

Auto Sampling Fette Type Punch Dish Washing Tablet Making Machine



Product Description

Main Application:

This machine is a new generation product by our factory, and this machine is a single Roller continuous automatic tablet press for pressing various kinds of different shape tablets and plain tablets It is mainly used in pharmaceutical industry and also the chemical, food, electronic industries.



Characteristics:

1. Design of GMP.
2. High quality all stainless steel constructions.
3. Reliable safety sealing system and dust-proof system.
4. High visibility isolated door to prevent cross contamination.
5. Easily remove parts for quick machine’s maintenance.



Operating principle:
1.The cover is made of stainless steel with close type . The inner tablet surface is also applied with stainless steel materials which could keep surface luster and prevent from being polluted crossly, comply with GMP requirement.
2. Equipped with plexiglass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain.
3. All monitors and operating components are in good order.
4. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
5. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
6. Combining machine with electricity, equipped with touching key and screen.
7. The first of its kind to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
8. Ransmitting system is sealed in the oil box under the main machine which is a separate component .No pollution and easy to send out heat and resist grinding.
9. Powder-absorbing apparatus could absorb the powder in the piece-pressing room.



Product Specifications:

Model
ZPT420-17G
Die number
17
Maximum tablet pressure
150 kN
Maximum tablet diameter
38 mm
Maximum filling depth
18-35mm
Maximum tablet thickness
15 mm
Turntable speed
4-15 rpm
Maximum production capacity
15300 pieces/h
Power supply
380/50 V / Hz
Main motor power
7.5 kW
Dimensions
950*1200*1825 mm
Net weight
2300 kg
