    High Speed Horizontal Pillow Type Packing Machine Automatic Pillow Bag Packaging

    Product Details:

    Place of Origin: Zhejiang Province,China
    Brand Name: LTPM CHINA
    Certification: CE, GMP, SGS, BV
    Model Number: KD-260

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Wooden Case
    Delivery Time: 25 days
    Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
    Supply Ability: 45 sets/month
    Get Best Price Contact Now

    Detail Information

    Machine: Pillow Packaging Machine Max.Film Width: 260mm
    Max Capacity Of Packing: 20-120 Pcs/ Min Film Thickness: Film Thickness
    Bag Length: 60-300 ( Do Not Exceed This Size ) Packing Width: 25-150mm
    High Light:

    automatic packaging machine

    ,

    packing machine for food products

    Product Description

    High Speed Horizontal Pillow Type Packing Machine Automatic Pillow Bag Packaging

    High Speed Bag Pillow Packing Machine Price,

    Horizontal Pillow Type Packing Machine, Automatic Pillow Packing Machine



    Product Description
    Machine function

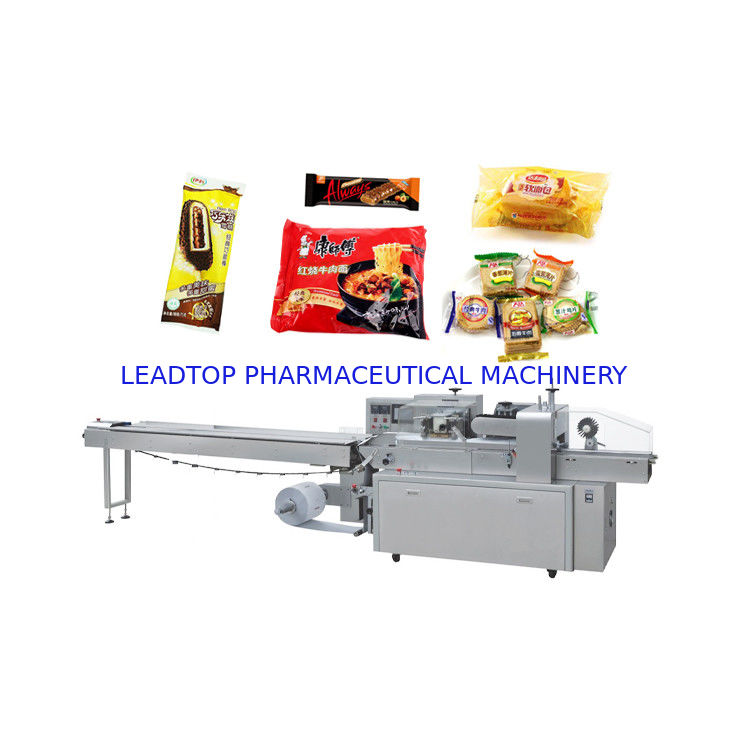

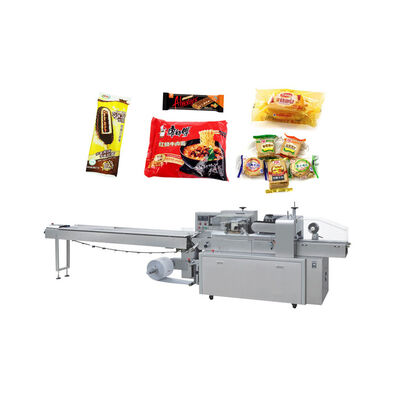

    Pillow Packing Machine is suitable for the packaging of various solid and regular objects such as biscuits, bread, instant noodles, moon cakes, candy, chocolate, medicines, daily necessities, hardware parts, cartons or trays. Widely used in food, pharmaceutical, hardware, daily chemical and other industries, can automatically complete the whole process of feeding, bag making, sealing, printing batch number, finished product output, counting, etc.


    Main Features

    1. Panasonic double transducer control, flexible bag length cutting. Save time and film.

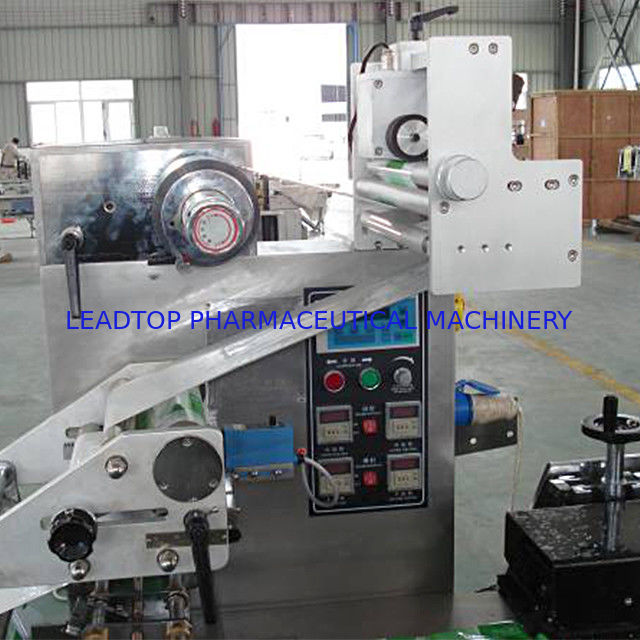

    2. 7inch touch screen, easy operation and multiple language for choice.
    3. Imported PLC system, machine performance is stable, convenient for parameters adjusting.
    4. Self diagnosis failure function, machine error can be clearly displayed.
    5. Separate PID temperature controller, suitable for various packing materials
    6. High sensitivity optical photocell for eye mark tracking, digital input for cutting position.
    7. Position stop function, no adhesive and no waste of membrane and protect cutting jaws.
    8. Simple driving system, stable performance and convenient maintenance.
    9. According to product, the input conveyor can use pusher, belt or film for transportation.

    Technical Parameters
    Max.Film width
    260mm
    Max capacity of packing
    20-120 pcs/ min
    Film thickness
    Film thickness
    Bag Length
    60-300 ( Do not exceed this size )
    Packing width
    25-150mm
    Packing Height
    ≤80mm
    Power Supply
    220V 2.4 kW
    Overall dimensions(L*W*H)
    2600*750*4500mm
    Total Weight
    680kg
