220v / 380v Power Vertical Automatic Cartoning Machine With Long Life
Product Details:
Place of Origin: | China |
Brand Name: | LTPM CHINA |
Certification: | CE |
Model Number: | ZH-120 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negociation |
Packaging Details: | Wooden Case |
Delivery Time: | In 25 days after receiving the deposit |
Payment Terms: | 30% TT as deposit and 70% before shipping |
Supply Ability: | 25 sets |
Detail Information |
|||
Encasing Speed: | 30-120 Boxes/min | Carton Gram Requirements: | 250-350g/m3 |
---|---|---|---|
Power: | 220V / 380V | Motor Power: | ≤80dB |
Air Pressure: | 0.75kw | Machine Dimension(L*W*H): | 2150mm*1140mm*1800mm |
High Light: | cartoning equipment,automatic carton packing machine |
Product Description

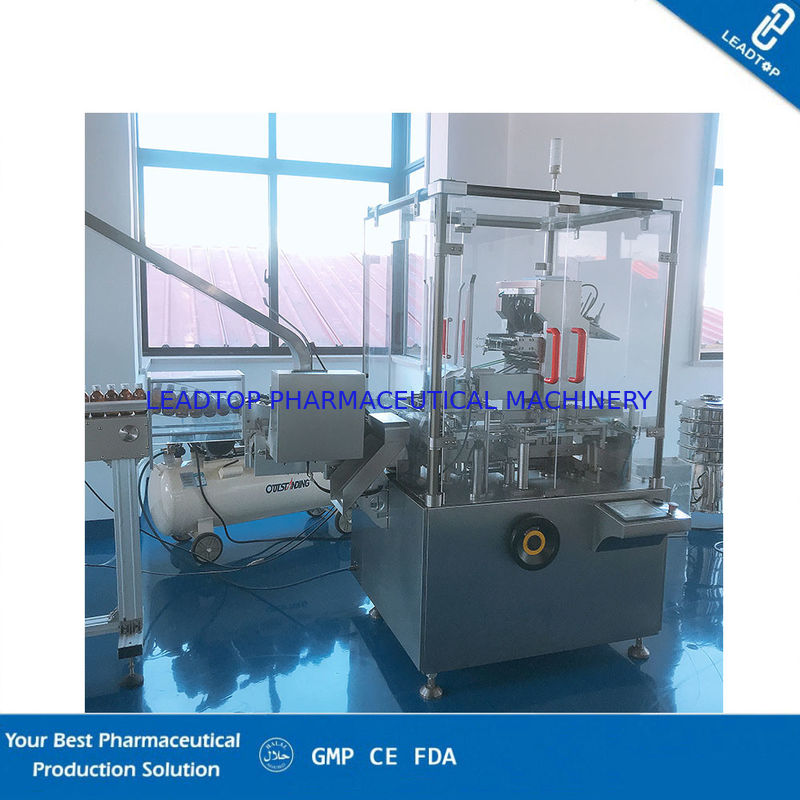

220v / 380v Power Vertical Automatic Cartoning Machine With Long Life
Wholesale China Factory Supply Automatic Vertical Cartoning Machine
1. Application:
This equipment is new model developping base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

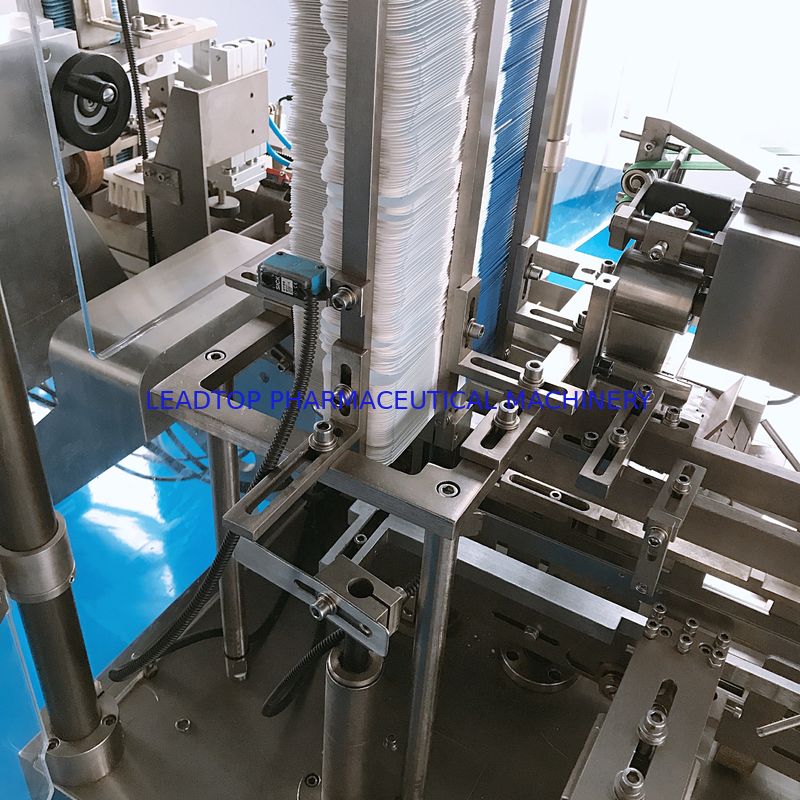

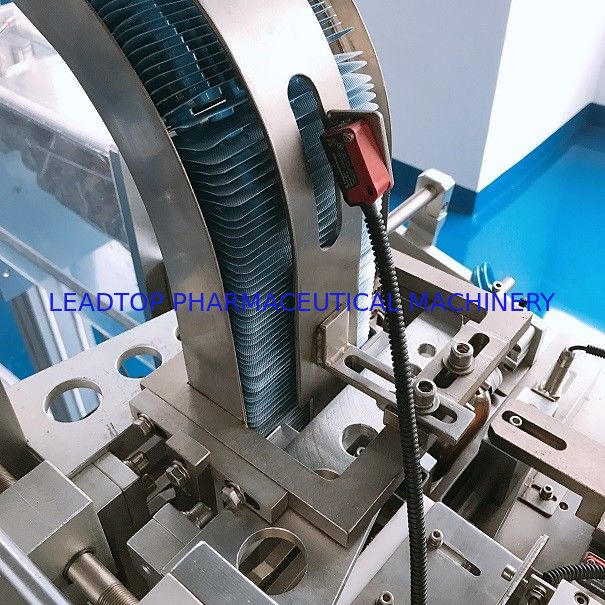

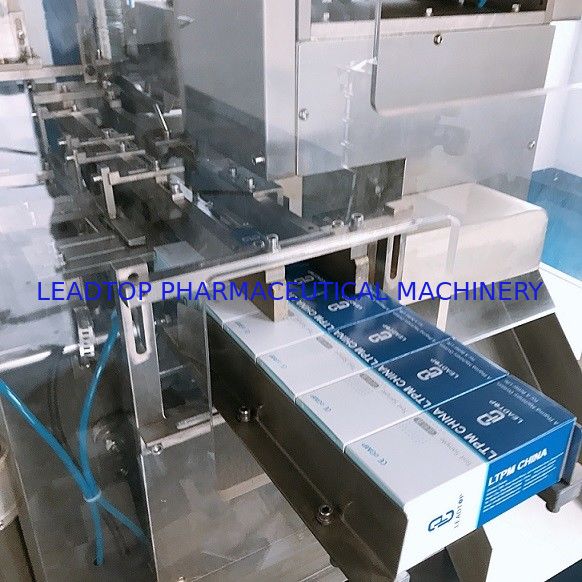

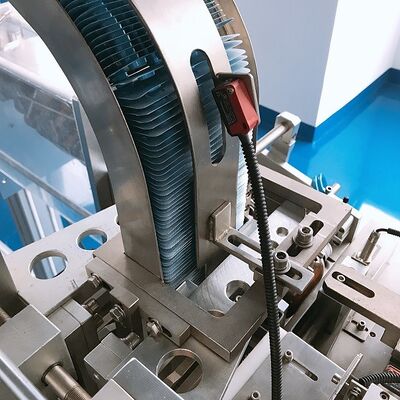

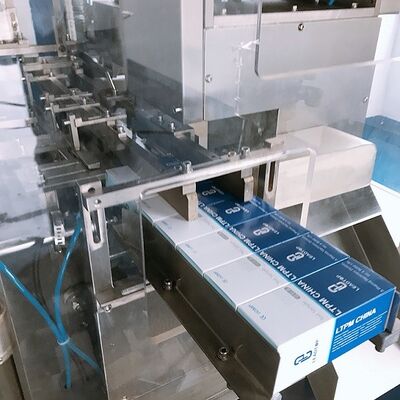

This machine is suitable for automatic feeding product of multi-variety multi-specifications into carton (either for blister or bottle).Adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly.On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.
2. Features:
1: International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2: Adopt human-machine operation system.
3: Automatically stop when machine is overload.
4: Automatically reject lacking of package product and leaflet.
5: Automatically display trouble, Alarm and count finished products.
6: Stable performance,operation is easy.
Product Parameters:
Encasing speed | 30-120 boxes/min | |
Box | Quality requirement | 250-350g/m2 |
Dimension range (L*W*H) | (65-125)mm*(30-85)mm*(12-50)mm | |
Quality requirement | 60-70g/m2 | |
Leaflet | Unfolded leaflet specification (L*W) | (80-250)mm*(90-170)mm |
Fold range | (1-4) fold | |
Compressed air | Working pressure | ≥0.6mpa |
Air consumption | 120-160L/min | |
Power | 220V/380V | |
Motor power | 0.75kw | |
Machine dimension(L*W*H) | 2150mm*1140mm*1800mm | |
Machine weight | 1100kg |
