Auto Pill Counter Machine For American Health Products / Cod Liver Oil / Soft Capsules

Auto Pill Counter Machine For American Health Products / Cod Liver Oil / Soft Capsules

automatic tablet counting machine

capsule counting machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP, SGS, BV

Model Number:

LTEC-16

Contact Us

Request A Quote
Product Details
Usage:
Capsule,tablets,gums,rubber,etc.
Power:
220v 50hz Single Phase
Transmission:
Electronic
Capacity:
200000pcs/h
Brand:
LeadTop
Line Length:
Optional
Product Description

Automatic Electronic Tablet Capsule Counting Machine

For American Health Products, Cod Liver Oil, Soft Capsules

Simple Instruction

The machine delivers medicine smoothly and evenly in three classes of vibration. It adopts the most advanced international CCD sensitive technology, which has high resolution to make up disadvantages of common photoelectric devices many domestic manufacturers use. CCD can counteract dust accumulated on the fluorescent screen and adjust work state automatically to ensure accuracy of counting. Its air regulator ensures reliability and stability of pneumatic components in work. Self-diagnostic system monitors the whole running process of the equipment to further guarantee correctness of counting. The machine also has inspection function that can detect broken medicine. The machine not only has reliable running but fast and easy changeover. Its control system can store working parameters of various medicaments and its human machine interface is user-friendly. Generally operators can grasp fluently.

Feature:

1. Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;

2. Vibrating Hopper with guide way;

3. Machine stops automatically when out of bottle, and automatically rejected if wrong counting quantity.

4. Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;

5. To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;

6. English control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;

7. Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.

8. Control chip imported to the United States, photoelectric sensors for Taiwan's imports.



Main Technical Data
Model LTEC-12 LTEC-16 LTEC-24 LTEC-32
Slide wheel 12 Channels 16 Channels 24 Channels 32 Channels
Size of Object Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule
Size of bottles 20-300ml
The diameter for bottles mouth 20-80mm
Output 4,000pcs/min 6,000pcs/min 8,000pcs/min 10,000pcs/min
Capacity 40bottles/min 60bottles/min 80bottle/min 100bottles/min
Power 0.9KW 0.9KW 1.35KW 1.35KW
Power supply 220V 60HZ
Air pressure 6kgs/c
Overall dimensions(mm) 1700×1700×1900 2000×1700×1900 2800×1700×1900 3200×1700×1900

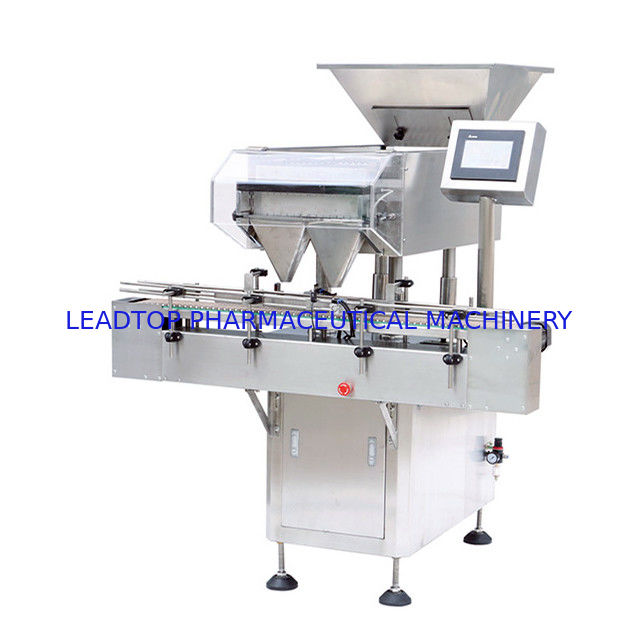

Auto Pill Counter Machine For American Health Products / Cod Liver Oil / Soft Capsules 0

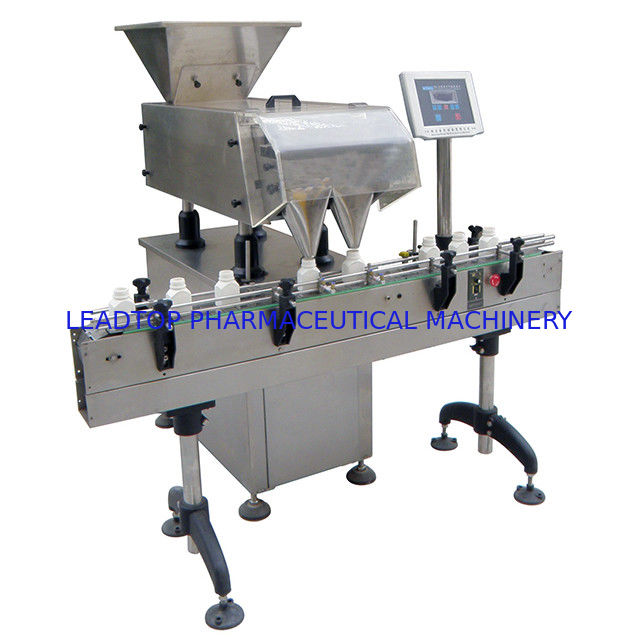

Auto Pill Counter Machine For American Health Products / Cod Liver Oil / Soft Capsules 1
