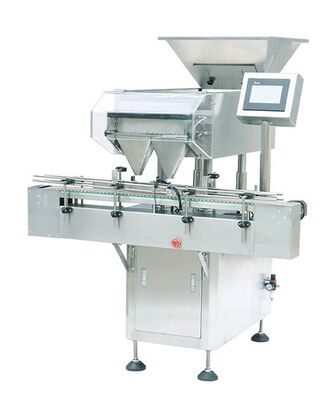

Single Phase Semi Automatic Capsule Counting Machine / Tablet Counter
Electronic Tablet Capsule Counting And Filling Machine
The number of capsule counted can be arbitrarily set up among 0~9999.
Stainless steel material for whole machine body can meet with GMP specification.
Easy to operate and no special training required.
Precision pellet count with special electrical eye protection device.

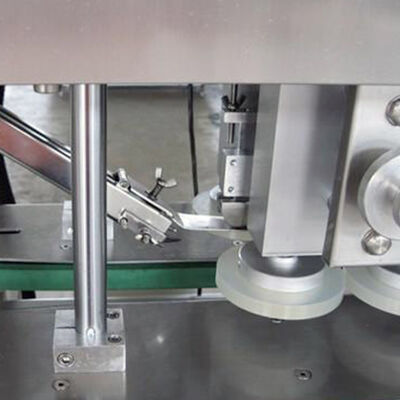

Rotary counting design with fast and smooth operation.
Vibration feeding design, the vibration frequency of the particle hopper can be
adjusted with stepless based on the needs of the medical pellet out put.
1: Times to change the mold: 5---8 minutes
2, Product capacity : 200000 pcs/hour
3, Capsule size : 000#,00L#,00#,0#,1#,2#,3#,4#, 5#
4 , Max bottle diameter 130mm
5, Power: 220V, 50Hz, 1 Phase
6, Total Power 1.2kw
7, Air pressure 0.03m3/min 0.7Mpa
8, Vacuum Pump: Absorb Rate : 40m3/h
9, Overall Size :(L×W×H): 1200×500×1400 mm
10, Packing Size:(L×W×H): 1280×600×1150m m
11, Net Weight : 90kg
12, Gross Wight: 140kg
Our electronic counting machine is suitable for tablets, capsules, American health products, cod liver oil, soft capsules
